SELECT A DIAGRAM

01 - Cabinet Top & Control Hood Rear Panel

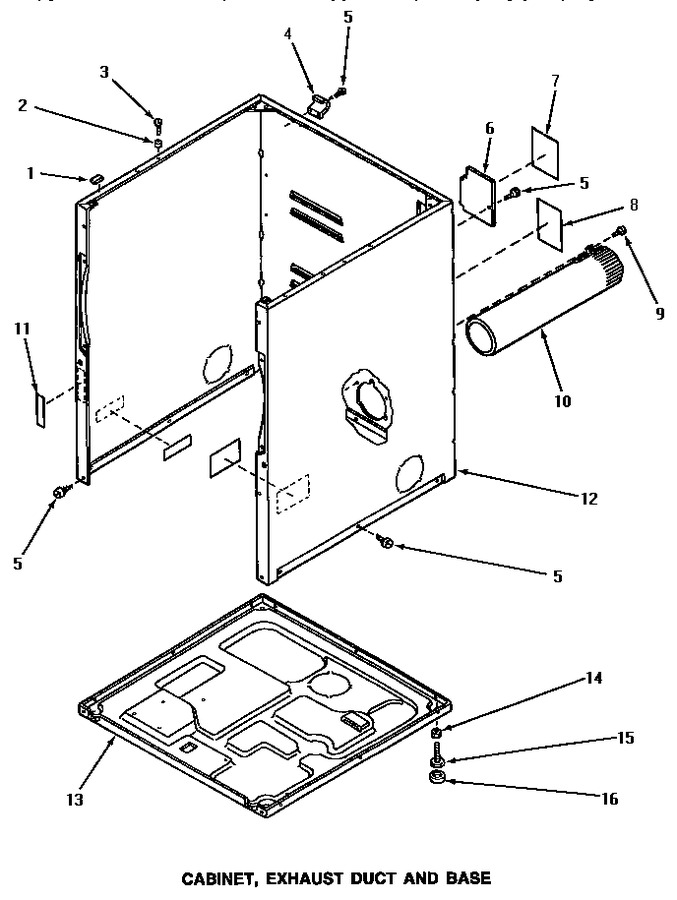

02 - Cabinet, Exhaust Duct & Base


03 - Fr Blkhd, Air Duct, Felt Seal & Cylinder


04 - Graphic Panel, Control Hood & Controls


05 - Heater Box (starting Sn S6271976xg)


06 - Heater Box (thru Sn S6271975xg)


07 - Loading Door, Front Panels & Access Door


08 - Motor, Exhaust Fan & Belt


09 - Power Cord & Terminals


10 - Rear Blkhd, Felt Seal & Cylinder Roller


11 - Terminal Block (starting Sn S6271976xg)


12 - Terminal Block (thru Sn S6271975xg)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	56128		Pad, Bumper   (Replaces: Y56128)				$ 6.95
2	56079		Locater, Panel			Immediately	$ 6.95
3	39733		Screw, Tapping   (Replaces: 32671)				$ 6.95
4	60826		Hinge, Top		Appelez-nous	-
5	WP27001200		Screw   (Replaces: 33562)				$ 6.91
6	60821		Acess Cover				$ 1.98
7	61206		Sticker,notice Install		Appelez-nous	-
8	58866		Sticker,warning-ground		Appelez-nous	-
9	WP489464		Screw   (Replaces: Y33561)			Immediately	$ 7.05
10	56118		Assy, Exhaust Duct		Appelez-nous	-
11	24903		Sticker,disconnect Pow		Appelez-nous	-
12	60813PL		Cabinet, Almond		Appelez-nous	-
12	60813PH		Cabinet, Harvest Gold		Appelez-nous	-
12	60813PW		Cabinet, White		Appelez-nous	-
13	60811		Assy,base-complete		Appelez-nous	-
14	WP62739		Nut,hex 3/8-16   (Replaces: 20274)				$ 6.85
15	WP233550		Foot,adjustable   (Replaces: Y52696)				$ 7.16
16	70282		Foot,rubber		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
