SELECT A DIAGRAM

01 - Cabinet Top & Control Hood Rear Panel


02 - Cabinet, Exhaust Duct & Base


03 - Fr Blkhd, Air Duct, Felt Seal & Cylinder

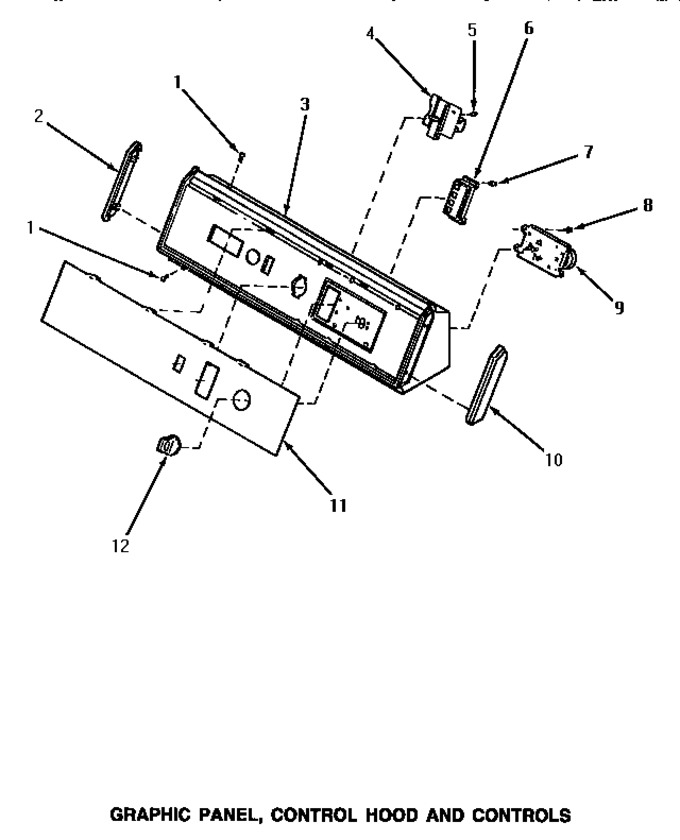

04 - Graphic Panel, Control Hood & Controls


05 - Heater Box (starting Sn S6271976xg)


06 - Heater Box (thru Sn S6271975xg)


07 - Loading Door, Front Panels & Access Door


08 - Motor, Exhaust Fan & Belt


09 - Power Cord & Terminals


10 - Rear Blkhd, Felt Seal & Cylinder Roller


11 - Terminal Block (starting Sn S6271976xg)


12 - Terminal Block (thru Sn S6271975xg)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31752		Screw,no.8abx3/4 Pozidri		Appelez-nous	-
2	31249		Cap,end-l.h.-chrome		Appelez-nous	-
3	59936		Assy,hood & Mounting P		Appelez-nous	-
4	59822		Signal,slide-blk/blu		Appelez-nous	-
5	31260		Screw, No.8 X 3/8 Ind H				$ 2.68
6	59618		Assy,switch & Cover-sq		Appelez-nous	-
7	WP489464		Screw   (Replaces: Y33561)			Immediately	$ 7.05
8	WP90767		Screw   (Replaces: Y59616)			Immediately	$ 7.04
9	59421		Timer, 5 Cycle		Appelez-nous	-
10	31248		Cap,end-r.h.-chrome		Appelez-nous	-
11	59486		Panel,graphic		Appelez-nous	-
12	59793		Assy,timer Knob & Skirt		Appelez-nous	-
	NOTE:		If Dryer Is Installed In A Manufactured (mobile) Home, Or If Local Codes Do Notpermit Grounding Through The Neutral, This Wire Will Not Be On The Dryer. See I		Appelez-nous	-
