SELECT A DIAGRAM

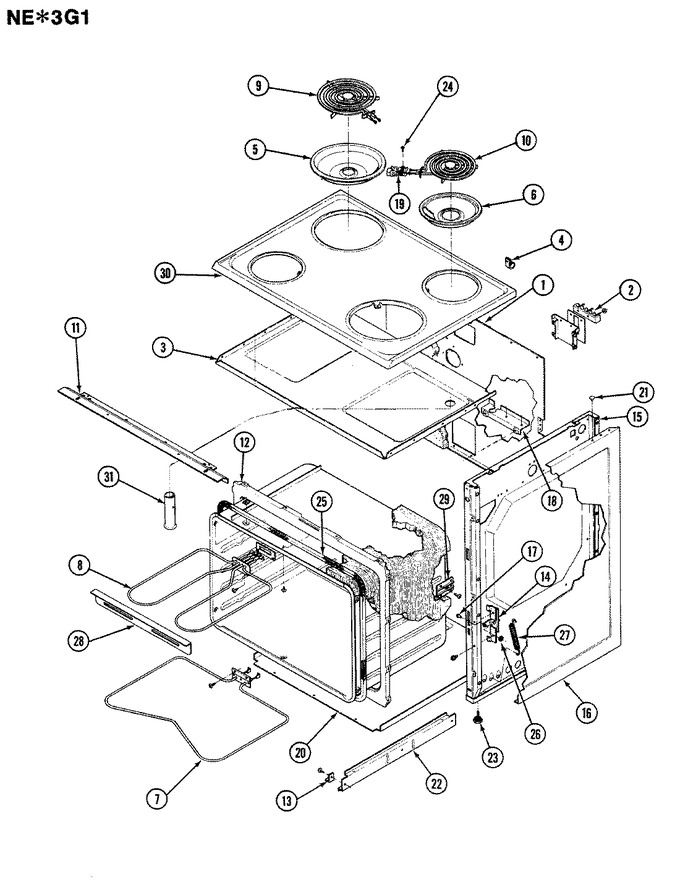

01 - Body
02 - Control Panel
03 - Door/drawer
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F092-80 | Back, Main | 1 |
|
- | ||||
| 2 | WPW10245259 | Block, Terminal (Replaces: 7401P002-60) | 1 |
|
Immediately | $ 31.65 | |||
| 3 | 8010P048-60 | Spacer, Main Top | 1 |
|
- | ||||
| 3 | 4011F128-23 | Bottom, Burner Box | 1 |
|
- | ||||
| 3 | 3802F003-80 | Brace | 1 |
|
- | ||||
| 3 | 3802F029-80 | Brace, Main Top | 1 |
|
- | ||||
| 3 | 3801F101-80 | Bracket, Tie Down | 1 |
|
- | ||||
| 4 | 7112P030-60 | Clip, Top Retainer | 1 |
|
- | ||||
| 4 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 1 |
|
Immediately | $ 11.07 | |||
| 4 | 7111P002-60 | Clamp, Wire 3/4 | 1 |
|
- | ||||
| 4 | 4005F013-80 | Shield | 1 |
|
- | ||||
| 4 | 4005F005-45 | Cover | 1 |
|
- | ||||
| 5 | WPW10196405 | Bowl, Drip (8``) (Replaces: 7725P014-60) | 28 |
|
Immediately | $ 15.56 | |||
| 5 | WPW10196405 | Bowl, Drip (8``) (Replaces: 7725P001-60) | 1-27 |
|
Immediately | $ 15.56 | |||
| 6 | WPW10196406 | Bowl, Drip (6``) (Replaces: 7725P002-60) | 1-27 |
|
Immediately | $ 12.05 | |||
| 6 | WPW10196406 | Bowl, Drip (6``)(w/hole-chr) (Replaces: 7725P015-60) | 28 |
|
Immediately | $ 12.05 | |||
| 7 | WPY04000041 | Element,bake (Replaces: 7406P010-60) | 1 |
|
$ 133.20 | ||||
| 8 | WPY04000048 | Element,broil (Replaces: 7406P003-60) | 1 |
|
$ 160.58 | ||||
| 9 | WPY04000035 | Element (8``) (Replaces: 7406P040-60) | 20 |
|
$ 160.60 | ||||
| 9 | WPY04000035 | Element, Giant Surface (Replaces: 7406P014-60) | 1-19 |
|
$ 160.60 | ||||
| 10 | WPY04000036 | Element (6``) (Replaces: 7406P038-60) | 20 |
|
$ 88.70 | ||||
| 10 | WPY04000036 | Element, Std. Surface (Replaces: 7406P017-60) | 1-19 |
|
$ 88.70 | ||||
| 11 | 4012F007-80 | Frame, Burner Box | 1 |
|
- | ||||
| 12 | 2201F032-23 | Front, Frame Oven | 1 |
|
- | ||||
| 13 | 8016P004-60 | Glide, Drawer | 1 |
|
- | ||||
| 13 | 8016P005-60 | Glide, Front | 1 |
|
- | ||||
| 14 | 3418F029-34 | Hinge, Oven Door (lt) | 1 |
|
- | ||||
| 14 | 3413F002-23 | Insert, Broil Pan | 1 |
|
- | ||||
| 14 | 3418F030-34 | Hinge, Oven Door (rt) | 1 |
|
- | ||||
| 15 | 4009W029-80 | Lining Assy, Inner Side | 1 |
|
- | ||||
| 15 | 4396923 | Pan, Broil (Replaces: 3401F004-23) | 1 |
|
Immediately | $ 52.04 | |||
| 16 | 2618F052-74 | Panel, Side (alm) | 1 |
|
- | ||||
| 17 | 7113P002-60 | Pin, Hinge | 1 |
|
$ 9.05 | ||||
| 18 | 3605F148-80 | Plate, Conduit | 23 |
|
- | ||||
| 18 | 3605F031-80 | Plate, Conduit | 1-22 |
|
- | ||||
| 18 | 7801P030-60 | Rack, Oven | 1 |
|
$ 57.14 | ||||
| 19 | 330031 | Block, Surface Unit (Replaces: 7401P014-60) | 1 |
|
Immediately | $ 14.48 | |||
| 20 | 3804F093-80 | Retainer, Bottom Ins. | 1 |
|
- | ||||
| 21 | 7107P017-60 | Rivet | 1 |
|
- | ||||
| 22 | 3406F007-80 | Runner, Outer | 1 |
|
- | ||||
| 22 | 3406F020-80 | Runner, Inner | 1 |
|
- | ||||
| 23 | W10124350 | Not Required Part Or See Note | 1-22 |
|
- | ||||
| 23 | WP7101P126-60 | Screw (Replaces: 7101P057-60) | 23 |
|
Immediately | $ 6.85 | |||
| 23 | 7101P029-60 | Screw, Special | 1 |
|
- | ||||
| 23 | 7101P101-60 | Screw, Thermostat | 1 |
|
- | ||||
| 24 | WP74004005 | Screw (Replaces: 7101P042-60) | 1 |
|
$ 6.95 | ||||
| 25 | 7212P002-60 | Seal, Oven | 1 |
|
- | ||||
| 26 | 7112P019-60 | Clip, Hinge Pin | 1 |
|
- | ||||
| 27 | 7803P013-60 | Spring | 1 |
|
- | ||||
| 28 | 3807F176-15 | Support, Broil Element | 1 |
|
- | ||||
| 29 | 3807F205-45 | Support, Oven Rear | 1 |
|
- | ||||
| 30 | 2002W031-94 | Top Assy, Main Almond | 1 |
|
- | ||||
| 31 | 8026P003-60 | Tube, Oven Vent | 1 |
|
- |
