SELECT A DIAGRAM
01 - Body

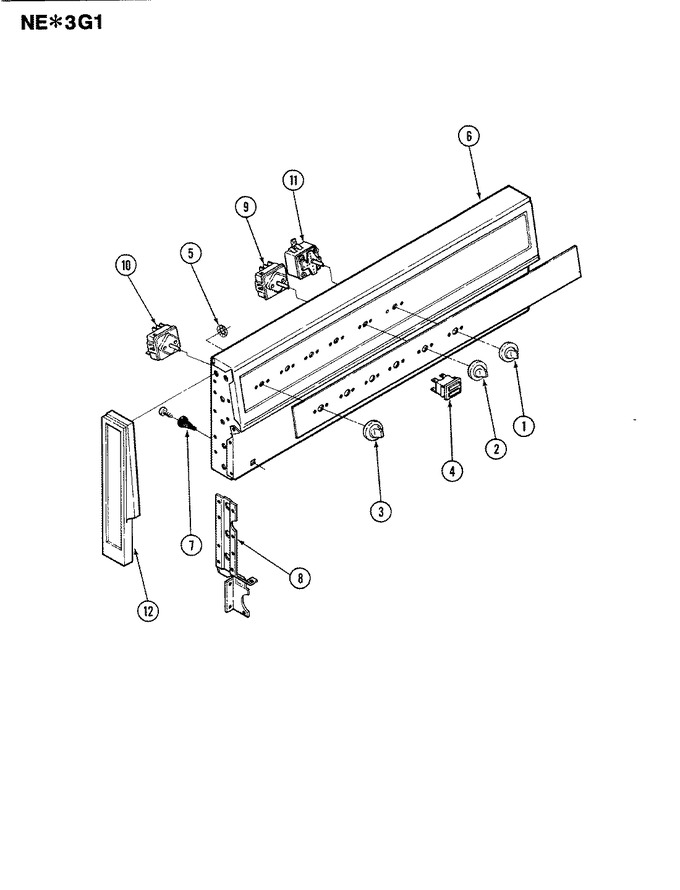

02 - Control Panel
03 - Door/drawer
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7711P311-60 | Knob, Thermostat | 1 |
|
$ 6.43 | ||||
| 2 | 7711P131-60 | Knob, Switch | 1 |
|
- | ||||
| 3 | 7711P132-60 | Knob, Switch | 1 |
|
- | ||||
| 4 | 7407P015-60 | Light, Indicator | 1 |
|
- | ||||
| 5 | 7103P053-60 | Nut, Push-on End Cap | 1 |
|
- | ||||
| 6 | 2601W298-84 | Panel, Bkgd Alm | 25 |
|
- | ||||
| 6 | 7718P009-60 | Plug, Hole | 1-24 |
|
- | ||||
| 6 | 2601W152-84 | Bkgd, Assy | 1-24 |
|
- | ||||
| 6 | 4005F004-20 | Cover, Bkg Wire | 1 |
|
- | ||||
| 7 | 7105P002-60 | Support, Main Top | 1 |
|
- | ||||
| 8 | 3807F012-80 | Support | 1 |
|
- | ||||
| 8 | 3807F010-80 | Support | 1 |
|
- | ||||
| 9 | 7403P031-60 | Switch, Selector | 1 |
|
- | ||||
| 10 | W11122006 | Switch, Inf. Control (Replaces: 7403P168-60) | 1 |
|
$ 145.12 | ||||
| 11 | 7404P029-60 | Thermostat | 1 |
|
- | ||||
| 12 | 7726P009-60 | End Cap, Backguard (lt-blk) | 1 |
|
- | ||||
| 12 | 7726P020-60 | End Cap, Backguard (rt-blk) | 1 |
|
- |
