MRS24WHBW0 | TransGlobal : Appliance Model Lookup

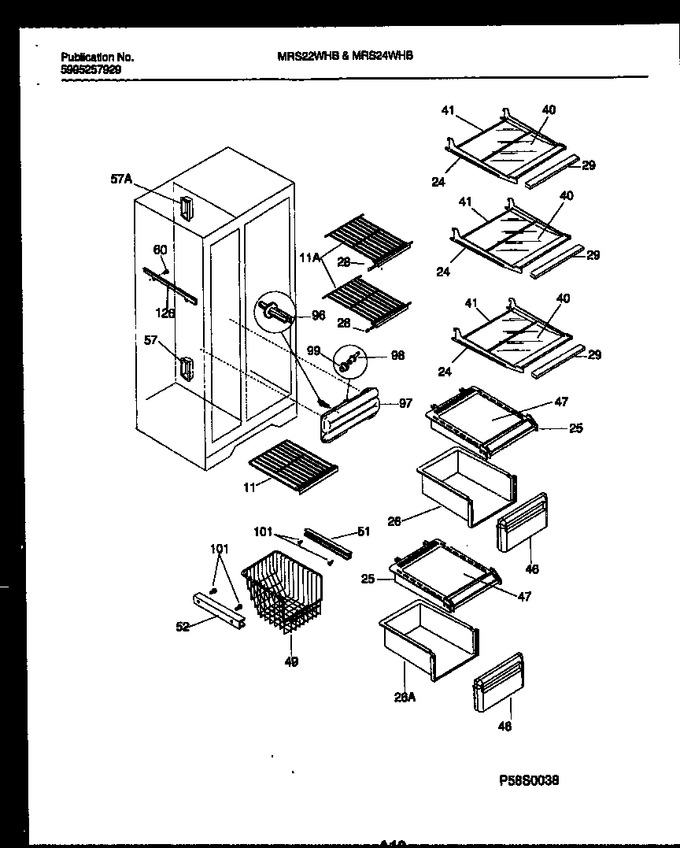

Diagram #	Part Number	Description	Availability	Ships	Price
11	5303296574	Shelf-freezer, Sliding Wire	Appelez-nous	-
24	215919139	Frame-refr Shelf, Cantilever			$ 94.03
25	218147701	Cover-storage Pan,upper & Lower			$ 123.56
26	5303289500	Pan-storage,upper			$ 174.74
28	08013638	Cap-protector	Appelez-nous	-
29	215919515	Trim, Refr Shelf, Front, (3)	Appelez-nous	-
40	5303300033	Glass, Refr Shelf, (3)	Appelez-nous	-
41	215919815	Trim, Refr Shelf, Rear, (3)	Appelez-nous	-
46	215042024	Front, Storage Pan, Upper & Lower, (2)	Appelez-nous	-
47	5303289387	Insert-pan Cover,glass,clear	Appelez-nous	-
49	5303296573	Basket-sliding	Appelez-nous	-
51	5303296575	Hanger-basket, Rh			$ 49.78
52	215162502	Hanger, Basket, Lh, With Spring			$ 101.35
57	5303271653	Ferrule-inner			$ 20.27
60	5304455852	Screw, Hex Washer Head, 8-15(a) X 1 (Replaces: 5303207328)			$ 12.76
96	215192600	Support - Water Tank			$ 10.71
97	5303918258	Water Tank Assy, Includes Tank, Grommets, Connectors (Replaces: 215230300)			$ 121.63
98	5308015614	Connector - Tube			$ 34.57
99	5300186057	Grommet-tank			$ 28.98
101	5304455650	Screw-basket Hanger, Hex Washer Head, 8ab X 3/4 (Replaces: 215005000)			$ 14.18
126	215205400	Rail-auger Bucket,lh			$ 64.00
*11034	215339900	Clip, Cantilevr Shlf			$ 5.83
11A	5303296576	Shelf-freezer, Fixed Wire ,(2)	Appelez-nous	-
11A	218159700	Spacer-frzr Shelf (non-illustrated)	Appelez-nous	-
126A	218232700	Rail-auger Bucket,rh (non-illustrated)			$ 44.05
25A	5303289586	Trim-storage Pan Cvr (non-illustrated)	Appelez-nous	-
26A	5303289501	Pan-storage,lower			$ 164.85
47A	215530500	Insert-pan Cover, Plastic, White (non-illustrated)	Appelez-nous	-
57A	5303289034	Ferrule-air			$ 188.84
