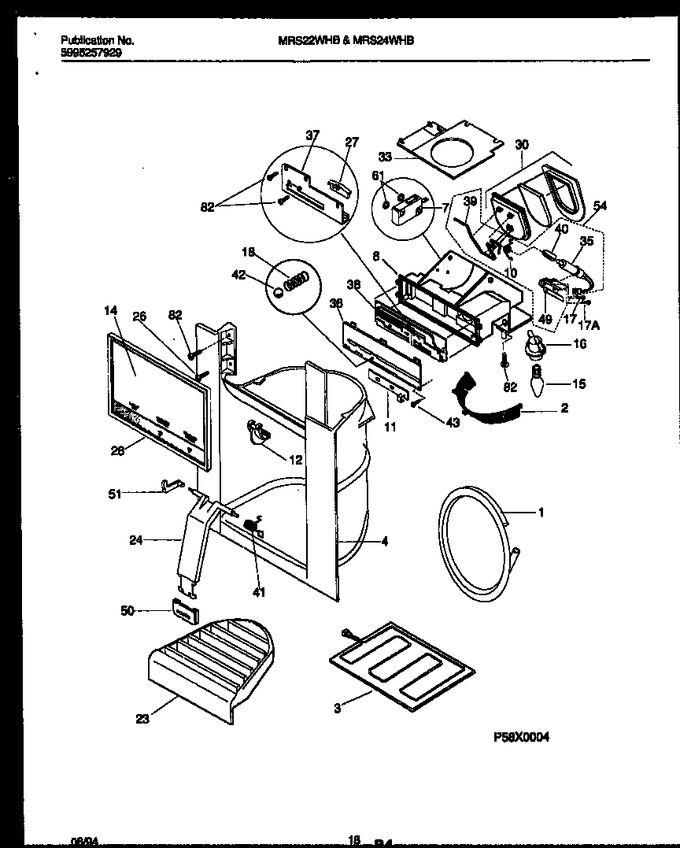

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5318582501		Tube-water Inlet, 93``, Plastic, Cut To Size		Appelez-nous	-
1	215294101		Tube-water Inlet,formed,plastic,dispenser				$ 91.25
2	215732101		Deflector-ice Disp,white		Appelez-nous	-
3	215484300		Heater-door Housing				$ 40.85
4	215922301		Housing-dispenser, White				$ 140.86
7	218284800		Switch-actuator,micro		Appelez-nous	-
8	215763501		Module - Dispenser		Appelez-nous	-
10	218209800		Spring,dispenser Door		Appelez-nous	-
11	215253300		Slide - Selector Sw				$ 30.80
12	215627201		Knob - Selector, White		Appelez-nous	-
14	215475100		Label, Module Cover, White		Appelez-nous	-
15	218284900		Light Bulb / Lamp, 4w, 115v		Appelez-nous	-
16	240548901		Socket-light/lamp   (Replaces: 215284900)				$ 63.70
17	215794400		Screw,6 X 1/4		Appelez-nous	-
18	215760200		Spring		Appelez-nous	-
23	215447001		Drip Tray, White				$ 63.53
24	215918001		Actuator, White		Appelez-nous	-
26	215503203		Screw,hilo Phil Pn Hd,10 X 1/2   (Replaces: 215503200)			Immediately	$ 7.09
27	215254700		Cam-slide		Appelez-nous	-
28	215447101		Cover-module, White		Appelez-nous	-
30	215753600		Door Assy-ice,w/gasket,insul		Appelez-nous	-
33	215851100		Heater-disp Throat		Appelez-nous	-
35	218284700		Heat Motor,115v		Appelez-nous	-
36	215254400		Cover-selector Sw		Appelez-nous	-
37	215763400		Guide-cam		Appelez-nous	-
38	215894602		Pc Board		Appelez-nous	-
39	218284600		Wire-ice Door		Appelez-nous	-
40	218284500		Yoke-heat Motor				$ 35.01
41	215917800		Spring-actuator				$ 10.03
42	215756000		Ball		Appelez-nous	-
43	215760300		Screw,4 X 3/8				$ 9.35
49	215794000		Bracket-heat Motor				$ 34.81
50	215918101		Pad, Actuator, White		Appelez-nous	-
51	215922200		Cam-switch				$ 13.28
54	5303917444		Heat Motor Kit, 115v		Appelez-nous	-
61	215766000		Ring-retainer,micro Switch				$ 34.40
17A	215840700		Screw,truss Head,6-20 X 3/8		Appelez-nous	-
38A	215630800		Washer, Ext Tooth Lock, Light Switch, (non-illustrated)		Appelez-nous	-
38B	215631000		Nut, Hex, Light Switch (non-illustrated)		Appelez-nous	-
38C	215763900		Cap-light Switch (non-illustrated)		Appelez-nous	-
