Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 16026881 Tech Sheet Appelez-nous -
1 W10161760 Installation, Instruction Appelez-nous -
1 W10161016 Use & Care Guide Appelez-nous -
2 6006-00174 Screw-tapping (2) Appelez-nous -
3 W10175952 Button, Power Special Order $ 34.13

4 W10177362 Panel-console Assembly Appelez-nous -
5 35001231 Bracket, Panel (2) Special Order $ 8.10

6 35001229 Panel-control Appelez-nous -
7 34001419 Lever-power Appelez-nous -
8 6002-000470 Screw-tapping (4) Special Order $ 0.85

9 35001269 User Interface Special Order $ 276.31

10 6002-000213 Screw-tapping In-Stock Immediately $ 0.93

11 35001232 Support - Panel Appelez-nous -
12 35001162 Frame-plate Appelez-nous -
13 6006-001170 Screw-tapping Special Order $ 0.85

14 W10177364 Top Appelez-nous -
15 6009-001476 Screw-hex (2) Special Order $ 1.66

16 W10175949 Knob, Control Appelez-nous -
17 35001262 Harness, Main Special Order $ 172.11

18 555555 Screw-tapping (5)   (Replaces: 6002-000231) Special Order $ 151.94


    View Diagram in Separate Window     Print Icon   Print Part List

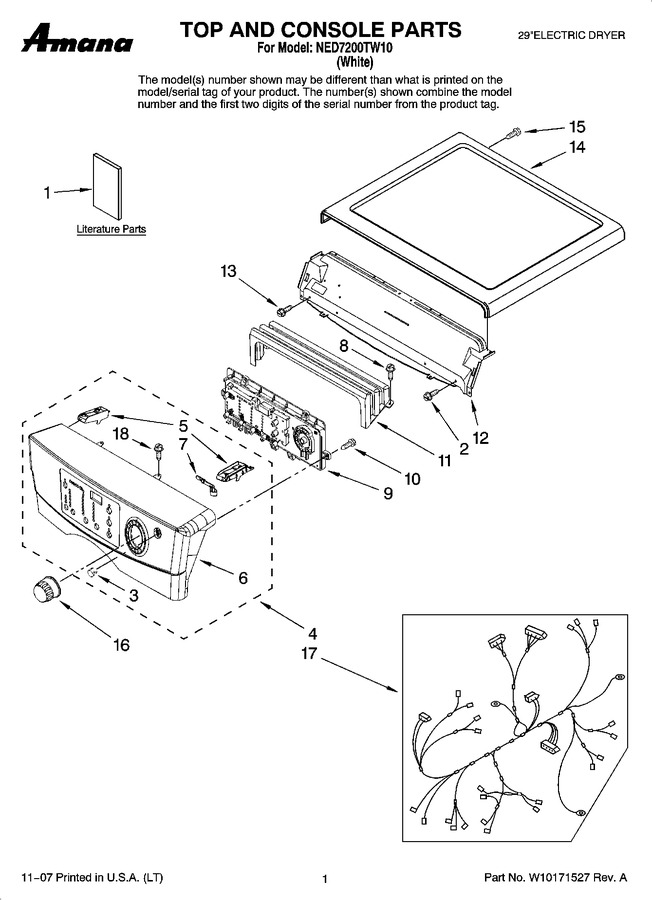

Diagram for NED7200TW10
