01 - Top And Console Parts


02 - Cabinet Parts

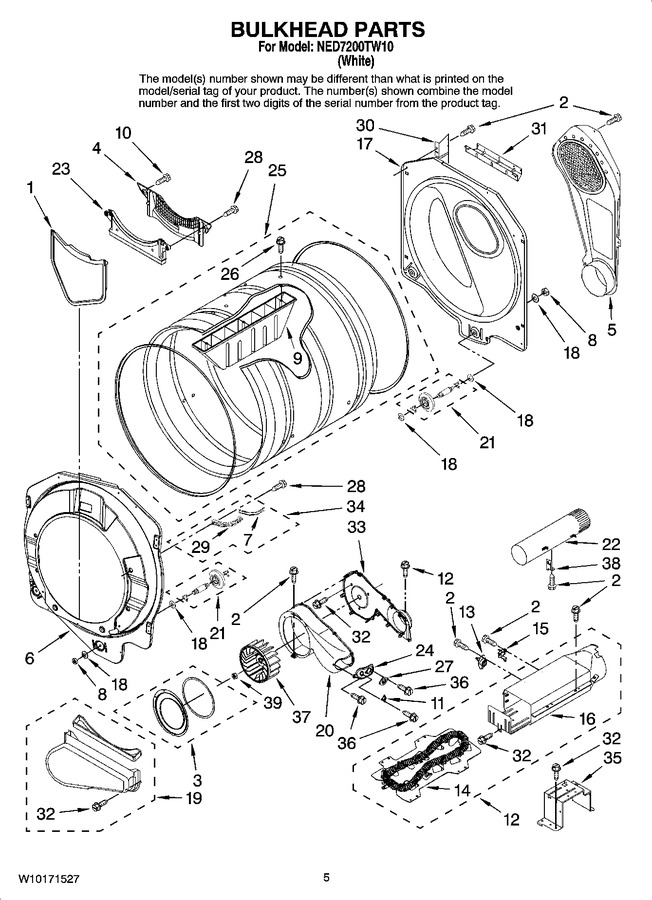

03 - Bulkhead Parts


04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10177426		Screen, Lint		Appelez-nous	-
2	6002-000239		Screw-tapping			Immediately	$ 1.66
3	35001246		Cover-plate Assembly		Appelez-nous	-
4	35001243		Grille-outlet		Appelez-nous	-
5	DC97-07521A		Air Duct Assembly   (Replaces: 35001135)				$ 124.52
6	35001244		Bulkhead, Front				$ 127.82
7	35001241		Plate-sensor				$ 27.95
8	23001661		Nut-hex   (Replaces: 35001132)				$ 15.61
9	35001131		Baffle-drum				$ 16.73
10	34001214		Screw-tapping		Appelez-nous	-
11	WP35001087		Thermostat   (Replaces: 35001087)			Immediately	$ 59.90
12	WPW10222771		Assembly, Heater Box   (Replaces: 35001119)			Immediately	$ 180.05
13	35001092		Thermostat				$ 55.89
14	WP35001247		Element, Heater   (Replaces: 35001247)			Immediately	$ 100.94
15	WP35001193		Assembly-bracket Thermostat   (Replaces: 35001193)			Immediately	$ 39.33
16	35001109		Box, Heater				$ 81.95
17	W10177410		Bulkhead, Rear		Appelez-nous	-
18	DC60-60060A		Washer, Support   (Replaces: 35001133)				$ 3.23
19	35001140		Assembly, Lint Duct		Appelez-nous	-
20	555555		Housing-blower Front   (Replaces: 35001089)				$ 151.94
21	WPW10177428		Assembly, Roller-support   (Replaces: W10177428)			Immediately	$ 61.65
22	34001159		Exhaust Pipe		Appelez-nous	-
23	555555		Housing, Outlet   (Replaces: 35001144)				$ 151.94
24	35001105		Bracket-thermistor				$ 38.82
25	W10177409		Assembly, Drum				$ 305.18
26	6002-000215		Screw-tapping			Immediately	$ 1.66
27	35001191		Thermistor				$ 46.43
28	W11233072		Screw-tapping   (Replaces: 6002-001320)			Immediately	$ 12.62
29	35001242		Guide-sensor				$ 29.65
30	35001146		Channel Bracket, Rear Bulkhead (2)				$ 30.77
31	35001145		Bracket, Upper Rear Bulkhead		Appelez-nous	-
32	555555		Screw-tapping   (Replaces: 6002-000231)				$ 151.94
33	35001088		Blower-housing Rear		Appelez-nous	-
34	35001245		Guide-sensor Assembly				$ 67.85
35	DC61-01224A		Bracket, Heater-box   (Replaces: 35001104)				$ 62.22
36	6002-00470		Screw-tapping		Appelez-nous	-
37	35001220		Wheel- Blower				$ 62.00
38	35001155		Clip-exhaust		Appelez-nous	-
39	35001079		Nut-inch				$ 11.48
