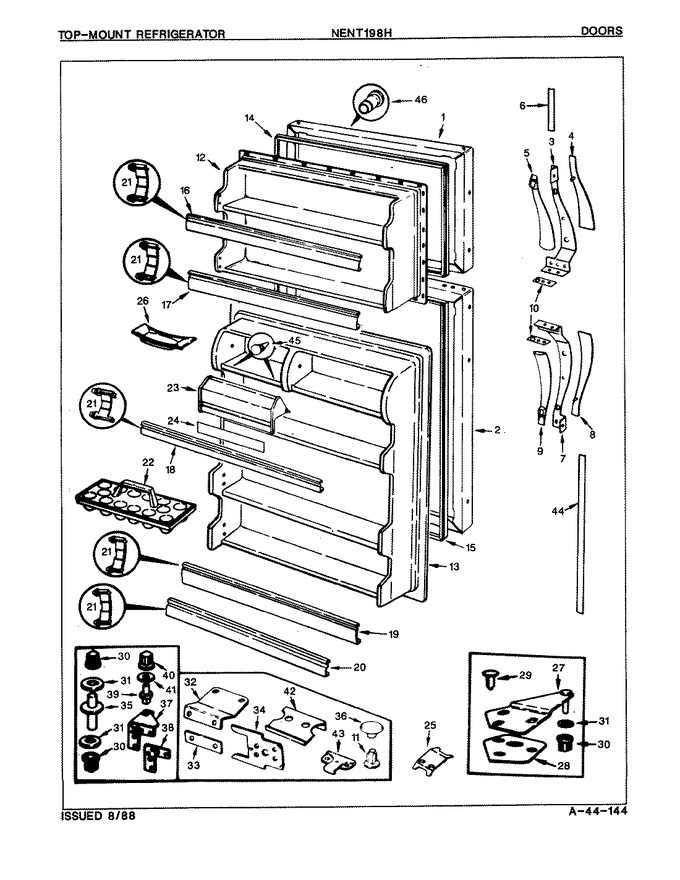

SELECT A DIAGRAM

01 - Doors


02 - Freezer Compartment


03 - Fresh Food Compartment


04 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60033-54-AM		Outer Panel		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	495042-900		Plug Button		Appelez-nous	-
2	60032-54-AM		Outer Panel		Appelez-nous	-
3	66255-1		Door Handle		Appelez-nous	-
4	66145-3		Insert, Door Handle		Appelez-nous	-
5	60445-1		Insert		Appelez-nous	-
6	60453-10		Handle Ext		Appelez-nous	-
7	9986-122		Screw		Appelez-nous	-
7	66255-2		Door Handle		Appelez-nous	-
8	9986-112		Screw		Appelez-nous	-
8	66145-3		Insert, Door Handle		Appelez-nous	-
9	60445-1		Insert		Appelez-nous	-
10	60456-1		Shim		Appelez-nous	-
11	55782-6		Plug Button (almond)		Appelez-nous	-
12	65928-4		Liner, Door		Appelez-nous	-
13	65933-8		Liner, Door		Appelez-nous	-
13	9986-12		Screw,door Liner		Appelez-nous	-
14	66199-5		Gasket, Frz. Door		Appelez-nous	-
15	WP70048-3		Gasket, F.f. Door   (Replaces: 66199-6)				$ 283.11
16	66210-2		Trim, Shelf		Appelez-nous	-
17	WP61003045		Trim, Shelf   (Replaces: 66210-3)				$ 129.55
18	66210-12		Trim, Shelf		Appelez-nous	-
19	66210-11		Trim, Shelf		Appelez-nous	-
20	66210-2		Trim, Shelf		Appelez-nous	-
21	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
22	60066-5		Tray, Egg		Appelez-nous	-
23	60406-19		Door, Dairy		Appelez-nous	-
24	68128-8		Insert		Appelez-nous	-
25	56209-3		Clip, Stop Screw		Appelez-nous	-
26	29936-2		Tray, Butter		Appelez-nous	-
27	65003-6-AM		Cover, Top Hinge		Appelez-nous	-
28	65031-1		Shim, Upper Hinge		Appelez-nous	-
29	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
30	66036-1		Bushing,top/center Hinge		Appelez-nous	-
31	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
31	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
32	60031-2		Door Hinge, Center		Appelez-nous	-
33	60034-1		Spacer, Center Hinge		Appelez-nous	-
34	WP3-24838-048		Screw   (Replaces: 9986-107)				$ 7.00
34	60622-1		Tapping Plate		Appelez-nous	-
35	60035-4		Pin, Center Hinge		Appelez-nous	-
36	56186-6		Plug Button, (almond)		Appelez-nous	-
37	60630-8		Door Hinge, Lower		Appelez-nous	-
37	403062-5		Screw		Appelez-nous	-
38	60626-1		Shim, Lower Hinge		Appelez-nous	-
39	53672-1		Pin, Lower Hinge		Appelez-nous	-
40	66034-1		Bushing, Lower Hinge				$ 19.76
41	54233-2		Washer		Appelez-nous	-
42	60030-1		Door Stop		Appelez-nous	-
43	9986-122		Screw		Appelez-nous	-
43	60419-1		Door Stop		Appelez-nous	-
44	60453-11		Handle Ext		Appelez-nous	-
45	28272-6		Bumper, Door		Appelez-nous	-
46	65211-1		Retainer, Nameplate		Appelez-nous	-
