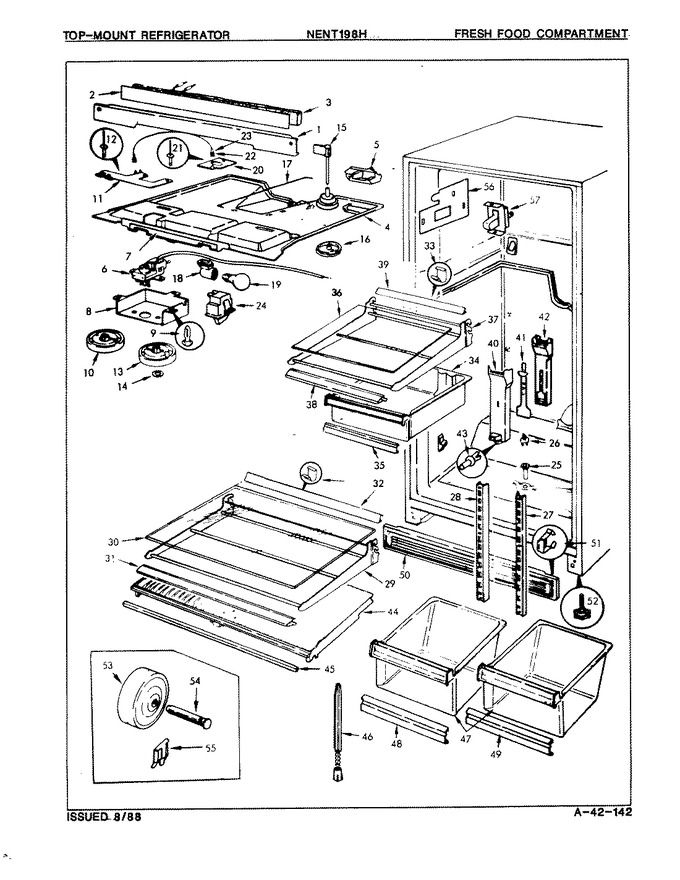

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9986-117		Screw		Appelez-nous	-
1	65797-2-AM		Divider, Mullion (alm)		Appelez-nous	-
2	60105-8		Heater Wire		Appelez-nous	-
3	60140-2		Insulation		Appelez-nous	-
3	60560-1		Wire Harness		Appelez-nous	-
4	60085-54		Top, F.f. Compartment		Appelez-nous	-
5	60120-2		Deflector		Appelez-nous	-
6	WP68601-6		Control, Temperature   (Replaces: 68119-1)			Immediately	$ 233.80
6	406013-1		Screw		Appelez-nous	-
7	60571-46		Insert		Appelez-nous	-
8	405012-1		Screw		Appelez-nous	-
8	60083-1		Cover, Temperature Control		Appelez-nous	-
9	28013-2		Rivet, Air Tunnel		Appelez-nous	-
10	68162-1		Knob		Appelez-nous	-
11	60147-1		Bracket, Control		Appelez-nous	-
12	WP210720		Rivet   (Replaces: 26397-9)				$ 12.14
13	68162-3		Knob		Appelez-nous	-
14	420092-900		Washer, Spring		Appelez-nous	-
15	66609-1		Damper		Appelez-nous	-
16	68161-3		Crank		Appelez-nous	-
17	60078-3		Rod		Appelez-nous	-
18	60577-1		Socket, Light		Appelez-nous	-
19	W11679940		Bulb, Light   (Replaces: 68123-1)			Immediately	$ 10.17
20	60147-2		Bracket, Light Socket		Appelez-nous	-
21	WP210720		Rivet   (Replaces: 26397-9)				$ 12.14
22	29675-22		Ground Wire		Appelez-nous	-
23	29675-28		Ground Wire		Appelez-nous	-
24	W11384469		Switch, Light   (Replaces: 55732-1)			Immediately	$ 33.51
24	54653-28		Cord, Switch/light		Appelez-nous	-
25	54531-8		Grommet		Appelez-nous	-
26	65039-1		Cap, Drain Tube		Appelez-nous	-
27	60096-5		Support		Appelez-nous	-
28	60096-4		Support		Appelez-nous	-
28	400037-1		Screw		Appelez-nous	-
29	60570-25		Frame, Shelf		Appelez-nous	-
30	65598-6		Glass Shelf		Appelez-nous	-
31	60524-12		Trim		Appelez-nous	-
32	65276-22		Trim		Appelez-nous	-
33	66333-1		Clip, Shelf Trim		Appelez-nous	-
34	66523-5		Pan, Meat		Appelez-nous	-
35	66230-1		Handle		Appelez-nous	-
36	65598-7		Glass Shelf		Appelez-nous	-
37	60570-7		Frame, Shelf		Appelez-nous	-
38	60414-19		Trim		Appelez-nous	-
39	65276-22		Trim		Appelez-nous	-
40	60094-15		Tunnel		Appelez-nous	-
41	60093-2		Damper, Air Tunnel		Appelez-nous	-
42	60092-1		Foam Insulator, Air Tunnel		Appelez-nous	-
43	28013-2		Rivet, Air Tunnel		Appelez-nous	-
44	60019-6		Shelf, Crisper		Appelez-nous	-
45	60454-5		Trim		Appelez-nous	-
46	12001957		Support, Crisper Shelf   (Replaces: 66105-1)				$ 3.35
47	60457-430		Pan, Crisper		Appelez-nous	-
48	66230-4		Handle		Appelez-nous	-
49	66230-4		Handle		Appelez-nous	-
50	60138-7		Kickplate		Appelez-nous	-
51	60100-1		Clip, Kickplate				$ 5.85
51	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
52	W11117769		Leg, Leveling   (Replaces: 6012-8)			Immediately	$ 16.61
53	29834-2		Wheel		Appelez-nous	-
54	29835-2		Pin, Wheel		Appelez-nous	-
55	60216-1		Clip		Appelez-nous	-
55	54653-22		Lead		Appelez-nous	-
55	54653-33		Lead		Appelez-nous	-
56	60583-1		Bracket, Switch		Appelez-nous	-
57	60585-1		Switch, Mullion Heater		Appelez-nous	-
57	60127-1		Rail, Support (lower)		Appelez-nous	-
57	60122-1		Support, Shelf (upper)		Appelez-nous	-
57	402013-1		Screw		Appelez-nous	-
