SELECT A DIAGRAM

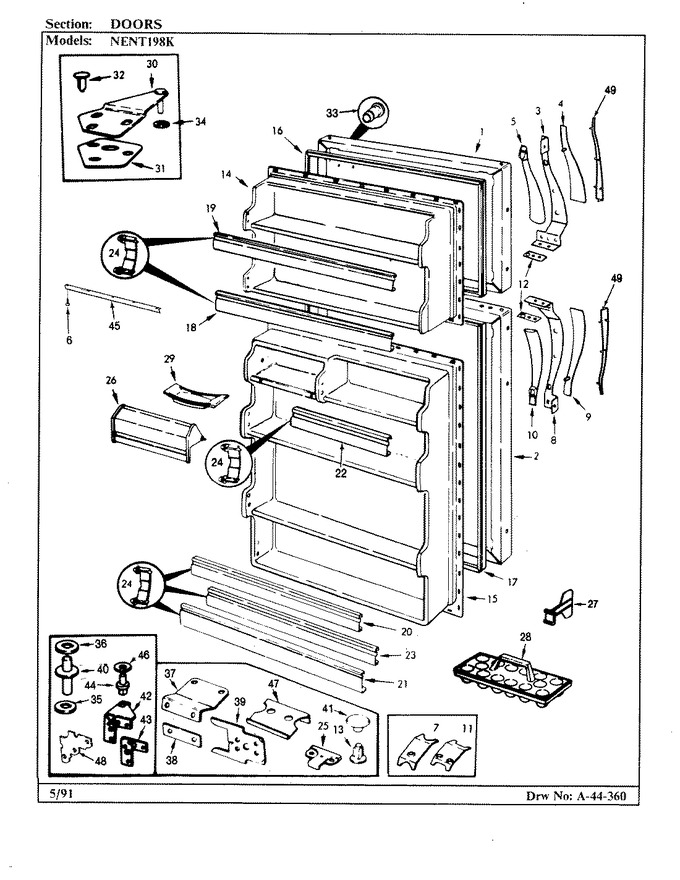

01 - Doors


02 - Freezer Compartment


03 - Fresh Food Compartment


04 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68474-2-AM		Panel, Frz. Door (alm)		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	68473-1-AM		Panel, F.f. Door (alm)		Appelez-nous	-
3	66255-1		Door Handle		Appelez-nous	-
4	68036-1		Insert		Appelez-nous	-
5	60580-3		Insert		Appelez-nous	-
6	52447-4		Clip		Appelez-nous	-
7	56209-3		Clip, Stop Screw		Appelez-nous	-
8	9986-122		Screw		Appelez-nous	-
8	66255-2		Door Handle		Appelez-nous	-
9	68036-1		Insert		Appelez-nous	-
10	60580-3		Insert		Appelez-nous	-
11	9986-112		Screw		Appelez-nous	-
12	68776-1		Shim Handle----na		Appelez-nous	-
13	55782-6		Plug Button (almond)		Appelez-nous	-
14	65928-18		Liner, Door		Appelez-nous	-
15	65275-5		Screw		Appelez-nous	-
15	68887-30		Liner, F.f. Door		Appelez-nous	-
16	66199-5		Gasket, Frz. Door		Appelez-nous	-
17	WP70048-3		Gasket, F.f. Door   (Replaces: 66199-6)				$ 283.11
18	WP61003045		Trim, Door Shelf   (Replaces: 65151-285)				$ 129.55
19	WP61003045		Trim, Door Shelf   (Replaces: 65151-286)				$ 129.55
20	WP61003045		Trim, Door Shelf   (Replaces: 65151-285)				$ 129.55
21	WP61003045		Trim, Door Shelf   (Replaces: 65151-335)				$ 129.55
22	WP61003045		Trim, Door Shelf   (Replaces: 65151-287)				$ 129.55
23	WP61003045		Trim, Door Shelf   (Replaces: 65151-132)				$ 129.55
24	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
25	60419-10		Door Stop		Appelez-nous	-
26	69058-3		Door, Dairy		Appelez-nous	-
27	64097-11		Organizer, Shelf		Appelez-nous	-
28	60066-9		Tray, Egg		Appelez-nous	-
29	29936-2		Tray, Butter		Appelez-nous	-
30	53709-20		Hinge, Upper		Appelez-nous	-
31	65031-1		Shim, Upper Hinge		Appelez-nous	-
32	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
33	29356-1		Retainer, Nameplate		Appelez-nous	-
34	54233-1		Washer				$ 7.71
35	54233-2		Washer		Appelez-nous	-
36	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
36	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
37	68811-2		Hinge, Center		Appelez-nous	-
38	68812-1		Shim, Center Hinge		Appelez-nous	-
39	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
39	65275-24		Screw		Appelez-nous	-
40	67322-1		Pin, Center Hinge		Appelez-nous	-
41	67634-3		Plug Button, Hinge Cup (alm)		Appelez-nous	-
42	403100-1		Screw		Appelez-nous	-
42	67714-6		Hinge, Lower		Appelez-nous	-
43	60626-1		Shim, Lower Hinge		Appelez-nous	-
44	68788-1		Hinge Pin		Appelez-nous	-
45	68544-2		Gasket, Secondary		Appelez-nous	-
46	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
47	60030-4		Door Stop		Appelez-nous	-
47	9986-108		Screw		Appelez-nous	-
48	65790-3		Tapping Plate		Appelez-nous	-
48	403100-1		Screw		Appelez-nous	-
49	68048-1		Insert		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
