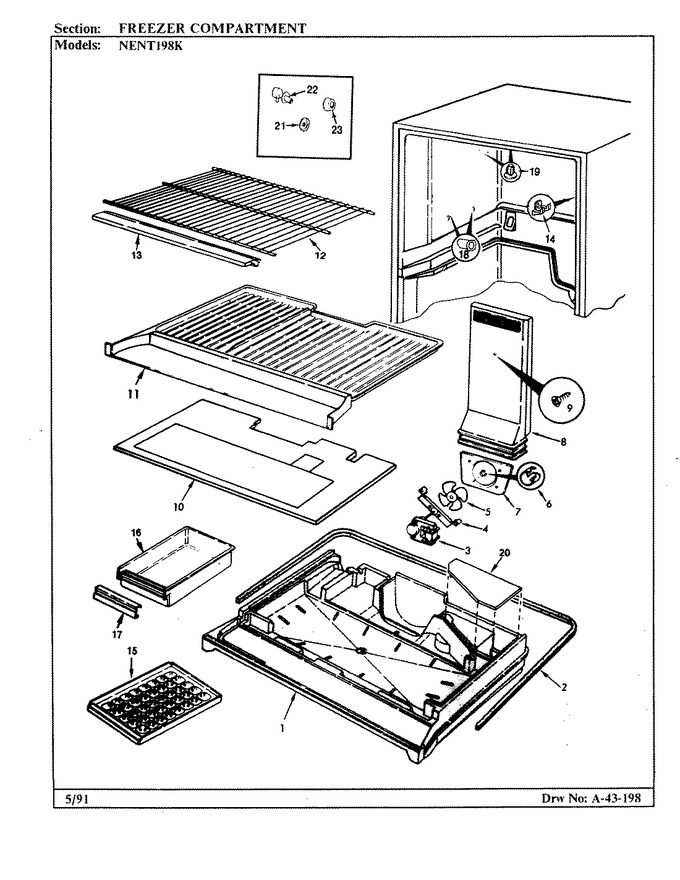

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67519-1 | Tray Foam Mullion |
|
- | |||||
| 2 | 67730-1 | Seal, Front Corner |
|
- | |||||
| 2 | 68866-2 | Seal----na |
|
- | |||||
| 3 | WP61004888 | Motor, Evaporator Fan (Replaces: 69106-1) |
|
Immediately | $ 104.99 | ||||
| 3 | 406062-1 | Screw |
|
- | |||||
| 4 | 400015-12 | Screw |
|
- | |||||
| 4 | 64856-1 | Bracket, Fan Motor |
|
- | |||||
| 5 | 69107-1 | Blade, Evaporator Fan |
|
- | |||||
| 6 | 420092-900 | Washer, Spring |
|
- | |||||
| 7 | 60608-2 | Orifice, Fan Blade |
|
- | |||||
| 8 | 68592-3 | Tunnel, Air |
|
- | |||||
| 8 | 66325-29 | Seal, Tunnel |
|
- | |||||
| 9 | W11233072 | Screw (Replaces: 400015-31) |
|
Immediately | $ 12.62 | ||||
| 10 | 66403-2 | Cover, Evaporator |
|
- | |||||
| 11 | 66479-1 | Bottom, Frz. |
|
- | |||||
| 11 | 66325-10 | Seal, Frost Chest |
|
- | |||||
| 12 | 60438-10 | Shelf |
|
- | |||||
| 13 | 60414-39 | Trim |
|
- | |||||
| 14 | 400019-1 | Screw |
|
- | |||||
| 14 | 66101-1 | Stud, Shelf |
|
- | |||||
| 15 | WP61002140 | Ice Cube Tray (Replaces: 60112-1) |
|
$ 18.23 | |||||
| 16 | 60653-1 | Pan, Ice |
|
- | |||||
| 17 | 66230-9 | Handle Ice Cube Pan |
|
- | |||||
| 18 | 60313-1 | Cup, Shelf |
|
- | |||||
| 19 | 67557-1 | Plug Button |
|
- | |||||
| 19 | 66920-2 | Plug Button |
|
- | |||||
| 20 | 66480-5 | Cover, Plenum |
|
- | |||||
| 21 | 68187-1 | Cap, Connector |
|
- | |||||
| 22 | 68307-1 | Grommet, Water Entry |
|
- | |||||
| 23 | 68387-1 | Cap, Grommet |
|
- |
