SELECT A DIAGRAM
01 - Body

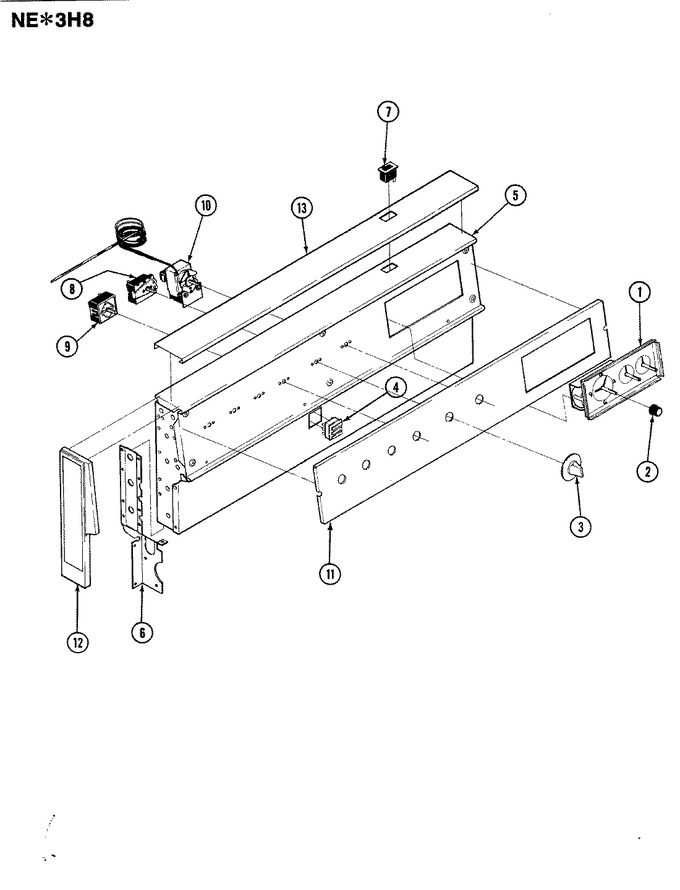

02 - Control Panel
03 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7902P109-60 | Glass, Clock | 1 |
|
- | ||||
| 1 | 7601P094-60 | Clock | 1 |
|
- | ||||
| 2 | 7711P116-60 | Knob, Thermostat Gas | 1 |
|
- | ||||
| 2 | 7711P320-60 | Knob | 1 |
|
- | ||||
| 3 | 7711P321-60 | Knob, Switch | 1 |
|
- | ||||
| 3 | 7711P320-60 | Knob | 1 |
|
- | ||||
| 4 | 7103P053-60 | Nut, Push-on End Cap | 1 |
|
- | ||||
| 4 | 7407P019-60 | Light, Indicator | 1 |
|
- | ||||
| 5 | 2601W190-81 | Panel, Back Snow Wht | 1 |
|
- | ||||
| 5 | 4005F192-80 | Shield, Bkgd Wire | 1 |
|
- | ||||
| 6 | 3807F010-80 | Support | 1 |
|
- | ||||
| 6 | 3807F012-80 | Support | 1 |
|
- | ||||
| 7 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 1 |
|
$ 91.35 | ||||
| 8 | 7403P081-60 | Switch, Selector | 1 |
|
- | ||||
| 9 | 7403P170-60 | Switch, Inf. Control | 1 |
|
- | ||||
| 10 | 7404P052-60 | Thermostat | 1 |
|
- | ||||
| 11 | 7703P136-60 | Trim, Bckd | 1 |
|
- | ||||
| 12 | 7726P019-60 | Trim, Bkgd. | 1 |
|
- | ||||
| 12 | 7726P008-60 | Trim, Bkgd. (lt) | 1 |
|
- | ||||
| 13 | 7715P015-60 | Trim, Backguard Top | 1 |
|
- | ||||
| 14 | 8112P090-60 | Manual, Use & Care | 1 |
|
- |
