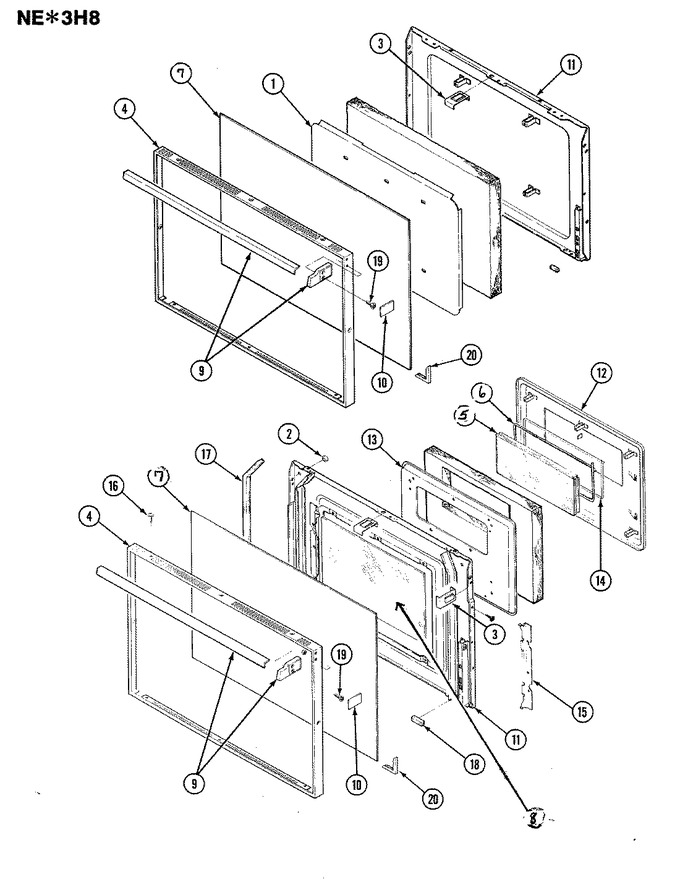

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3802F044-51		Brace, Drawer	1	Appelez-nous	-
1	3801F031-51		Bracket	1	Appelez-nous	-
2	8003P002-60		Bumper Door (round)	1	Appelez-nous	-
3	3405F008-80		Drawer, Service	1	Appelez-nous	-
3	7112P034-60		Clip, Door	1	Appelez-nous	-
4	7706P222-60		Frame, Oven Door	1-30	Appelez-nous	-
4	7706P243-60		Frame, Door	31	Appelez-nous	-
5	7706P177-60		Frame, Window	1	Appelez-nous	-
6	7201P018-60		Gasket, Window	1	Appelez-nous	-
7	7902P276-60		Glass, Door	1	Appelez-nous	-
8	8016P005-60		Glide, Front	1	Appelez-nous	-
8	7902P101-60		Glass, Window Outer	1	Appelez-nous	-
8	7902P103-60		Glass, Window	1	Appelez-nous	-
8	8016P004-60		Glide, Drawer	1	Appelez-nous	-
9	7701P014-71		Handle, Door White	1	Appelez-nous	-
9	7701P047-60		Handle, Door	1	Appelez-nous	-
9	7701P014-74		Handle, Drawer Almond	1	Appelez-nous	-
10	7728P012-60		Insert, Oven Door Handle	1	Appelez-nous	-
11	2402W125-15		Lining, Door	1-27	Appelez-nous	-
11	2402W128-15		Lining	28	Appelez-nous	-
12	2410W029-15		Pad, Door	1	Appelez-nous	-
13	2416F006-74		Panel, Service Drawer Almond	1	Appelez-nous	-
13	2416F006-71		Panel, Service Drawer White	1	Appelez-nous	-
13	2410F016-51		Pad, Inner	1	Appelez-nous	-
14	3804F022-45		Retainer	1	Appelez-nous	-
15	3804F051-80		Retainer, Glass	1	Appelez-nous	-
15	3406F020-80		Runner, Inner	1	Appelez-nous	-
15	3406J007		Runner, Outer	1	Appelez-nous	-
16	7101P225-60		Screw, Svc Door	1	Appelez-nous	-
16	1986258		Screw, Special	1	Appelez-nous	-
17	7208P002-60		Seal	1	Appelez-nous	-
18	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	1			$ 11.95
19	WP7101P126-60		Screw, Frame   (Replaces: 7101P126-60)	1		Immediately	$ 6.85
20	Y0112241		Stop, Door	1	Appelez-nous	-
20	WP7803P058-60		Spring   (Replaces: 7803P002-60)	1			$ 16.55
20	8010P045-60		Spacer, Glass Corner	1	Appelez-nous	-
