SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Console And Dispenser Parts

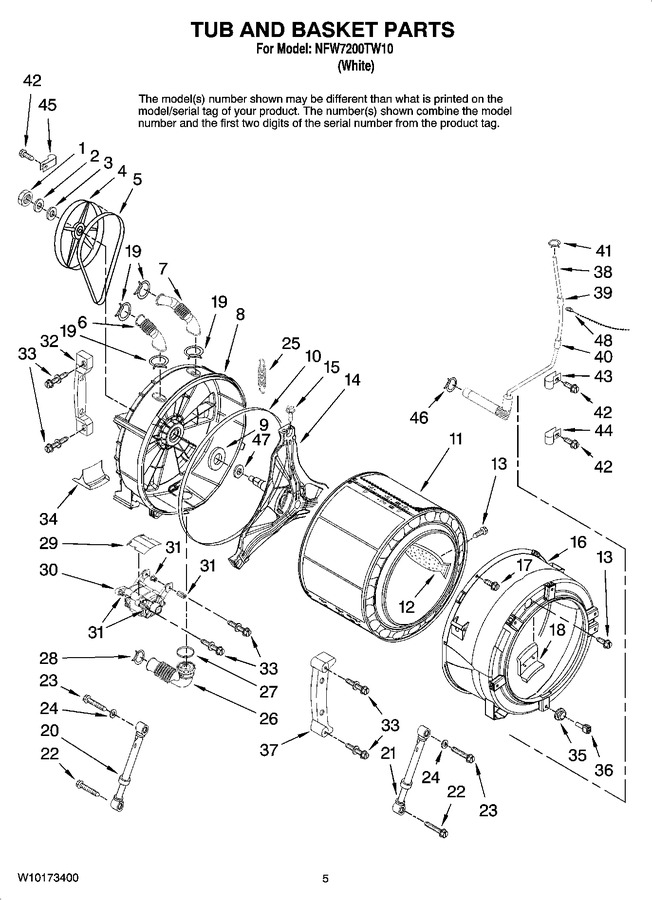

03 - Tub And Basket Parts


04 - Door And Latch Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	34001271		Nut, Pulley				$ 11.59
2	34001273		Washer-spring		Appelez-nous	-
3	23001282		Washer, Flat   (Replaces: 34001406)				$ 15.36
4	34001412		Pulley				$ 92.98
5	34001411		Belt				$ 58.15
6	34001295		Hose Exhaust				$ 71.58
7	34001293		Hose, Exhaust				$ 48.09
8	WP34001439		Tub, Rear (includes Items 9 & 10)   (Replaces: 34001439)				$ 333.37
9	34001408		Seal-oil				$ 28.11
10	34001296		Gasket, Tub				$ 41.65
11	34001430		Basket		Appelez-nous	-
12	34001431		Baffle, Tub (3)		Appelez-nous	-
13	34001251		Screw-tapping		Appelez-nous	-
14	34001407		Crosspiece				$ 284.31
15	34001277		Screw				$ 9.72
16	34001435		Tub, Front		Appelez-nous	-
17	34001267		Screw (10)		Appelez-nous	-
18	34001300		Guide-water		Appelez-nous	-
19	34001297		Clamp, Hose		Appelez-nous	-
20	WP34001292		Shock Absorber (rear) (2)   (Replaces: 34001292)				$ 118.82
21	34001303		Shock Absorber (front) (2)				$ 57.79
22	34001147		Bolt (4)				$ 40.75
23	34001148		Bolt (4)				$ 14.23
24	DC60-60044A		Washer, Flat (4)   (Replaces: 34001272)				$ 1.66
25	34001274		Spring, Suspension (2)				$ 30.62
26	WP34001294		Hose, Tub To Pump   (Replaces: 34001294)				$ 54.72
27	34001289		Clamp, Hose				$ 26.20
28	WP596669		Clamp, Hose   (Replaces: 34001161)			Immediately	$ 7.56
29	34001415		Cover-motor		Appelez-nous	-
30	34001437		Motor, Drive				$ 322.92
31	34001157		Bushing-motor				$ 13.35
32	34001413		Counterweight, Rear		Appelez-nous	-
33	34001158		Bolt Assembly				$ 49.95
34	34001463		Bracket, Rear		Appelez-nous	-
35	34001162		Seal, Rubber		Appelez-nous	-
36	34001202		Thermistor				$ 41.79
37	34001276		Counterweight, Front (2)		Appelez-nous	-
38	34001436		Hose, Pressure Switch				$ 64.50
39	34001301		Sleeve, Pressure Switch Hose				$ 12.53
40	34001307		Sleeve, Harness		Appelez-nous	-
41	DC61-70029C		Clamp, Hose   (Replaces: 34001169)				$ 0.85
42	WP98008545		Screw-tapping   (Replaces: 34001232)				$ 15.94
43	34001299		Clamp, Pressure Hose Retainer				$ 11.33
44	34001433		Clamp, Harness Retainer		Appelez-nous	-
45	34001438		Clamp, Harness Retainer		Appelez-nous	-
46	WP285655		Clamp, Hose   (Replaces: 34001315)			Immediately	$ 7.55
47	34001409		Washer		Appelez-nous	-
48	WPW10339879		Tie, Wire   (Replaces: 34001229)				$ 7.11

    View Diagram in Separate Window       Print Part List
