SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Console And Dispenser Parts


03 - Tub And Basket Parts

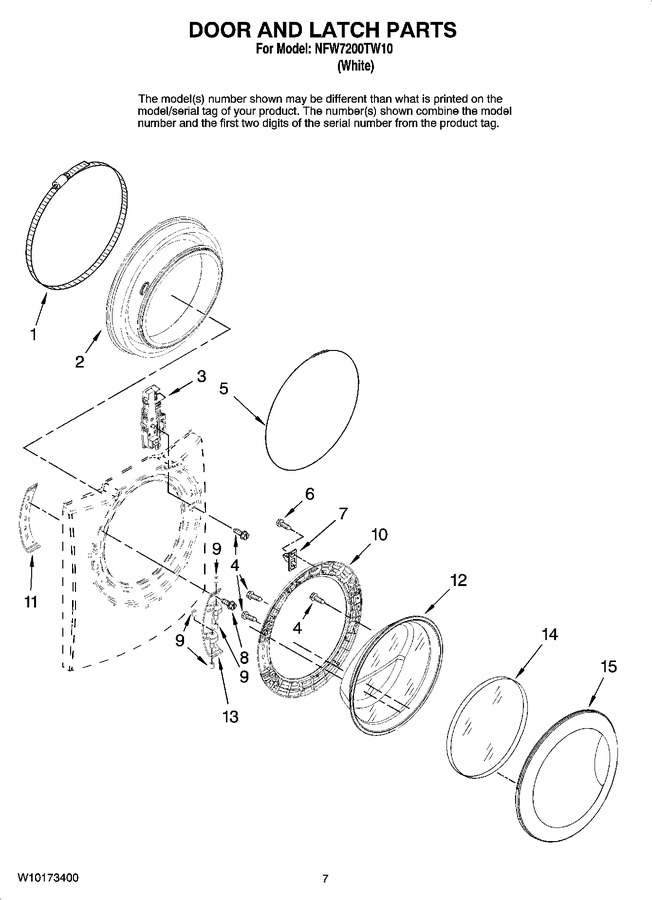

04 - Door And Latch Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	34001306		Clamp, Bellow To Tub				$ 30.78
2	WP34001432		Bellow   (Replaces: 34001432)			Immediately	$ 265.28
3	WP8182634		Lock, Door   (Replaces: 34001265)			Immediately	$ 97.07
4	34001251		Screw		Appelez-nous	-
5	34001266		Clamp, Bellow To Front Panel				$ 20.71
6	34001259		Screw				$ 6.09
7	WP34001260		Hook, Door   (Replaces: 34001260)			Immediately	$ 61.64
8	34001286		Screw (2)		Appelez-nous	-
9	WP34001192		Bushing, Hinge Guide (4)   (Replaces: 34001192)			Immediately	$ 6.47
10	34001426		Frame, Door Back Support				$ 80.16
11	34001428		Bracket - Hinge				$ 37.49
12	34001254		Glass, Door		Appelez-nous	-
13	W10175955		Hinge, Door		Appelez-nous	-
14	34001425		Screen, Door				$ 141.65
15	34001424		Frame, Door Front				$ 161.74
NI	34001223		Wrench, Spanner				$ 26.19
NI	350938		Paint, Pressurized Spray (12 Oz.) (primer, Gray)		Appelez-nous	-
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 34.39
NI	799344		Paint, Bulk (1 Qt.) (white (uncut))				$ 237.46
NI	MALE027AXX		Stack Kit (electric Dryer)		Appelez-nous	-
NI	MALG027AXX		Stack Kit (gas Dryer)		Appelez-nous	-
NI	34001395		Cap-fixer		Appelez-nous	-
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 11.07

    View Diagram in Separate Window       Print Part List
