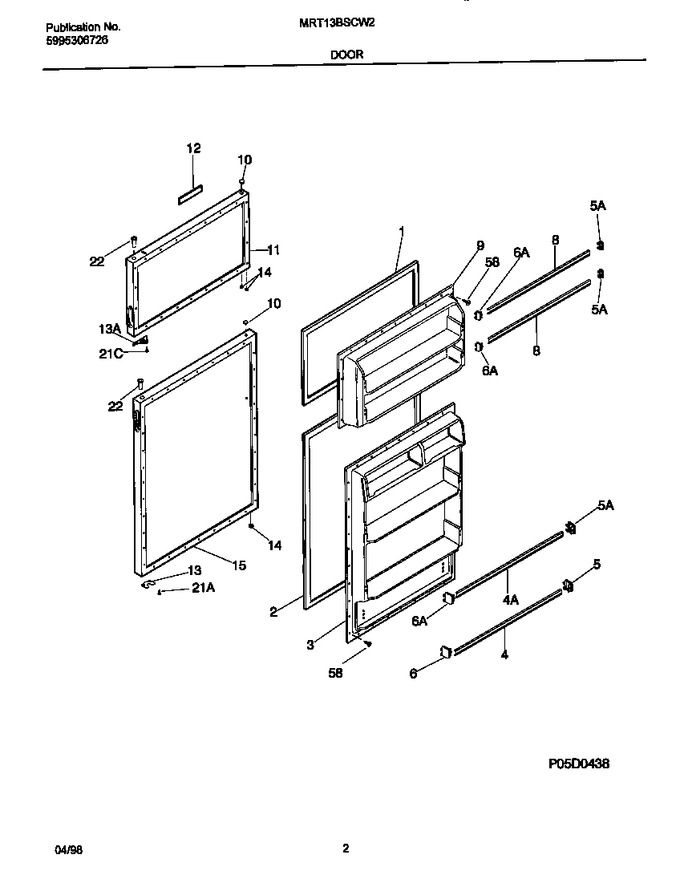

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608911		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	218730601		Gasket-refr Door, White, Magnetic				$ 286.34
3	218473001		Panel-inner Door, Refr		Appelez-nous	-
4	215366002		Rack-door, 23.00`` X 1.62``   (Replaces: 5303280367)			Immediately	$ 65.83
4	5303280366		Rack-door, 23.16`` X 1.12``		Appelez-nous	-
5	3206165		Support-door Rack, Rh   (Replaces: 5303324321)			Immediately	$ 8.19
5	5303324320		Support-door Rack, Rh		Appelez-nous	-
6	5303324302		Support-door Rack, Lh				$ 10.82
6	3206166		Support-door Rack, Lh   (Replaces: 5303324303)			Immediately	$ 9.93
8	5303280622		Rack-door, 22.59`` X 1.12``		Appelez-nous	-
9	5303271486		Panel-inner Door, Frzr				$ 312.17
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	218497401		Panel-frzr Door, White, With Handles &, Foam Insulation		Appelez-nous	-
12	218439128		Nameplate Assy, White, W/mounting Tape		Appelez-nous	-
13	218800300		Door Stop,plated		Appelez-nous	-
13	218249001		Door Stop, White, Frzr Section				$ 82.06
14	240494001		Plug-button, White   (Replaces: 5308000090)			Immediately	$ 18.20
15	218629301		Panel-refr Door, White, With Handles, And Insulation		Appelez-nous	-
21	218252201		Screw,8 Truss Hd ,10-32ca X .5   (Replaces: 218252200)			Immediately	$ 14.18
21	218251900		Screw,8 Oval Head ,10-32ca X .625 ,cross Recessed				$ 10.55
22	218519300		Bearing-hinge				$ 14.60
58	216858001		Screw, Truss Head, 8-15a X 0.500   (Replaces: 218699800)			Immediately	$ 10.85
*61200	5315340712		Tape,adhesive ,12`` Long ,foam ,double-faced		Appelez-nous	-
*61201	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
