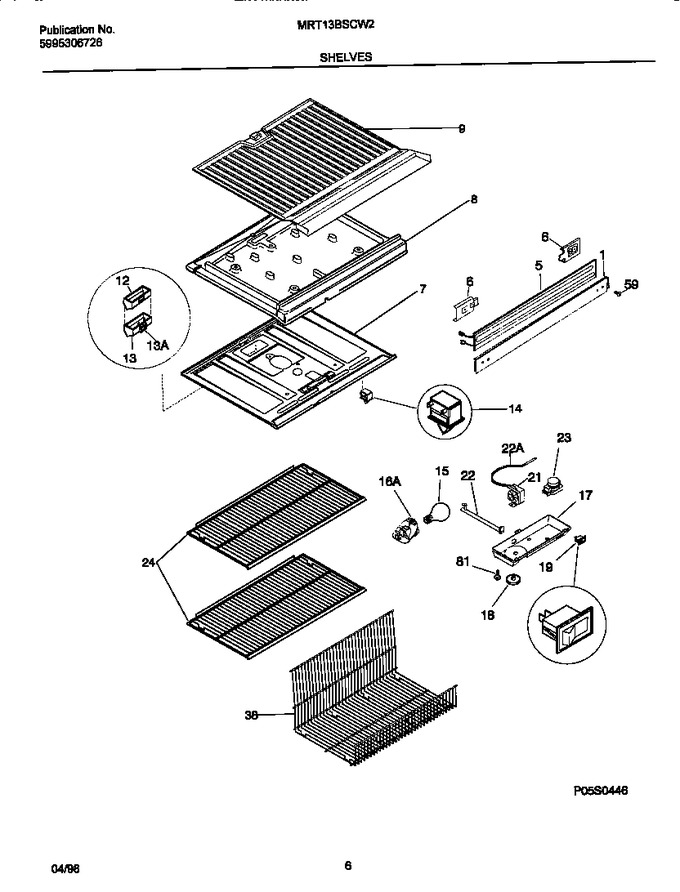

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218781501		Mullion, White		Appelez-nous	-
5	218781001		Heater-mullion				$ 50.56
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
7	218820500		Top Panel-refr		Appelez-nous	-
8	218820300		Divider,styrofoam		Appelez-nous	-
9	218820600		Bottom Panel-frzr		Appelez-nous	-
12	218630800		Deflector-air		Appelez-nous	-
13	218631001		Cover-air Deflector				$ 55.19
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17	5303307349		Control Box		Appelez-nous	-
18	5303311079		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
21	5303018894		Control-temperature		Appelez-nous	-
22	5303270923		Housing-temp Sensor, Plastic		Appelez-nous	-
22	5303916855		Tube, Plastic, Clear, Sensor Sleeve				$ 60.96
23	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
24	5303283125		Shelf-sliding, Wire, Refr Section		Appelez-nous	-
38	5303310496		Trivet		Appelez-nous	-
59	240442708		Screw,pan Hd ,10-32 X .625 ,hinge/mullion,thread Forming   (Replaces: 218188000)				$ 8.34
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
*61207	5303276174		Harness-wiring, Control/divider		Appelez-nous	-
*61208	5303001380		Screw		Appelez-nous	-
*61209	5303001449		Seal-air Deflector,foam Plastic ,(2)				$ 2.12
*61210	5303001260		Screw				$ 6.73
*61211	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
