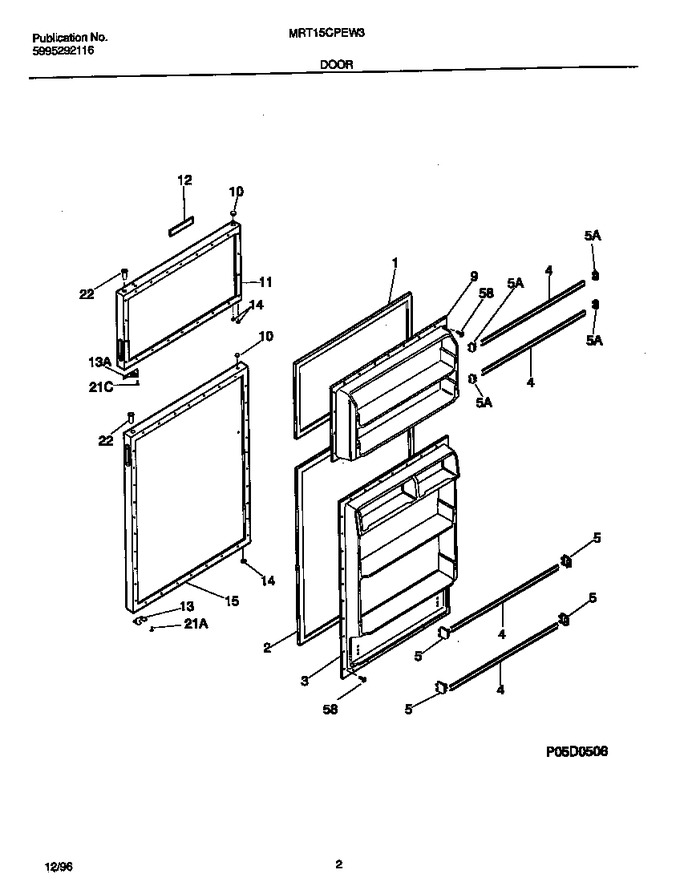

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608911 | Gasket-frzr Door, White, Magnetic |
|
- | |||||
| 2 | 218730603 | Gasket-refr Door, White, Magnetic |
|
$ 62.07 | |||||
| 3 | 218460803 | Panel-inner Door,refr |
|
- | |||||
| 4 | 215366002 | Rack-door,22.20`` X 1.62`` (Replaces: 218027017) |
|
Immediately | $ 65.83 | ||||
| 5 | 215267701 | Support-door Rack,``2-liter`` ,rh/lh |
|
Immediately | $ 7.79 | ||||
| 5 | 215473602 | Support-door Rack, Rh/lh (Replaces: 215473601) |
|
Immediately | $ 11.58 | ||||
| 9 | 218460701 | Panel-inner Door, Frzr |
|
$ 292.02 | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 218497401 | Panel-frzr Door, White, With Handles &, Foam Insulation |
|
- | |||||
| 12 | 5315340712 | Tape, Adhesive, 12`` Long, Foam, Double-faced (not Illustrated) |
|
- | |||||
| 12 | 218439128 | Nameplate Assy, White, W/mounting Tape |
|
- | |||||
| 13 | 218249001 | Door Stop, White, Frzr Section |
|
$ 82.06 | |||||
| 13 | 5308000255 | Door Stop |
|
$ 42.20 | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 218497501 | Panel-refr Door, White, With Handles, Insul, & Brace |
|
- | |||||
| 21 | 218252201 | Screw, No. 8 Truss Head, 10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 21 | 218251900 | Screw, No. 8 Oval Head, 10-32ca X 0.625, Cross Recessed |
|
$ 10.55 | |||||
| 22 | 218519300 | Bearing-hinge |
|
$ 14.60 | |||||
| 58 | 216858001 | Screw, Truss Head, 8-15a X 0.500 (Replaces: 218699800) |
|
Immediately | $ 10.85 | ||||
| *34760 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
