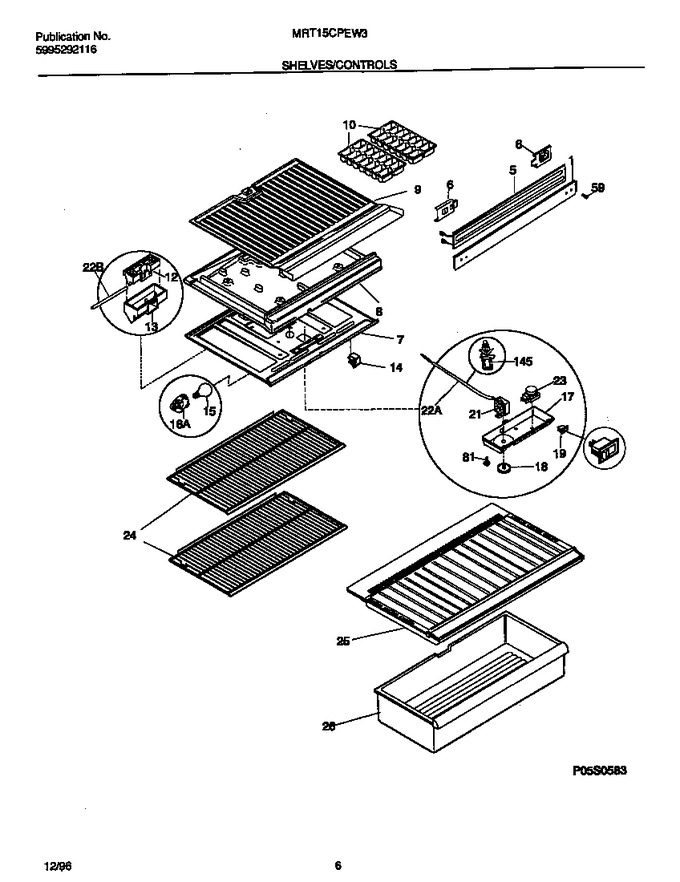

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218430701		Mullion, White		Appelez-nous	-
5	218271401		Heater-mullion				$ 135.66
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
7	218740400		Panel-top, Refr Section		Appelez-nous	-
8	3018900		Harness, Wiring, Control/divider (not Illustrated)		Appelez-nous	-
8	218635800		Divider, Styrofoam		Appelez-nous	-
9	3206187		Panel-bottom, Frzr Section		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
12	5303001449		Seal-air Deflector, Foam Plastic, (2) (not Illustrated)				$ 2.12
12	218730000		Deflector-air				$ 57.60
13	218631001		Cover-air Deflector				$ 55.19
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17	5303321455		Control Box				$ 46.16
17	5308016567		Nut, Anchor (not Illustrated)		Appelez-nous	-
18	5303311079		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
21	5304404821		Control-temperature   (Replaces: 5303321453)			Immediately	$ 164.57
21	5303001260		Screw				$ 6.73
22	5303916855		Tube, Plastic, Clear, Sensor Sleeve				$ 60.96
22	218731101		Tube, Pvc, White, @ Air Deflector, Insulator		Appelez-nous	-
23	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
23	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
24	218272502		Shelf, Sliding, Wire				$ 621.92
25	218227301		Cover-crisper Pan, Less Sprt Beam		Appelez-nous	-
26	5303285386		Pan-crisper, Full-width				$ 170.39
59	240442708		Screw, Pan Head, 10-32 X 0.625, Hinge/mullion, Thread Fo   (Replaces: 218188000)				$ 8.34
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
145	218660800		Clip, Plastic, Temp Sensor Mtg, Snap-in		Appelez-nous	-
