SELECT A DIAGRAM

01 - Freezer Compartment

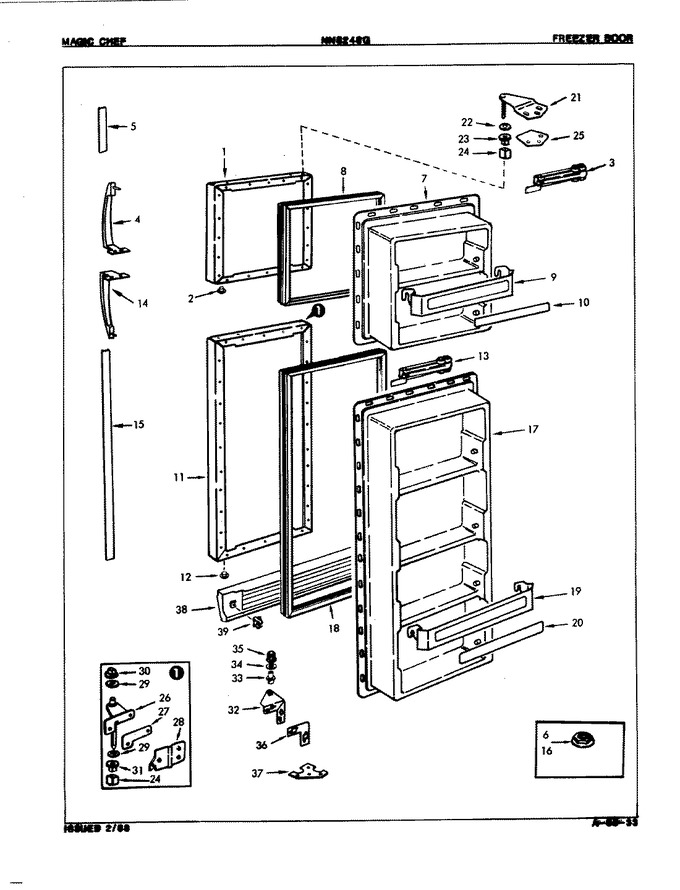

02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	66461-3-AM		Outer Panel		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	54485-1		Closer, Door		Appelez-nous	-
3	52614-1		Bracket, Closer		Appelez-nous	-
3	52613-1		Insulation, Closer		Appelez-nous	-
4	60123-2		Clip, Stop Screw		Appelez-nous	-
4	66117-2		Handle Asm		Appelez-nous	-
4	9986-122		Screw		Appelez-nous	-
5	65774-19		Handle Ext		Appelez-nous	-
6	430088-506		Nut		Appelez-nous	-
7	65697-5		Liner, Door		Appelez-nous	-
7	9986-12		Screw,door Liner		Appelez-nous	-
8	53712-10		Gasket		Appelez-nous	-
9	65701-6		Shelf Front		Appelez-nous	-
10	65571-26		Insert		Appelez-nous	-
11	66461-4-AM		Outer Panel		Appelez-nous	-
12	495034-900		Plug Button, Door		Appelez-nous	-
13	54485-1		Closer, Door		Appelez-nous	-
13	52613-1		Insulation, Closer		Appelez-nous	-
13	52614-1		Bracket, Closer		Appelez-nous	-
14	9986-122		Screw		Appelez-nous	-
14	60123-2		Clip, Stop Screw		Appelez-nous	-
14	66117-2		Handle Asm		Appelez-nous	-
15	65774-20		Handle Ext		Appelez-nous	-
16	430088-506		Nut		Appelez-nous	-
17	9986-12		Screw,door Liner		Appelez-nous	-
17	65698-5		Liner, Door		Appelez-nous	-
18	53712-24		Gasket		Appelez-nous	-
19	65701-6		Shelf Front		Appelez-nous	-
20	65571-26		Insert		Appelez-nous	-
21	53709-16		Upper Hinge,(chrome)		Appelez-nous	-
21	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
21	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
22	52185-2		Washer		Appelez-nous	-
23	66036-2		Bushing, Upper Hinge		Appelez-nous	-
24	55990-1		Seal Sleeve		Appelez-nous	-
25	65031-1		Shim, Upper Hinge		Appelez-nous	-
26	54390-6		Hinge		Appelez-nous	-
26	9986-110		Screw		Appelez-nous	-
27	54386-4		Spacer		Appelez-nous	-
28	54031-2		Tapping Plate		Appelez-nous	-
29	52185-2		Washer		Appelez-nous	-
30	66036-2		Bushing, Upper Hinge		Appelez-nous	-
31	66036-2		Bushing, Upper Hinge		Appelez-nous	-
32	60630-10		Hiner, Lower (chrome)				$ 26.18
32	403062-5		Screw		Appelez-nous	-
33	53672-1		Pin, Lower Hinge		Appelez-nous	-
34	54233-2		Washer		Appelez-nous	-
35	66034-1		Bushing, Lower Hinge				$ 19.76
36	60626-1		Shim, Lower Hinge		Appelez-nous	-
37	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-
38	58437-40		Kickplate		Appelez-nous	-
39	WP489478		Screw, Kickplate Mtg.   (Replaces: 9986-101)				$ 6.98
39	52854-3		Clip, Kickplate		Appelez-nous	-
