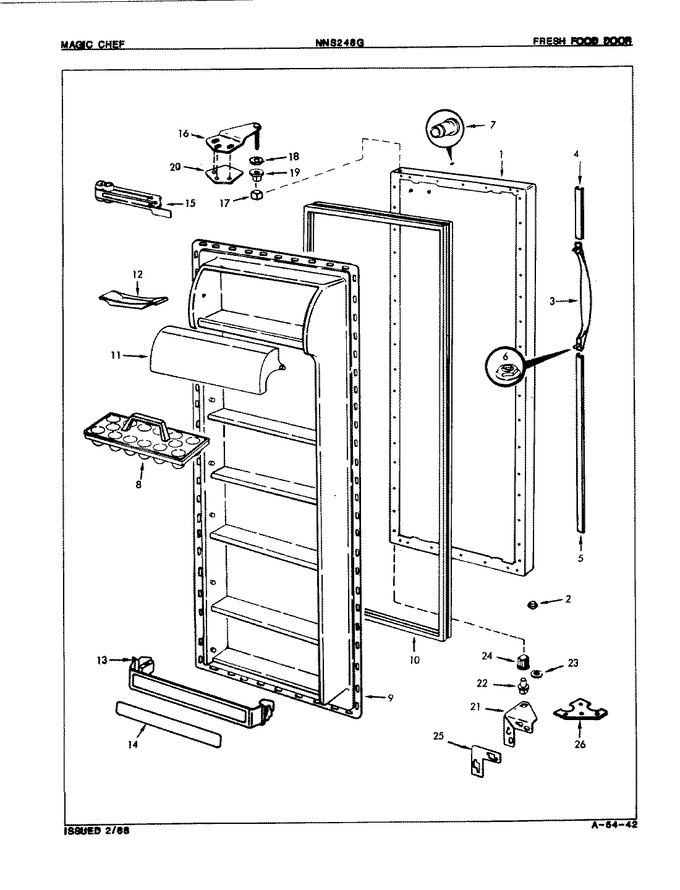

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	62391-29-AM		Panel, Outer Door		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	66453-2		Handle Asm		Appelez-nous	-
4	65774-19		Handle Ext		Appelez-nous	-
5	65774-20		Handle Ext		Appelez-nous	-
5	65774-26		Handle Ext		Appelez-nous	-
6	430088-506		Nut		Appelez-nous	-
7	65211-1		Retainer, Nameplate		Appelez-nous	-
8	60066-5		Tray, Egg		Appelez-nous	-
9	65640-5		Liner, Door		Appelez-nous	-
9	9986-12		Screw,door Liner		Appelez-nous	-
10	53712-2		Gasket		Appelez-nous	-
11	66184-220		Door, Dairy		Appelez-nous	-
12	29936-2		Tray, Butter		Appelez-nous	-
13	65781-4		Shelf Front		Appelez-nous	-
14	65571-25		Insert		Appelez-nous	-
15	52613-1		Insulation, Closer		Appelez-nous	-
15	52614-1		Bracket, Closer		Appelez-nous	-
15	54485-1		Closer, Door		Appelez-nous	-
16	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
16	53709-16		Upper Hinge,(chrome)		Appelez-nous	-
17	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
17	55990-1		Seal Sleeve		Appelez-nous	-
18	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
19	66036-1		Bushing,top/center Hinge		Appelez-nous	-
20	65031-1		Shim, Upper Hinge		Appelez-nous	-
21	60630-12		Hinge, Lower		Appelez-nous	-
21	403062-5		Screw		Appelez-nous	-
22	53672-1		Pin, Lower Hinge		Appelez-nous	-
23	54233-1		Washer				$ 7.71
24	66034-1		Bushing, Lower Hinge				$ 19.76
25	60626-1		Shim, Lower Hinge		Appelez-nous	-
26	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
