SELECT A DIAGRAM

01 - Doors


02 - Freezer Compartment

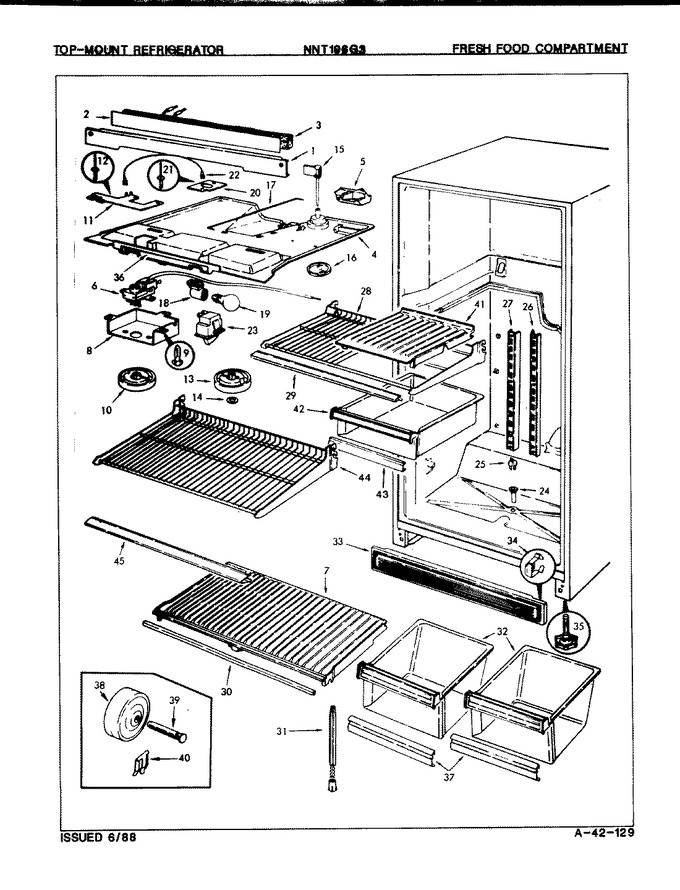

03 - Fresh Food Compartment


04 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	65797-2-AM		Divider, Mullion (alm)		Appelez-nous	-
1	9986-117		Screw		Appelez-nous	-
2	60105-11		Heater Wire		Appelez-nous	-
3	60560-1		Wire Harness		Appelez-nous	-
3	60140-2		Insulation		Appelez-nous	-
4	60085-36		Top, F.f. Compartment		Appelez-nous	-
5	60120-2		Deflector		Appelez-nous	-
6	WP68601-6		Control, Temperature   (Replaces: 68119-1)			Immediately	$ 233.80
6	29675-22		Ground Wire		Appelez-nous	-
6	406013-1		Screw		Appelez-nous	-
7	60019-6		Shelf, Crisper		Appelez-nous	-
8	405012-1		Screw		Appelez-nous	-
8	60083-1		Cover, Temperature Control		Appelez-nous	-
9	28013-2		Rivet, Air Tunnel		Appelez-nous	-
10	68162-1		Knob		Appelez-nous	-
11	60147-1		Bracket, Control		Appelez-nous	-
12	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
13	68162-3		Knob		Appelez-nous	-
13	W11233072		Screw   (Replaces: 405016-103)			Immediately	$ 12.62
14	420092-900		Washer, Spring		Appelez-nous	-
15	66609-1		Damper		Appelez-nous	-
16	68161-3		Crank		Appelez-nous	-
17	60078-3		Rod		Appelez-nous	-
18	60577-1		Socket, Light		Appelez-nous	-
19	WP67002552		Bulb, Light (40w-230v)   (Replaces: 24082-1)			Immediately	$ 10.58
20	60147-2		Bracket, Light Socket		Appelez-nous	-
21	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
22	29675-28		Ground Wire		Appelez-nous	-
23	54653-28		Cord, Switch/light		Appelez-nous	-
23	W11384469		Switch, Light   (Replaces: 55732-1)			Immediately	$ 33.51
24	54531-8		Grommet		Appelez-nous	-
25	65039-1		Cap, Drain Tube		Appelez-nous	-
26	60096-5		Support		Appelez-nous	-
27	60096-4		Support		Appelez-nous	-
28	60416-2		Shelf		Appelez-nous	-
29	60414-19		Trim		Appelez-nous	-
30	60454-5		Trim		Appelez-nous	-
31	12001957		Support, Crisper Shelf   (Replaces: 66105-1)				$ 3.35
32	60457-154		Pan, Crisper		Appelez-nous	-
33	60138-7		Kickplate		Appelez-nous	-
33	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
34	60010-1		Code R		Appelez-nous	-
35	W11117769		Leg, Leveling   (Replaces: 6012-8)			Immediately	$ 16.61
36	60571-38		Insert		Appelez-nous	-
36	402013-1		Screw		Appelez-nous	-
36	29675-32		Ground Wire		Appelez-nous	-
37	68129-9		Insert		Appelez-nous	-
38	29834-2		Wheel		Appelez-nous	-
39	29835-2		Pin, Wheel		Appelez-nous	-
40	60216-1		Clip		Appelez-nous	-
40	400037-1		Screw		Appelez-nous	-
41	60075-7		Cover, Meat Pan		Appelez-nous	-
42	66490-3		Pan		Appelez-nous	-
43	68129-8		Insert		Appelez-nous	-
44	60417-1		Shelf		Appelez-nous	-
45	60414-19		Trim		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
