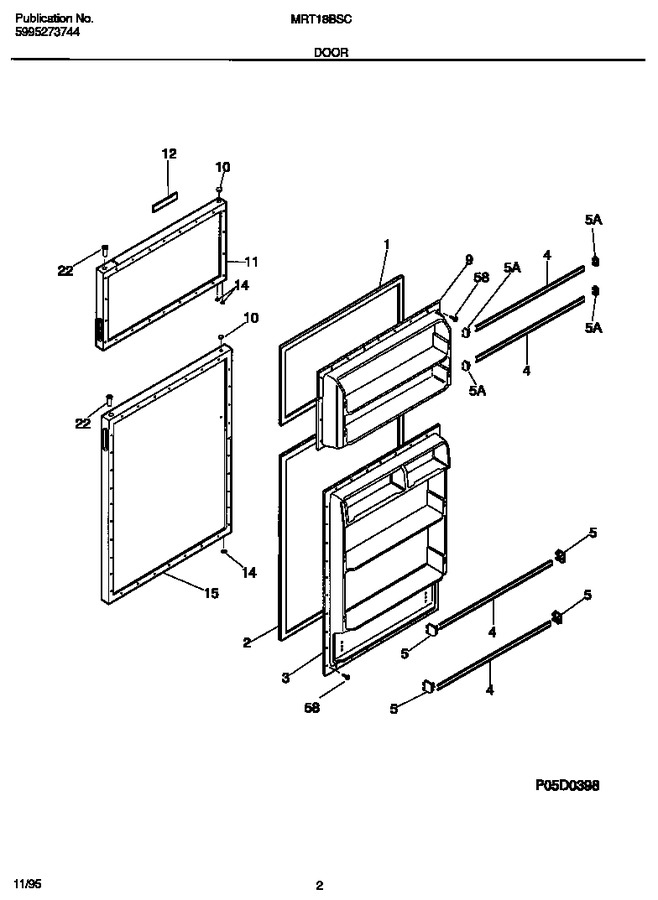

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608916 | Gasket-frzr Door, White, Magnetic |
|
$ 258.30 | |||||
| 2 | 5303207345 | Gasket-refr Door, White, Magnetic |
|
Immediately | $ 188.19 | ||||
| 3 | 218360003 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 215366002 | Rack-door,23.81`` X 1.62`` (Replaces: 218027022) |
|
Immediately | $ 65.83 | ||||
| 5 | 215473602 | Support-door Rack, Rh/lh (Replaces: 215473601) |
|
Immediately | $ 11.58 | ||||
| 5 | 215267701 | Support-door Rack,``2-liter`` ,rh/lh |
|
Immediately | $ 7.79 | ||||
| 9 | 218360101 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 218508701 | Panel-frzr Door, White, With Handles, And Insulation |
|
- | |||||
| 12 | 215503701 | Frame-nameplate, White, W/mtg Tape |
|
- | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 218508801 | Panel-refr Door,white ,with Handles ,insul, & Brace |
|
- | |||||
| 22 | 3206153 | Bearing-hinge |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *53800 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
