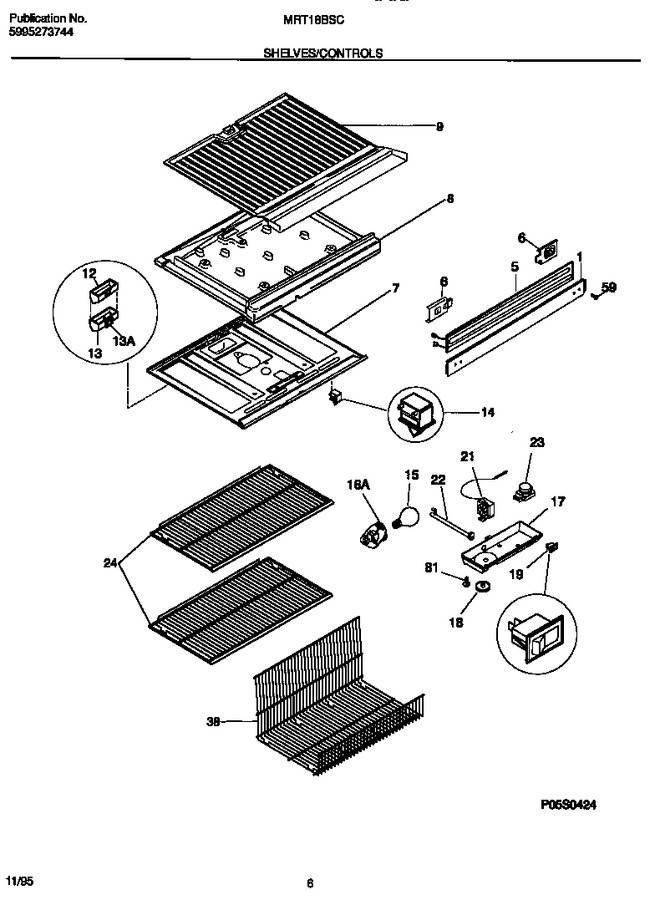

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218430801		Mullion, White		Appelez-nous	-
5	218271403		Heater-mullion				$ 115.07
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
7	5303001380		Screw		Appelez-nous	-
7	3206454		Top Panel-refr		Appelez-nous	-
8	3018900		Harness, Wiring, Control/divider (not Illustrated)		Appelez-nous	-
8	3205266		Protector-edge, Wiring Harness (not Illustrated)				$ 80.09
8	3206456		Divider, Styrofoam		Appelez-nous	-
9	3206455		Bottom Panel-frzr		Appelez-nous	-
12	5308014667		Deflector-air, W/seal		Appelez-nous	-
12	5303001449		Seal, Air Deflector (not Illustrated)				$ 2.12
13	5303001448		Cover-air Deflector		Appelez-nous	-
13	5303200590		Extension, Air Deflector, With Insulation		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17	5303307349		Control Box		Appelez-nous	-
17	5308016567		Nut, Anchor (not Illustrated)		Appelez-nous	-
18	5303307352		Knob, Temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
21	5303305486		Control-temperature				$ 122.43
21	5303001260		Screw				$ 6.73
22	3018891		Housing-temp Sensor, Plastic		Appelez-nous	-
23	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
23	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
24	5303307451		Shelf, Sliding, Wire, Refr Section		Appelez-nous	-
38	5303309901		Trivet		Appelez-nous	-
59	240442708		Screw-hinge/mullion, Cr Pan Head, 10-32 X 5/8, Thread Fo   (Replaces: 218188000)				$ 8.34
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
