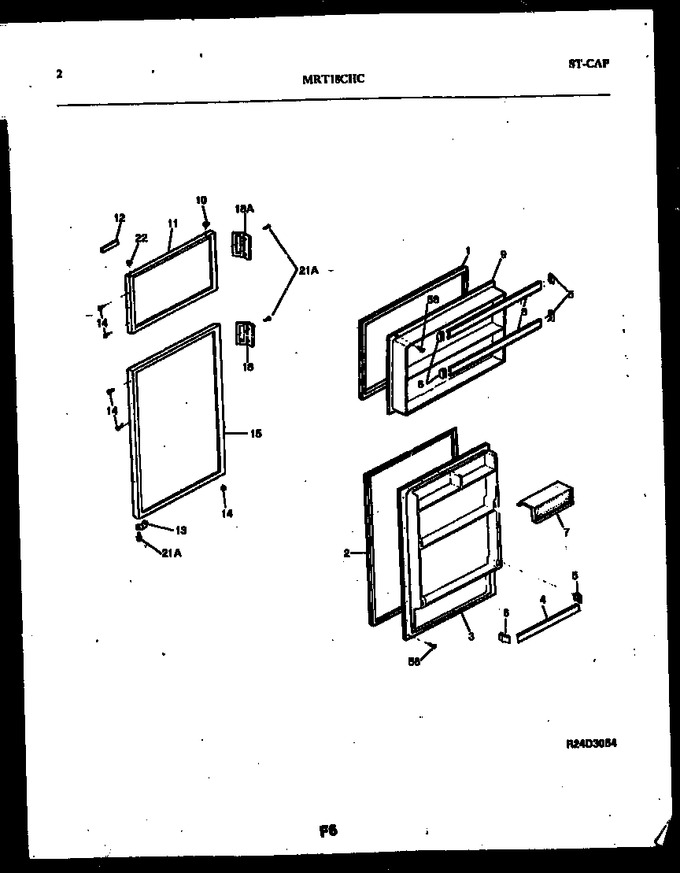

02 - Door Parts
03 - Cabinet Parts
04 - Cabinet Parts
05 - Shelves And Supports
06 - System And Automatic Defrost Parts
07 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303207342 | Gasket-frzr Door, Magnetic, White |
|
- | |||||
| 2 | 5303207345 | Gasket-refr Door, Magnetic, White |
|
Immediately | $ 188.19 | ||||
| 3 | 5303207346 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303281481 | Rack-door, (2) |
|
$ 165.80 | |||||
| 5 | 5303207230 | Support-door Rack, Rh, (4) |
|
Immediately | $ 17.21 | ||||
| 6 | 5303207229 | Support-door Rack, Lh, (4) |
|
$ 17.59 | |||||
| 7 | 5303290741 | Door - Dairy |
|
- | |||||
| 8 | 5303281482 | Rack-door, (2) |
|
- | |||||
| 9 | 5303207343 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 5303917234 | Panel-frzr Door, Almond |
|
- | |||||
| 12 | 5303276130 | Frame-nameplate, W/ Tape |
|
- | |||||
| 13 | 5308000255 | Door Stop, Refr/frzr |
|
$ 42.20 | |||||
| 14 | 5308000181 | Plug-button, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 5303917236 | Panel-refr Door, Almond |
|
- | |||||
| 18 | 5303273080 | Handle-door, Almond |
|
- | |||||
| 22 | 3206153 | Bearing-hinge (8) |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *70247 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- | |||||
| 18A | 5303273082 | Handle-door, Almond |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 |
