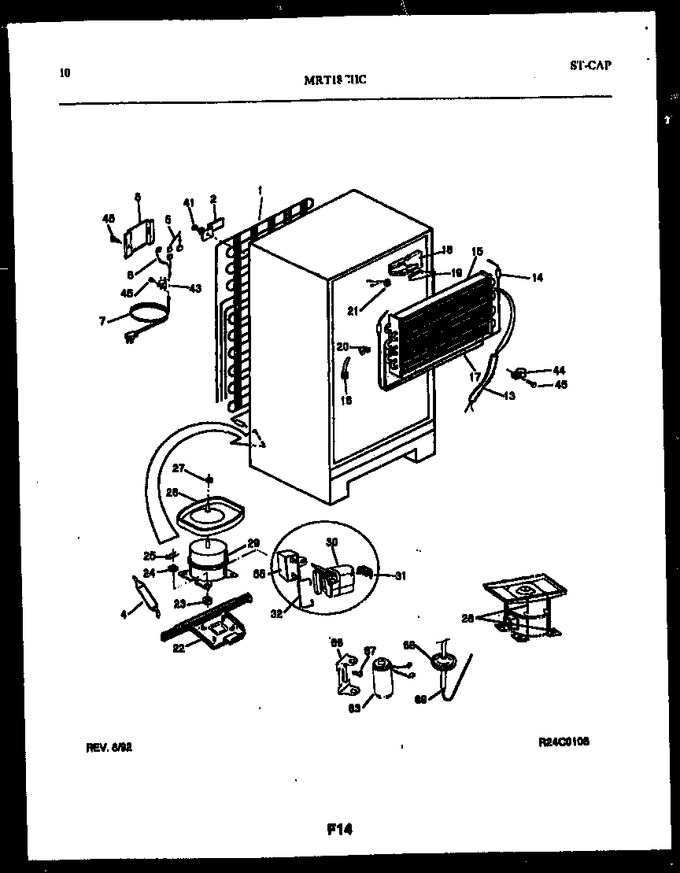

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215301200		Condenser		Appelez-nous	-
2	5308000296		Bracket-cond Mtg (4)				$ 30.20
4	5303305677		Drier, Filter   (Replaces: 215062400)			Immediately	$ 31.67
5	3018900		Harness-wiring, Control/divider		Appelez-nous	-
6	215257002		Harness-wiring, Compressor		Appelez-nous	-
7	5316254901		Cord-electric Power		Appelez-nous	-
8	5303001197		Cover-wiring		Appelez-nous	-
13	215076400		Heat Exchanger, Suction Line		Appelez-nous	-
14	3206453		Heater-defrost				$ 268.46
15	3206452		Evaporator Coil		Appelez-nous	-
16	5308000110		Strap-evap/heater, Aluminum			Immediately	$ 59.82
17	5303207493		Insulator-evap, Plastic				$ 27.51
18	5308013648		Insulation Block, Rh		Appelez-nous	-
19	5303007287		Insulation Plug, Rh		Appelez-nous	-
20	5308017227		Insulation Block, Lh		Appelez-nous	-
21	5303917954		Thermostat-defrost   (Replaces: 5316269001)			Immediately	$ 30.47
22	3206126		Plate-compr Mtg, With Rail		Appelez-nous	-
23	215175000		Grommet-compr Mtg, (4)		Appelez-nous	-
24	5308003633		Washer-compr Mtg				$ 35.67
25	5308003596		Clip - Compressor Mtg				$ 6.62
26	5300184715		Pan-defrost Drain, Orig/svce Compr		Appelez-nous	-
27	5303001348		Nut,lock `1/4-20 ,drain Pan Mtg				$ 2.73
28	5303916001		Pan Retainer Kit, Service				$ 78.75
29	5303917190		Compressor Only, W/o Electricals		Appelez-nous	-
30	216008901		Starter-ptc				$ 312.95
31	5303276514		Overload				$ 64.94
32	215012000		Wire-bale				$ 2.63
41	5308000039		Screw		Appelez-nous	-
43	5303001199		Clamp				$ 65.92
22A	3051070		Screw, Spcl Hx Wshr Hd, 10-32 X 1/2 (non-illustrated)		Appelez-nous	-
26A	5308017610		Sound Tape-dfr Pan (non-illustrated)		Appelez-nous	-
2A	5308009617		Washer, Ext Tooth Lock, No. 10 (non-illustrated)		Appelez-nous	-
