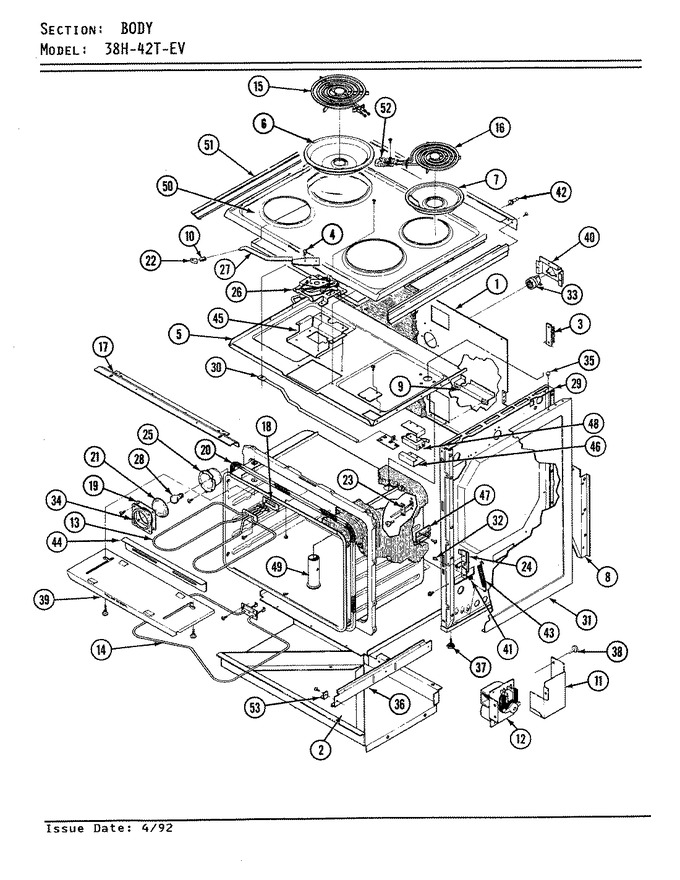

01 - Body
02 - Control Panel
03 - Door/drawer
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 1 | 4002F108-80 | Back, Main | 01 |
|
- | ||||
| 3 | 7401P017-60 | Block, Disconnect (pin) | 01 |
|
- | ||||
| 3 | WPW10245259 | Block, Terminal (Replaces: 7401P002-60) | 01 |
|
Immediately | $ 31.65 | |||
| 3 | 7401P018-60 | Block | 01 |
|
- | ||||
| 4 | 7116P003-60 | Bolt | 01 |
|
- | ||||
| 5 | 4011F198-80 | Bottom, Burner Box | 54 |
|
- | ||||
| 5 | 4011F158-80 | Bottom, Burner Box | 01 |
|
- | ||||
| 6 | WPW10196405 | Bowl, Drip (8``) (Replaces: 7725P014-60) | 01 |
|
Immediately | $ 15.56 | |||
| 7 | WPW10196406 | Bowl, Drip (6``)(w/hole-chr) (Replaces: 7725P015-60) | 01 |
|
Immediately | $ 12.05 | |||
| 8 | 3802F029-80 | Brace, Main Top | 34 |
|
- | ||||
| 8 | 3802F010-80 | Brace, Back-right | 01 |
|
- | ||||
| 8 | 3802F076-51 | Brace, Inner Side | 01 |
|
- | ||||
| 8 | 3802F008-80 | Brace, Back-left | 01 |
|
- | ||||
| 9 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 9 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 49 |
|
Immediately | $ 4.69 | |||
| 9 | 3801F198-51 | Bracket, Tie-down | 01 |
|
- | ||||
| 9 | 7111P002-60 | Clamp, Wire 3/4 | 01 |
|
- | ||||
| 9 | 3801F093-45 | Bracket, Burner Box | 01 |
|
- | ||||
| 9 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 49 |
|
$ 26.33 | ||||
| 10 | 7112P003-60 | Clip, Latch Handle | 01 |
|
- | ||||
| 12 | 4005F182-80 | Cover, Wire Housing | 01 |
|
- | ||||
| 12 | 4005F186-80 | Cover, Sensor Probe | 01 |
|
- | ||||
| 13 | 7406P032-60 | Element, Broil | 01 |
|
- | ||||
| 13 | 7406P068-60 | Element, Broil | 48 |
|
- | ||||
| 14 | WPY04000041 | Element,bake (Replaces: 7406P010-60) | 01 |
|
$ 133.20 | ||||
| 14 | WPY04000041 | Element, Bake (Replaces: 7406P067-60) | 48 |
|
$ 133.20 | ||||
| 15 | WP3191454 | Element, Surface 8``x5t,chr (Replaces: Y04000031) | 01 |
|
$ 163.63 | ||||
| 16 | WP660532 | Element (small) (Replaces: Y04000032) | 01 |
|
Immediately | $ 36.90 | |||
| 17 | 4012F017-80 | Front, Burner Box Bottom | 01 |
|
- | ||||
| 18 | 7201P003-60 | Gasket, Element | 01 |
|
- | ||||
| 19 | 7201P015-60 | Gasket, Lamp Retainer | 01 |
|
- | ||||
| 19 | 7201P014-60 | Gasket, Housing | 01 |
|
- | ||||
| 20 | 7201P036-60 | Gasket, Oven | 01 |
|
$ 118.90 | ||||
| 21 | 7902P057-60 | Glass, Lamp Guard | 01 |
|
- | ||||
| 22 | 7701P072-60 | Handle, Door Lock (white) | 01 |
|
- | ||||
| 23 | 12001656 | Probe, Oven Sensor (Replaces: 7430P005-60) | 01 |
|
Immediately | $ 39.55 | |||
| 23 | 12001656 | Probe, Oven Sensor (Replaces: 7430P008-60) | 34 |
|
Immediately | $ 39.55 | |||
| 23 | 12001656 | Sensor, Oven (Replaces: 7430P010-60) | 59 |
|
Immediately | $ 39.55 | |||
| 24 | 3418A030-34 | Hinge Assy. (rt) | 01 |
|
- | ||||
| 24 | 7103P045-60 | Nut, Nylon | 01 |
|
- | ||||
| 24 | 3418A029-34 | Hinge Assy. (lt) | 01 |
|
$ 48.47 | ||||
| 24 | 8016P008-60 | Glide, Oven Door Hinge | 01 |
|
- | ||||
| 24 | 3420A033-34 | Stop, Oven Door | 01 |
|
- | ||||
| 25 | 4001F020-19 | Housing, Lamp | 50 |
|
- | ||||
| 25 | 4001F020-13 | Housing | 01 |
|
- | ||||
| 26 | 8002P020-60 | Catch Assy. | 01 |
|
- | ||||
| 27 | 8009P018-60 | Lever, Door Lock | 54 |
|
- | ||||
| 27 | 8009P009-60 | Lever, Door Lock | 01 |
|
- | ||||
| 28 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 01 |
|
Immediately | $ 1.98 | |||
| 29 | 4009W053-80 | Lining, Inner Side | 20 |
|
- | ||||
| 29 | 4009W029-80 | Lining Assy, Inner Side | 01 |
|
- | ||||
| 30 | 4396923 | Pan, Broil (Replaces: 3401F004-23) | 01 |
|
Immediately | $ 52.04 | |||
| 30 | 7807P004-60 | Link, Switch | 01 |
|
- | ||||
| 30 | 7807P012-60 | Link, Door Lock | 54 |
|
- | ||||
| 30 | Y3413F01619 | Insert, Broil Pan | 60 |
|
- | ||||
| 30 | Y3401F02019 | Pan, Broil | 60 |
|
- | ||||
| 30 | 3413F002-23 | Insert, Broil Pan | 01 |
|
- | ||||
| 31 | 2618F073-71 | Panel, Side (wht)----na | 01 |
|
- | ||||
| 32 | 7113P002-60 | Pin, Hinge | 01 |
|
$ 9.05 | ||||
| 32 | 7801P030-60 | Rack, Oven | 01 |
|
$ 57.14 | ||||
| 33 | 7408P002-60 | Receptacle, Lamp | 01 |
|
- | ||||
| 34 | 3804F012-45 | Retainer, Lamp Guard | 01 |
|
- | ||||
| 35 | 7107P017-60 | Rivet | 01 |
|
- | ||||
| 36 | 3406F025-51 | Runner,outer | 01 |
|
- | ||||
| 36 | 3406F027-51 | Runner, Outer | 32 |
|
- | ||||
| 37 | Y7101P25460 | Leg, Leveling | 01 |
|
- | ||||
| 38 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 39 | 7118P001-60 | Screw, Broil Shield | 01 |
|
- | ||||
| 39 | 3604F092-45 | Shield, Broil | 01 |
|
- | ||||
| 40 | 3801F024-51 | Bracket | 01 |
|
- | ||||
| 40 | 3604F007-80 | Shield, Light Receptacle | 01 |
|
- | ||||
| 41 | 7112P019-60 | Clip, Hinge Pin | 01 |
|
- | ||||
| 42 | 8010P069-60 | Spacer, Hinge (main Top) | 01 |
|
$ 8.57 | ||||
| 43 | WP7803P058-60 | Spring, Oven Door (Replaces: 7803P058-60) | 01 |
|
$ 16.55 | ||||
| 44 | 3807F176-15 | Support, Broil Element | 01 |
|
- | ||||
| 45 | 3807F408-45 | Support, Catch Assy. | 41 |
|
- | ||||
| 45 | 3807F195-45 | Support, Catch Assy. | 01 |
|
- | ||||
| 46 | 3807F193-45 | Support, Lock Switch | 01 |
|
- | ||||
| 46 | 3807F422-45 | Support, Door Lock Switch | 54 |
|
- | ||||
| 47 | 3807F205-45 | Support, Oven Rear | 01 |
|
- | ||||
| 48 | 7403P099-60 | Switch, Ovn Lock Asy----na | 01 |
|
- | ||||
| 49 | 7505P041-60 | Catalyst Burner | 01 |
|
- | ||||
| 49 | 8026P003-60 | Tube, Oven Vent | 01 |
|
- | ||||
| 50 | 2002W028-81 | Top, Main (white) | 01 |
|
- | ||||
| 50 | 7112P073-60 | Clip, Top Retainer | 01 |
|
- | ||||
| 50 | 8003P011-60 | Spacer, Main Top | 01 |
|
- | ||||
| 51 | 7746P026-60 | Trim, Main Top (right) | 01 |
|
- | ||||
| 51 | 7746P025-60 | Trim, Main Top (left) | 01 |
|
- | ||||
| 52 | 330031 | Block, Surface Unit (Replaces: 7401P014-60) | 01 |
|
Immediately | $ 14.48 | |||
| 53 | 8016P005-60 | Glide, Front | 01 |
|
- |
