SELECT A DIAGRAM

01 - Body


02 - Control Panel

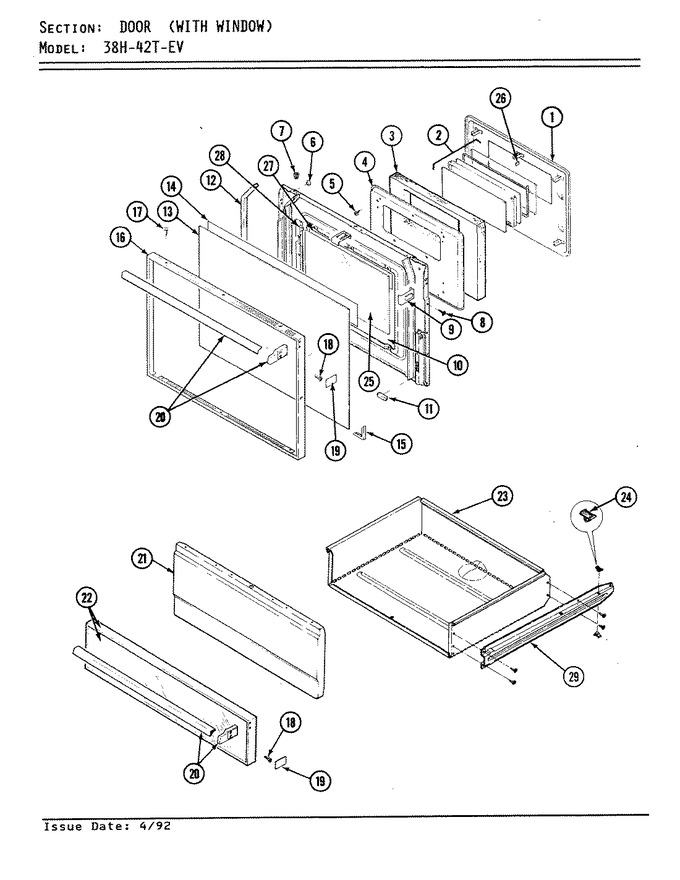

03 - Door/drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2410W041-15		Pad, Door	01	Appelez-nous	-
1	2410W041-19		Pad, Door	50	Appelez-nous	-
2	7201P018-60		Gasket, Window	01	Appelez-nous	-
2	5700A091-60		Window Pak Assy.	01	Appelez-nous	-
3	4804F006-60		Insulation Door Pad	01	Appelez-nous	-
4	2410F016-51		Pad, Inner	01	Appelez-nous	-
5	WP7101P126-60		Screw   (Replaces: 7101P061-60)	01		Immediately	$ 6.85
6	8003P009-60		Bumper, Door (square)	01	Appelez-nous	-
7	WP7103P114-60		Nut, Snap   (Replaces: 7103P114-60)	01			$ 9.89
8	7107P017-60		Rivet	01	Appelez-nous	-
9	7112P034-60		Clip, Door	01	Appelez-nous	-
10	2402W173-19		Lining	50	Appelez-nous	-
10	2402W173-15		Lining	01	Appelez-nous	-
11	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	01			$ 11.95
12	7208P002-60		Seal	01	Appelez-nous	-
13	7902P278-60		Glass Door	01	Appelez-nous	-
14	8270P078-60		Tape, Foil (29 1/2``)	01	Appelez-nous	-
15	8010P045-60		Spacer, Glass Corner	01	Appelez-nous	-
16	7706P243-60		Frame, Door	01	Appelez-nous	-
17	WP7101P126-60		Screw, Frame   (Replaces: 7101P126-60)	01		Immediately	$ 6.85
18	7101P123-60		Screw	01	Appelez-nous	-
19	7728P068-60		Insert, Handle (chrome)	01	Appelez-nous	-
20	7701P031-60		Handle, Door White	01	Appelez-nous	-
21	2416F013-71		Panel, Svc Door	01	Appelez-nous	-
22	5715A003-71K		+ Panel, Storage, Door	01	Appelez-nous	-
23	3405F008-80		Drawer, Service	01	Appelez-nous	-
24	8016P004-60		Glide, Drawer	01	Appelez-nous	-
24	8016P009-60		Glide, Drawer	32	Appelez-nous	-
24	8016P004-60		Glide, Drawer	32	Appelez-nous	-
25	7902P097-60		Glass, Inner	01			$ 63.87
26	7112P051-60		Clip, Retainer	01	Appelez-nous	-
27	8270P081-60		Tape, Foil 16 3/16``	01	Appelez-nous	-
28	3804F051-80		Retainer, Glass	01	Appelez-nous	-
29	3406F020-80		Runner, Inner	01	Appelez-nous	-
29	3406F026-80		Runner, Inner	32	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
