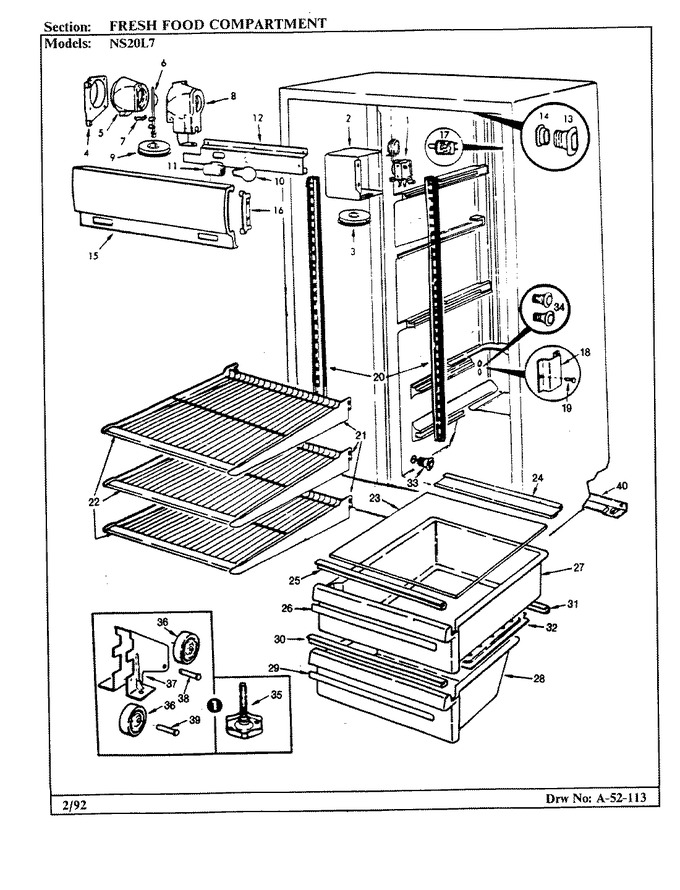

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	401012-1		Screw, Control Mounting		Appelez-nous	-
1	52881-39		Control, Temperature		Appelez-nous	-
1	67692-1		Insulation, Control		Appelez-nous	-
2	53682-10		Housing, Temperature Control		Appelez-nous	-
2	400053-1		Screw		Appelez-nous	-
3	29893-7		Knob, Temp. Control		Appelez-nous	-
4	53835-2		Orifice, Freezer Control		Appelez-nous	-
5	58767-1		Insulation, Housing		Appelez-nous	-
5	64958-1		Spacer Air Inlet		Appelez-nous	-
6	68610-2		Baffle, Freezer Control		Appelez-nous	-
7	52648-1		Spring, Baffle		Appelez-nous	-
8	400027-1		Screw		Appelez-nous	-
8	67354-1		Housing, Frz. Control		Appelez-nous	-
9	402005-103		Screw		Appelez-nous	-
9	29893-12		Knob		Appelez-nous	-
10	W10887190		Bulb, Light (60w)   (Replaces: 55771-2)			Immediately	$ 16.48
11	68974-2		Receptacle, Light		Appelez-nous	-
12	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
12	69081-1		Housing		Appelez-nous	-
13	57410-1		Tunnel		Appelez-nous	-
14	57411-1		Retainer		Appelez-nous	-
15	65578-27		Shield, Light		Appelez-nous	-
16	53686-2		Support		Appelez-nous	-
16	495032-900		Plug		Appelez-nous	-
16	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
17	56432-2		Switch		Appelez-nous	-
18	62128-1		Air Deflector		Appelez-nous	-
19	28013-2		Rivet, Air Tunnel		Appelez-nous	-
20	58381-4		Rail, Shelf Support		Appelez-nous	-
20	400037-28		Screw		Appelez-nous	-
21	65606-7		Shelf, Wire		Appelez-nous	-
22	66649-1		Trim		Appelez-nous	-
23	65687-1		Shelf, Crisper (glass)		Appelez-nous	-
24	66092-1		Seal		Appelez-nous	-
25	66650-1		Trim		Appelez-nous	-
26	68124-77		Insert		Appelez-nous	-
27	66636-48		Pan, Crisper		Appelez-nous	-
28	66636-49		Pan, Meat		Appelez-nous	-
29	68124-77		Insert		Appelez-nous	-
30	65648-1		Seal, Meat Pan (front)		Appelez-nous	-
31	65649-1		Seal, Meat Pan (rear)		Appelez-nous	-
32	65608-3		Cover, Meat Pan		Appelez-nous	-
33	53726-2		Tunnel, Air (meat)		Appelez-nous	-
34	53726-1		Air Tunnel		Appelez-nous	-
35	W11117769		Leg, Leveling   (Replaces: 6012-8)			Immediately	$ 16.61
36	29834-2		Wheel		Appelez-nous	-
37	400062-1		Screw		Appelez-nous	-
37	52846-1		Bracket		Appelez-nous	-
38	64965-3		Pin, Wheel (rear)		Appelez-nous	-
39	64965-1		Pin, Wheel		Appelez-nous	-
40	3400518		Screw   (Replaces: 65275-42)				$ 11.68
40	67255-1		Support Rail		Appelez-nous	-
