SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment

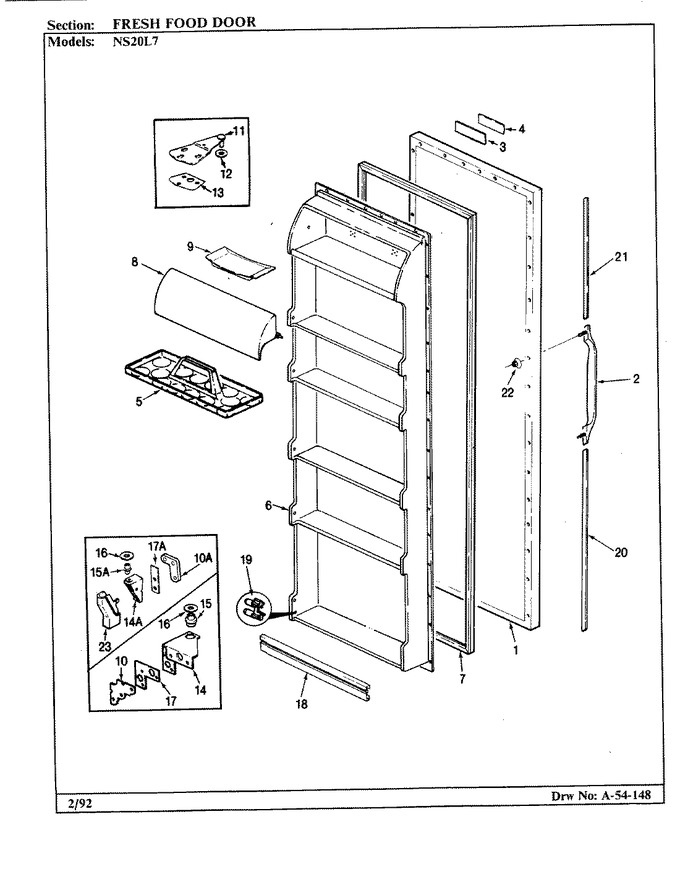

04 - Fresh Food Door


05 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	RA95060-1		Insulation Kit		Appelez-nous	-
1	68458-3-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	63686-5		Handle		Appelez-nous	-
3	W10124350		Not Required Part Or See Note		Appelez-nous	-
4	66982-16		Insert		Appelez-nous	-
5	60066-1		Tray, Egg		Appelez-nous	-
6	65275-5		Screw		Appelez-nous	-
6	65944-9		Liner, Door		Appelez-nous	-
7	66929-27		Gasket		Appelez-nous	-
8	66184-181		Door, Dairy		Appelez-nous	-
9	29936-2		Tray, Butter		Appelez-nous	-
10	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-
11	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
11	53709-18		Door Hinge, Upper		Appelez-nous	-
12	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
13	65031-1		Shim, Upper Hinge		Appelez-nous	-
14	403062-5		Screw		Appelez-nous	-
14	67714-10		Hinge, Lower		Appelez-nous	-
15	68788-1		Hinge Pin		Appelez-nous	-
16	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
17	60626-1		Shim, Lower Hinge		Appelez-nous	-
18	WP61003045		Trim   (Replaces: 68832-14)				$ 129.55
19	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
20	68657-9		Trim		Appelez-nous	-
21	68657-10		Trim		Appelez-nous	-
22	434003-506		Fastener		Appelez-nous	-
23	W10124350		Not Required Part Or See Note		Appelez-nous	-
