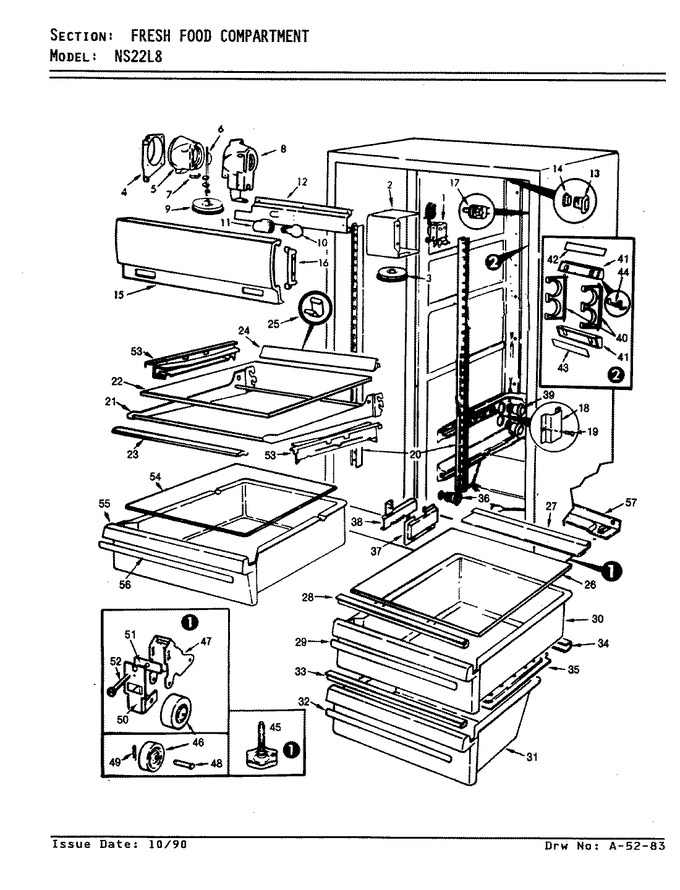

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	VC1RF		Control, Temperature   (Replaces: 52881-23)			Immediately	$ 35.95
1	401012-1		Screw, Control Mounting		Appelez-nous	-
1	67692-1		Insulation, Control		Appelez-nous	-
2	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
2	53682-10		Housing, Temperature Control		Appelez-nous	-
3	29893-7		Knob, Temp. Control		Appelez-nous	-
4	53835-2		Orifice, Freezer Control		Appelez-nous	-
4	64958-1		Spacer Air Inlet		Appelez-nous	-
5	58767-1		Insulation, Housing		Appelez-nous	-
6	68613-1		Baffle		Appelez-nous	-
7	52648-1		Spring, Baffle		Appelez-nous	-
8	400027-1		Screw		Appelez-nous	-
8	67354-1		Housing, Frz. Control		Appelez-nous	-
9	29893-12		Knob		Appelez-nous	-
9	402005-103		Screw		Appelez-nous	-
10	W10887190		Bulb, Light (60w)   (Replaces: 55771-2)			Immediately	$ 16.48
11	29814-2		Receptacle, Light		Appelez-nous	-
12	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
12	59740-2		Housing, Light Socket & Wires		Appelez-nous	-
13	57410-1		Tunnel		Appelez-nous	-
14	57411-1		Retainer		Appelez-nous	-
15	65578-28		Shield, Light		Appelez-nous	-
16	495032-900		Plug		Appelez-nous	-
16	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
16	53686-2		Support		Appelez-nous	-
17	56432-2		Switch		Appelez-nous	-
18	62128-1		Air Deflector		Appelez-nous	-
19	28013-2		Rivet, Air Tunnel		Appelez-nous	-
20	58381-4		Rail, Shelf Support		Appelez-nous	-
20	400037-1		Screw		Appelez-nous	-
21	65618-3		Frame, Shelf		Appelez-nous	-
22	66604-36		Shelf, Glass		Appelez-nous	-
23	66649-2		Trim, Shelves (front)		Appelez-nous	-
24	65276-15		Trim, Shelves (rear)		Appelez-nous	-
25	66333-1		Clip, Shelf Trim		Appelez-nous	-
26	66604-38		Shelf, Crisper		Appelez-nous	-
27	66092-2		Crisper Seal		Appelez-nous	-
28	66650-2		Seal, Crisper Pan (front)		Appelez-nous	-
29	68124-79		Insert		Appelez-nous	-
30	66636-43		Pan, Crisper		Appelez-nous	-
31	66636-44		Pan, Meat		Appelez-nous	-
32	68124-79		Insert		Appelez-nous	-
33	65648-2		Seal, Meat Pan (front)		Appelez-nous	-
34	65649-2		Seal, Meat Pan (rear)		Appelez-nous	-
35	65608-4		Cover, Meat Pan		Appelez-nous	-
36	53726-2		Tunnel, Air (meat)		Appelez-nous	-
37	65737-2		Control Housing		Appelez-nous	-
38	56686-4		Clip		Appelez-nous	-
38	65736-1		Slide Control, (meat)		Appelez-nous	-
39	53726-1		Air Tunnel		Appelez-nous	-
40	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
40	56519-1		Rack		Appelez-nous	-
41	65689-1		Support, Wine Rack		Appelez-nous	-
42	68821-13		Insert		Appelez-nous	-
43	68821-14		Insert		Appelez-nous	-
44	58057-1		Spring, Wine Rack		Appelez-nous	-
45	W11117769		Leg, Leveling   (Replaces: 6012-8)			Immediately	$ 16.61
46	29834-2		Wheel		Appelez-nous	-
47	62794-1		Bracket, Wheel		Appelez-nous	-
47	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
48	62580-2		Axle		Appelez-nous	-
49	62581-1		Clip, Retaining Wheel (rear)		Appelez-nous	-
50	62795-1		Faceplate Bracket		Appelez-nous	-
51	59101-1		Tapping Plate, Wheel		Appelez-nous	-
52	56487-2		Screw, Wheel Adjustment		Appelez-nous	-
53	66812-1		Slide Rail		Appelez-nous	-
54	66604-37		Shelf, Deli		Appelez-nous	-
55	66636-42		Pan, Deli		Appelez-nous	-
56	68124-79		Insert		Appelez-nous	-
57	67255-2		Support Rail Rear		Appelez-nous	-
57	3400518		Screw   (Replaces: 65275-42)				$ 11.68
