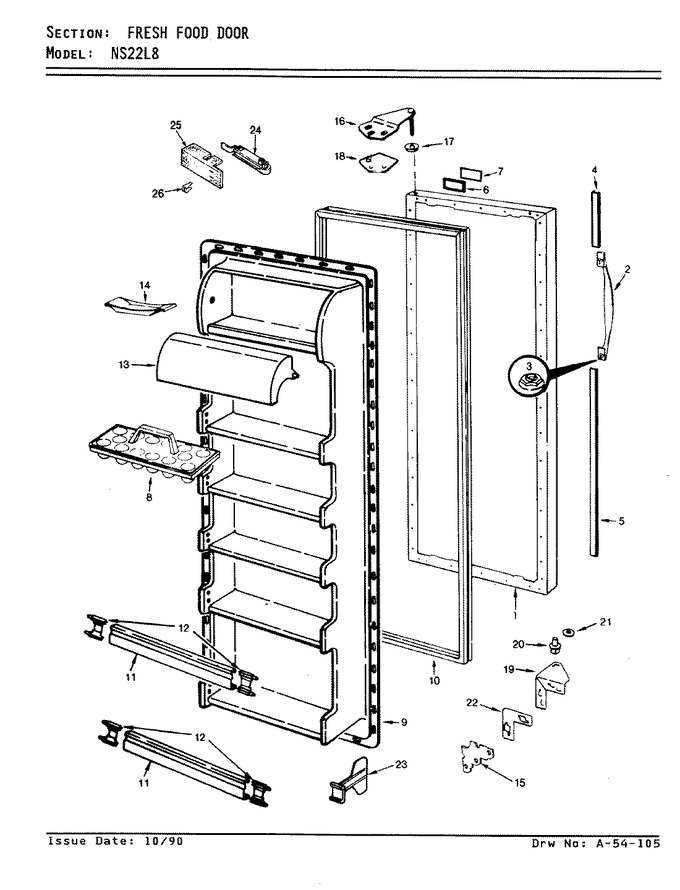

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72048-4-AM		Panel, Outer Door		Appelez-nous	-
2	63686-5		Handle		Appelez-nous	-
3	434003-506		Fastener		Appelez-nous	-
4	68657-10		Trim		Appelez-nous	-
5	68657-9		Trim		Appelez-nous	-
6	66612-1		Nameplate		Appelez-nous	-
7	66724-1		Insert		Appelez-nous	-
8	60066-1		Tray, Egg		Appelez-nous	-
9	65945-10		Liner, F.f. Door		Appelez-nous	-
9	65275-5		Screw		Appelez-nous	-
10	66929-2		Gasket		Appelez-nous	-
11	WP61003045		Trim   (Replaces: 68832-15)				$ 129.55
12	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
13	66184-182		Door, Dairy		Appelez-nous	-
14	29936-2		Tray, Butter		Appelez-nous	-
15	65964-2		Tapping Plate		Appelez-nous	-
16	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
16	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
16	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
17	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
18	65031-1		Shim, Upper Hinge		Appelez-nous	-
19	403100-801		Screw		Appelez-nous	-
19	67714-10		Hinge, Lower		Appelez-nous	-
20	68788-1		Hinge Pin		Appelez-nous	-
21	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
22	60626-1		Shim, Lower Hinge		Appelez-nous	-
23	64097-11		Organizer, Shelf		Appelez-nous	-
24	54485-2		Door Closure		Appelez-nous	-
25	52613-1		Insulation, Closer		Appelez-nous	-
26	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
26	52614-1		Bracket, Closer		Appelez-nous	-
