SELECT A DIAGRAM

Diagram for 01 - Freezer Compartment
01 - Freezer Compartment

Diagram for 02 - Freezer Door
02 - Freezer Door

Diagram for 03 - Fresh Food Compartment
03 - Fresh Food Compartment

Diagram for 04 - Fresh Food Door
04 - Fresh Food Door

Diagram for 05 - Unit Compartment & System
05 - Unit Compartment & System


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 54423-1 Orifice Appelez-nous -
2 53837-1 Shield Appelez-nous -
3 52077-10 Seal Appelez-nous -
4 62690-34 Cover, Coil Appelez-nous -
4 400015-12 Screw Appelez-nous -
5 59920-1 Stud, Mounting Coil Cover Appelez-nous -
6 53933-1 Plug Appelez-nous -
7 52077-17 Seal Appelez-nous -
8 52077-19 Seal,upper Coil Cover To Liner Appelez-nous -
9 52824-6 Coil Seal Appelez-nous -
10 29814-2 Receptacle, Light Appelez-nous -
11 40A15 Bulb, Light (40 Watt)   (Replaces: 31956) In-Stock Immediately $ 1.98

12 56432-2 Switch Appelez-nous -
13 65654-2 Shield, Light Appelez-nous -
14 53687-2 Support Appelez-nous -
15 54424-2 Support Appelez-nous -
16 65706-1 Insert Special Order $ 26.72

17 495032-900 Plug Appelez-nous -
18 56488-3 Motor, Fan Freezer Appelez-nous -
19 52120-1 Blade, Fan Frzr. Appelez-nous -
20 64856-2 Bracket, Fan Motor Appelez-nous -
21 WP67006908 Screw   (Replaces: 400022-1) In-Stock Immediately $ 7.16

21 62689-1 Fan Grid Appelez-nous -
22 65224-1 Cover, Coil Appelez-nous -
23 57117-8 Heater Appelez-nous -
23 57492-5-AM Divider Appelez-nous -
23 9986-111 Screw Appelez-nous -
24 57369-2 Gasket Appelez-nous -
25 56142-1 Nut, Motor Box Appelez-nous -
25 54036-6 Breaker Frame Appelez-nous -
26 400017-103 Screw Appelez-nous -
26 57402-6 Cover Appelez-nous -
27 29814-2 Receptacle, Light Appelez-nous -
28 W11679940 Light Bulb (25w,125v)   (Replaces: 2386-1) In-Stock Immediately $ 10.17

29 56432-2 Switch Appelez-nous -
29 65512-1 Spacer Appelez-nous -
30 53821-1 Nut Appelez-nous -
31 26527-5 Drain Tube Appelez-nous -
32 52526-1 Grommet Appelez-nous -
33 53727-1 Retainer, Air Tunnel Appelez-nous -
34 53727-1 Retainer, Air Tunnel Appelez-nous -
35 65651-6 Shelf, Frz. Appelez-nous -
36 65651-5 Shelf, Frz. Appelez-nous -
37 65651-4 Shelf, Frz. Appelez-nous -
38 65568-2 Trim Appelez-nous -
39 65577-2 Drawer, Frz. Appelez-nous -
40 65583-16 Insert Appelez-nous -
41 WP61002140 Ice Cube Tray   (Replaces: 60112-1) Special Order $ 18.23

42 65718-1 Pan, Ice Appelez-nous -
43 57418-1 Clip,food Liner Mount.(slides) Appelez-nous -
43 60614-3 Insert Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

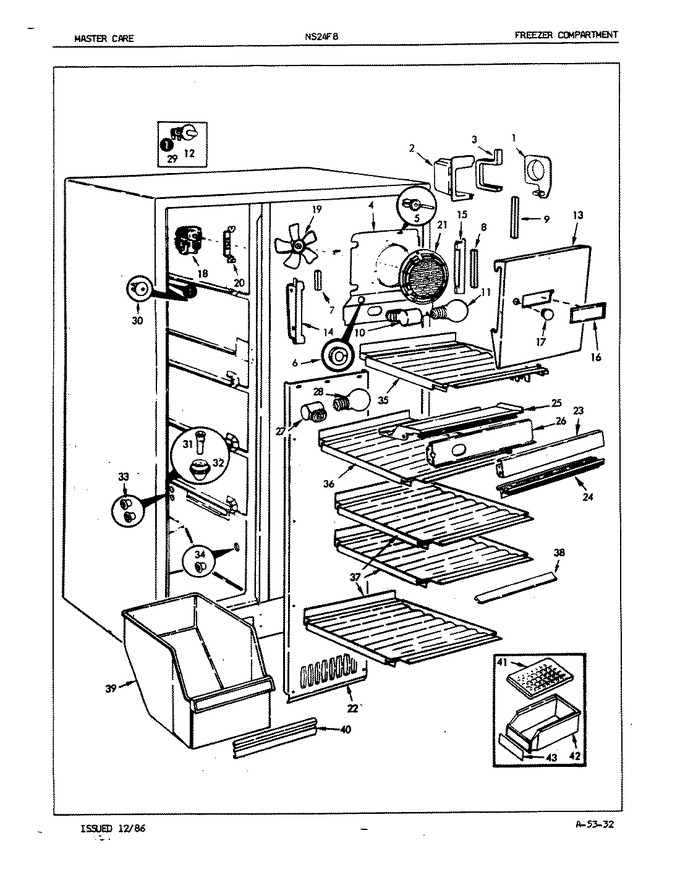

Diagram for NS24F8A (BOM: 5L48A)
