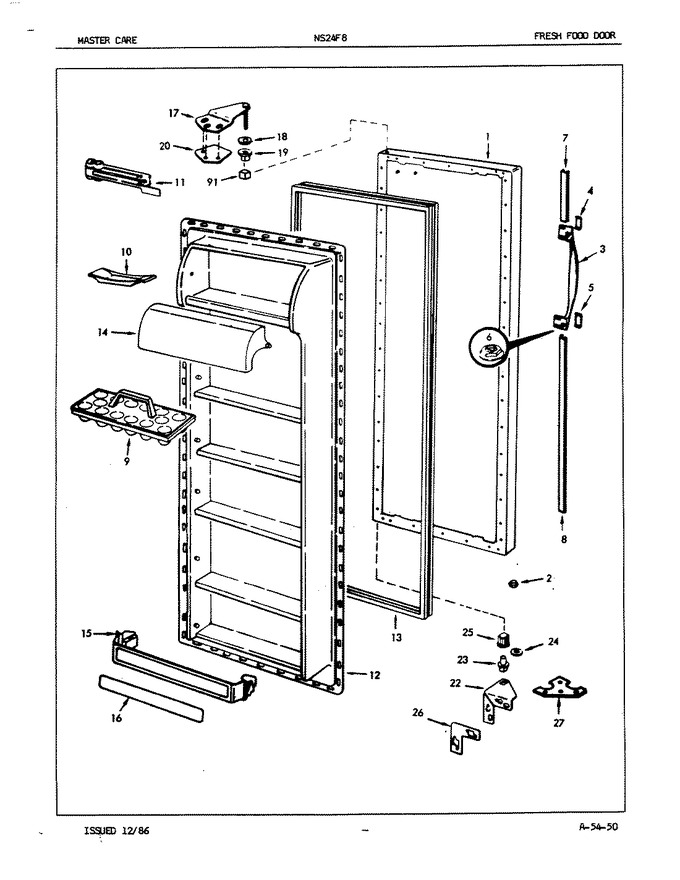

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	62391-13-AM		Panel, Outer Door		Appelez-nous	-
1	RA95060-1		Insulation Kit		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	60194-1		Handle		Appelez-nous	-
4	60111-2		Insert		Appelez-nous	-
5	60111-3		Insert		Appelez-nous	-
6	434003-506		Fastener		Appelez-nous	-
7	65775-1		Upr Handle Ext		Appelez-nous	-
8	65775-2		Lwr Handle Ext		Appelez-nous	-
9	60066-3		Tray, Egg		Appelez-nous	-
10	29936-2		Tray, Butter		Appelez-nous	-
11	52613-1		Insulation, Closer		Appelez-nous	-
11	54485-1		Closer, Door		Appelez-nous	-
11	52614-1		Bracket, Closer		Appelez-nous	-
12	65640-1		Liner, Door		Appelez-nous	-
12	9986-12		Screw,door Liner		Appelez-nous	-
13	53712-2		Gasket		Appelez-nous	-
14	66184-402		Door, Dairy		Appelez-nous	-
14	65589-202		Door, Dairy		Appelez-nous	-
15	65781-2		Shelf Front		Appelez-nous	-
16	65571-4		Insert		Appelez-nous	-
17	53709-16		Upper Hinge,(chrome)		Appelez-nous	-
17	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
18	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
19	66036-2		Bushing, Upper Hinge		Appelez-nous	-
20	65031-1		Shim, Upper Hinge		Appelez-nous	-
21	55990-1		Seal Sleeve		Appelez-nous	-
22	60630-12		Hinge, Lower		Appelez-nous	-
22	403062-5		Screw		Appelez-nous	-
23	53672-1		Pin, Lower Hinge		Appelez-nous	-
24	54233-1		Washer				$ 7.71
25	66034-1		Bushing, Lower Hinge				$ 19.76
26	60626-1		Shim, Lower Hinge		Appelez-nous	-
27	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-
