SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Shelves & Accessories

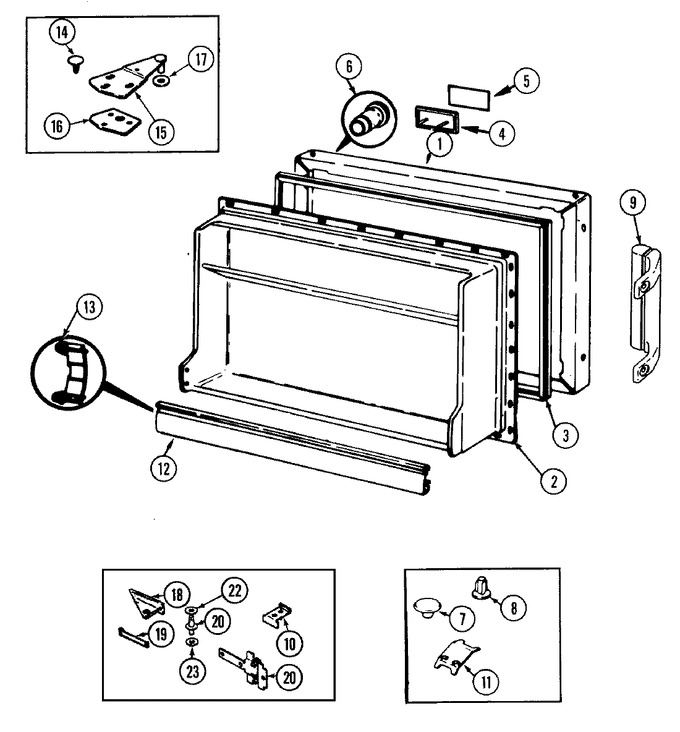

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72345-9-WW		Panel, Frz. Door (wht)		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
2	69464-1		Liner		Appelez-nous	-
3	70020-1		Gasket, Door		Appelez-nous	-
4	66986-6		Bezel, Nameplate		Appelez-nous	-
5	66982-12		Insert, Nameplate (holiday)		Appelez-nous	-
6	29356-1		Retainer, Nameplate		Appelez-nous	-
7	67634-2		Plug Button, Hinge Cup (wht)		Appelez-nous	-
8	55782-10		Plug Button, Hdle & Door Stop		Appelez-nous	-
8	69480-1		Plug Button		Appelez-nous	-
9	65275-60		Screw		Appelez-nous	-
9	69168-4		Handle, Door (wht)				$ 69.03
10	60030-1		Door Stop		Appelez-nous	-
10	65275-48		Screw		Appelez-nous	-
11	60123-2		Clip, Stop Screw		Appelez-nous	-
12	WP61003045		Trim   (Replaces: 68832-3)				$ 129.55
13	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
14	56144-13		Plug Button, Upper Hinge (wht)		Appelez-nous	-
15	53709-20		Hinge, Upper		Appelez-nous	-
15	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
16	65031-1		Shim, Upper Hinge		Appelez-nous	-
17	54233-7		Washer		Appelez-nous	-
18	65275-55		Screw		Appelez-nous	-
18	69514-2		Hinge, Center		Appelez-nous	-
19	69515-1		Shim, Center Hinge		Appelez-nous	-
20	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
21	69517-1		Pin, Center Hinge		Appelez-nous	-
22	67483-6		Washer		Appelez-nous	-
23	54233-2		Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
