SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Shelves & Accessories

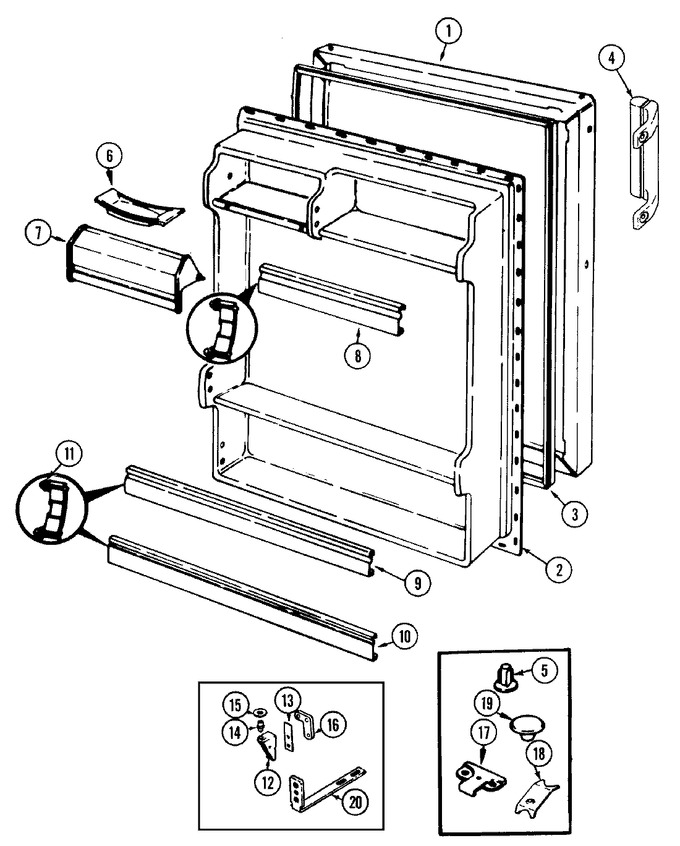

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72349-8-WW		Panel, F.f. Door (wht)		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
2	69443-1		Liner, F.f. Door		Appelez-nous	-
3	70020-2		Gasket, Door		Appelez-nous	-
4	65275-60		Screw		Appelez-nous	-
4	69168-4		Handle, Door (wht)				$ 69.03
5	69480-1		Plug Button		Appelez-nous	-
5	55782-10		Plug Button, Hdle & Door Stop		Appelez-nous	-
6	29936-2		Tray, Butter		Appelez-nous	-
7	69058-3		Door, Dairy		Appelez-nous	-
8	WP61003045		Trim, Door Shelf   (Replaces: 65151-344)				$ 129.55
9	WP61003045		Trim, Door Shelf   (Replaces: 65151-95)				$ 129.55
10	WP61003045		Trim, Door Shelf   (Replaces: 65151-113)				$ 129.55
11	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
12	69516-2		Hinge, Lower (blk)		Appelez-nous	-
12	403100-1		Screw		Appelez-nous	-
13	69510-1		Shim, Lower Hinge		Appelez-nous	-
14	69845-1		Pin, Lower Hinge				$ 44.55
15	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
16	403100-1		Screw		Appelez-nous	-
16	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
17	65275-48		Screw		Appelez-nous	-
17	60419-10		Door Stop		Appelez-nous	-
18	56209-3		Clip, Stop Screw		Appelez-nous	-
19	67634-2		Plug Button, Hinge Cup (wht)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
