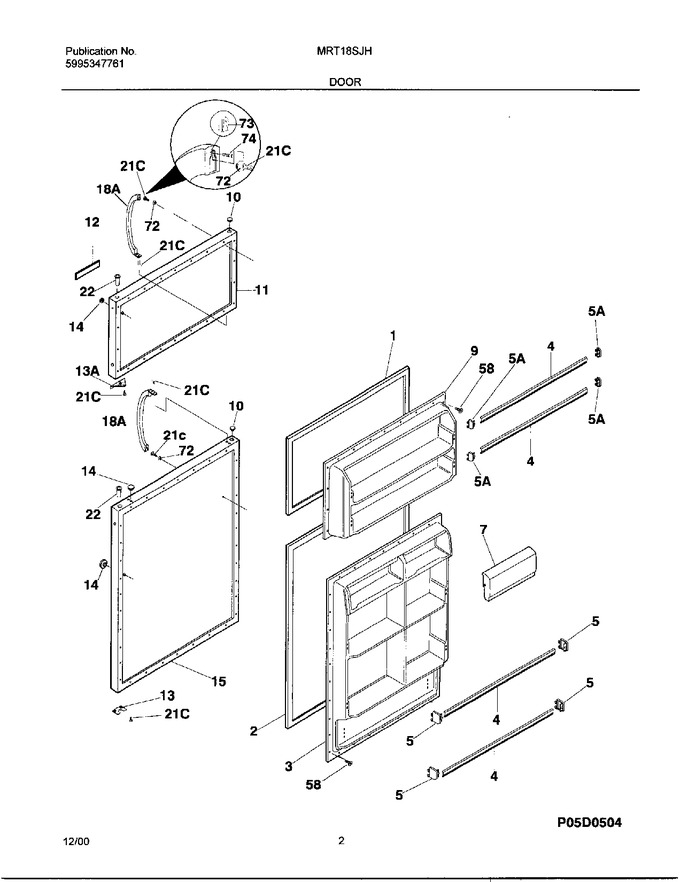

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Door
04 - Cabinet
06 - Shelves
08 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 218360001 | Panel-inner Door, Refr |
|
$ 453.98 | |||||
| 4 | 218027041 | Rack-door, 23.81`` X 1.62`` |
|
- | |||||
| 5 | 215267701 | Support-door Rack,``2-liter`` ,rh/lh |
|
Immediately | $ 7.79 | ||||
| 7 | 218287816 | Door-dairy, 10.71`` Wide |
|
- | |||||
| 9 | 218360101 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303917805 | Panel-frzr Door, White, W/insulation |
|
- | |||||
| 11 | 5303917807 | Panel-frzr Door, Almond, W/insulation |
|
- | |||||
| 12 | 218439131 | Nameplate Assy,almond ,with Magnet |
|
- | |||||
| 12 | 218439130 | Nameplate Assy,white ,with Magnet |
|
- | |||||
| 13 | 218800300 | Door Stop,plated |
|
- | |||||
| 14 | 218915702 | Plug-button,almond |
|
- | |||||
| 14 | 240494001 | Plug-button, White (Replaces: 218915701) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303917808 | Panel-refr Door, Almond, W/insul & Brace |
|
- | |||||
| 15 | 5303917806 | Panel-refr Door, White, W/insul & Brace |
|
- | |||||
| 22 | 218519300 | Bearing-hinge |
|
$ 14.60 | |||||
| 58 | 218749600 | Screw,10 Pan Hd ,8-18 X .5 |
|
$ 5.15 | |||||
| 72 | 218397000 | Button-handle Mtg, Dovetail |
|
$ 16.74 | |||||
| 73 | 218396700 | Block-handle Mtg, Dovetail |
|
Immediately | $ 45.36 | ||||
| 74 | 215503203 | Screw,cr Pan Hd `10-16 X 0.500 (Replaces: 215503200) |
|
Immediately | $ 7.09 | ||||
| 13A | 218249001 | Door Stop, White, Frzr Section |
|
$ 82.06 | |||||
| 13A | 218249002 | Door Stop, Almond, Frzr Section |
|
$ 47.88 | |||||
| 18A | 218428102 | Handle-door, Almond, W/block & Screw |
|
- | |||||
| 18A | 218428101 | Handle-door, White, W/block & Screw |
|
Immediately | $ 22.73 | ||||
| 21C | 218252201 | Screw,8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 5A | 215473602 | Support-door Rack,rh/lh |
|
Immediately | $ 11.58 | ||||
| F1 | 215608916 | Gasket-frzr Door, White, Magnetic |
|
$ 258.30 | |||||
| F2 | 5303207345 | Gasket-refr Door, White, Magnetic (Replaces: 218730605) |
|
Immediately | $ 188.19 | ||||
| NI | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| NI | 215518000 | Magnet-nameplate |
|
- | |||||
| NI | 218428202 | Frame-nameplate, Almond |
|
- | |||||
| NI | 218428201 | Frame-nameplate, White |
|
- |
