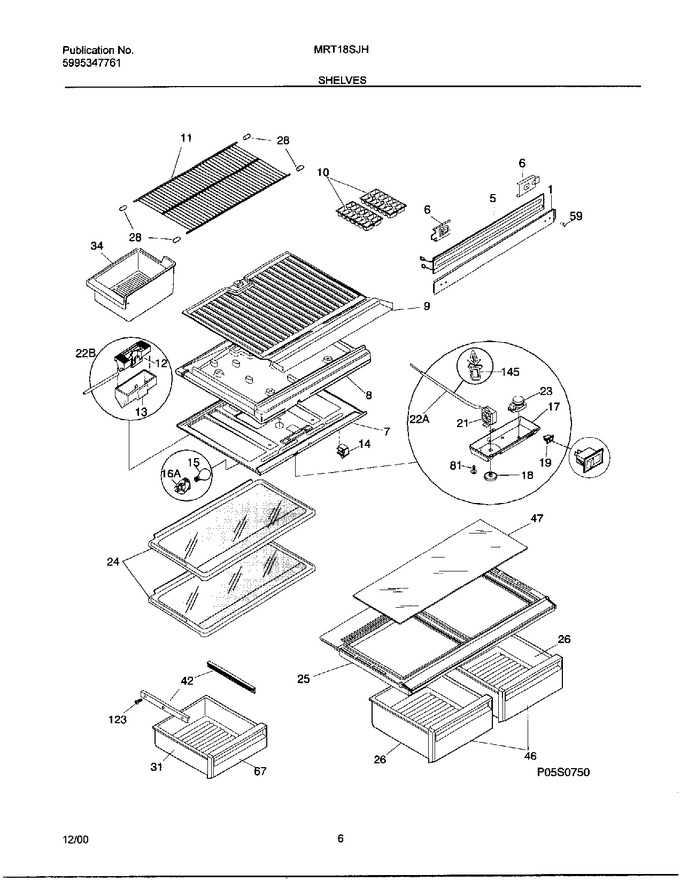

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218874311		Mullion,almond		Appelez-nous	-
1	218874301		Mullion,white		Appelez-nous	-
6	218845602		Tapping Plate,mullion Mtg				$ 14.86
7	218814800		Panel-top,refr Cavity		Appelez-nous	-
8	218872903		Divider,styrofoam ,w/foil Tape				$ 150.30
9	218814700		Panel-bottom,frzr Cavity				$ 288.94
10	215667501		Tray-ice,plastic (optiional Accessory)			Immediately	$ 6.07
11	5303288242		Shelf, Freezer, Fixed/flat, Full Width, Wire				$ 403.31
12	218730000		Deflector-air				$ 57.60
13	218631001		Cover-air Deflector				$ 55.19
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
17	5304414816		Control Box		Appelez-nous	-
18	5303311079		Knob-temp Control		Appelez-nous	-
24	218770902		Shelf-``spill-safe``				$ 91.90
25	5303207340		Cover-crisper Pan, With Beam, Less Insert				$ 265.80
26	3206438		Pan-crisper			Immediately	$ 227.80
28	3201150		End Cap-shelf,protector ,frzr Shelf				$ 4.57
31	215742602		Pan-meat				$ 174.40
34	3018945		Container-ice		Appelez-nous	-
42	218971202		Hanger-meat Pan,lh				$ 60.96
42	218971302		Hanger-meat Pan,rh				$ 73.71
46	5303319069		Front-crisper Pan		Appelez-nous	-
47	218390558		Insert-pan Cover, Glass		Appelez-nous	-
59	240442708		Screw,pan Hd,10-32 X 0.625,hinge/mull,thrd Form   (Replaces: 218188000)				$ 8.34
67	5303323258		Front-meat Pan		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	215005101		Screw-roller/hanger`8-10 X 0.438   (Replaces: 215005100)				$ 14.89
145	218660800		Clip, Plastic, Temp Sensor Mtg, Snap-in		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 218906801)				$ 17.72
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
22B	218731104		Tube, Pvc, White, @ Air Deflector, Insulator				$ 35.64
F14	5309918806		Switch-light/lamp			Immediately	$ 21.97
F19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
F21	5304404821		Control-temperature			Immediately	$ 164.57
F23	215846602		Timer-defrost,60 Hz ,120 V ,10 Hour/21 Min   (Replaces: 215846605)			Immediately	$ 28.20
F5	218781003		ú Heater-mullion				$ 103.79
NI	218780900		Tab-hanger Mtg,shelf Rear				$ 28.54
NI	218878500		Wiring Harness,control/divider				$ 105.99
NI	5303299664		Spacer-shelf				$ 24.10
NI	5303001449		Seal-air Deflector,foam Plastic ,(2)				$ 2.12
NI	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
NI	5308016567		Nut-anchor		Appelez-nous	-
NI	5303001260		Screw				$ 6.73
NI	218780800		Tab-hanger Mtg,shelf Front				$ 33.65
