SELECT A DIAGRAM

01 - Top Mount Refrigerator


02 - Door Section


03 - Cabinet W/fan Assembly


04 - Shelves, Controls, Divider, Mullion


05 - Cooling System

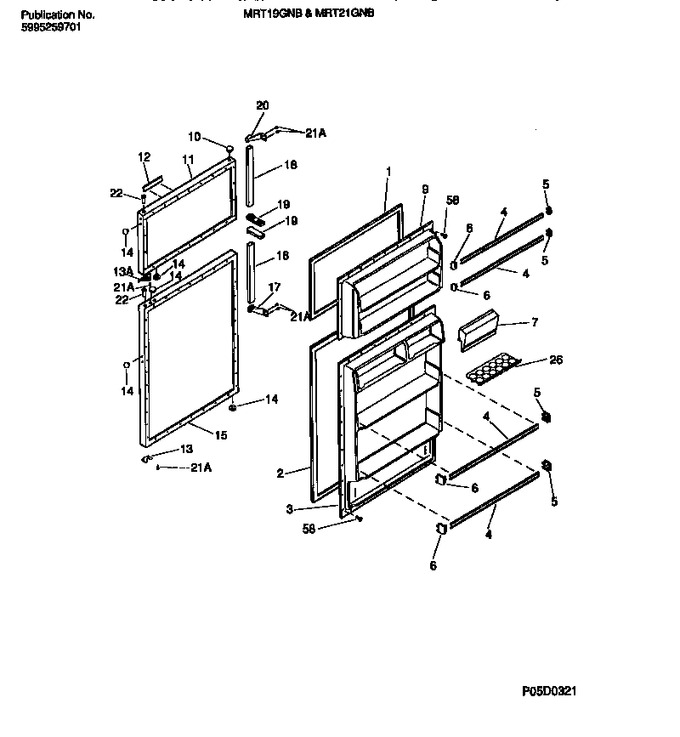

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608913		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	215732413		Gasket-refr Door, White, Magnetic		Appelez-nous	-
3	5303212482		Panel-inner Door, Refr		Appelez-nous	-
4	5303281388		Rack-door		Appelez-nous	-
5	5303007295		Support-door Rack, Rh				$ 32.55
6	5303007297		Support-door Rack, Lh				$ 64.58
7	5303300066		Door-dairy		Appelez-nous	-
9	5318540802		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917423		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	215366301		Frame - Nameplate,white		Appelez-nous	-
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	3916425		Panel-refr Door,white		Appelez-nous	-
17	5303001015		Handle End				$ 74.29
18	5303302990		Handl-door,white				$ 86.15
19	5303001296		Handle End, (2)				$ 86.36
20	5303001014		Handle End		Appelez-nous	-
21	5308011745		Screw				$ 10.38
22	5308012007		Bearing-hinge		Appelez-nous	-
26	215817806		Tray-egg				$ 13.46
58	5308002748		Screw		Appelez-nous	-
*80240	5303917276		Insulation-door, Fiberglas, (bulk) (non-illustrated)				$ 330.91
12A	5315340760		Tape, Adhesive, 60`` Lg, Foam, Trim / Nameplate, Double Faced (non-illustrated)		Appelez-nous	-
12B	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double-faced (non-illustrated)		Appelez-nous	-
13A	218249001		Door Stop, White, Frzr				$ 82.06
21A	218252201		Screw, Cr Truss Head, 10-32(ca) X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
4A	5303281388		Rack-door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
