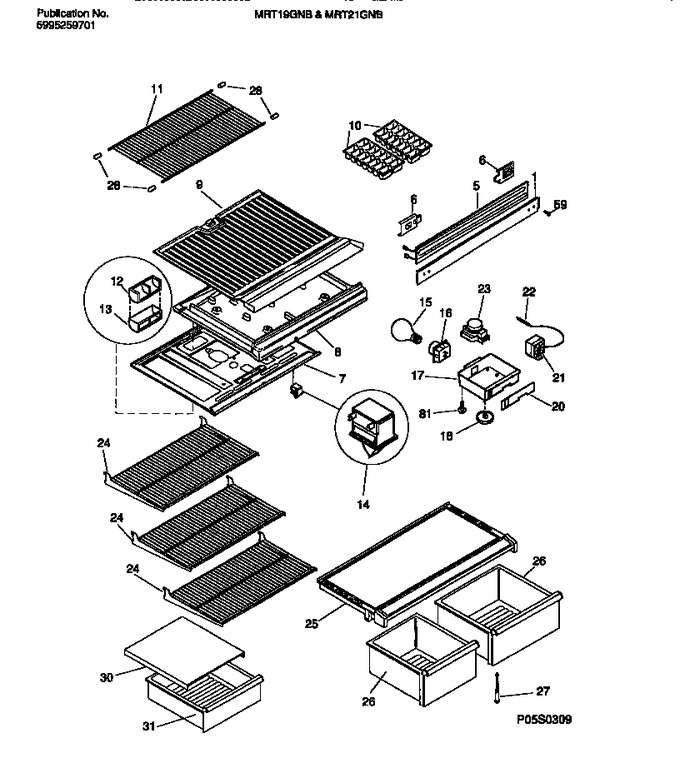

01 - Top Mount Refrigerator
02 - Door Section
03 - Cabinet W/fan Assembly
04 - Shelves, Controls, Divider, Mullion
05 - Cooling System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218252503 | Mullion, White |
|
- | |||||
| 5 | 218271402 | Heater-mullion |
|
- | |||||
| 6 | 218279800 | Tapping Plate, Mullion Mtg, (2) |
|
- | |||||
| 7 | 5303001651 | Top Panel-refr, W/snap Bushing |
|
- | |||||
| 8 | 5308013674 | Divider-styrofoam |
|
- | |||||
| 10 | 215667501 | Tray-ice,plastic (optiional Accessory) |
|
Immediately | $ 6.07 | ||||
| 11 | 218159700 | Spacer-frzr Shelf |
|
- | |||||
| 12 | 5308001546 | Deflector-air |
|
- | |||||
| 13 | 5303001546 | Cover - Air Deflector |
|
- | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp |
|
- | |||||
| 16 | 5308000129 | Socket-light/lamp |
|
$ 62.16 | |||||
| 17 | 5303015152 | Box-control |
|
- | |||||
| 18 | 5303300067 | Knob-temp Control |
|
- | |||||
| 19 | 5303001670 | Switch-energy Saver (non-illustrated) |
|
- | |||||
| 20 | 215611400 | Label-control Box |
|
- | |||||
| 21 | 5303200810 | Control-temperature |
|
$ 126.87 | |||||
| 22 | 5303916855 | Sleeve-plastic Tube |
|
$ 60.96 | |||||
| 23 | 215846602 | Timer (Replaces: 215267800) |
|
Immediately | $ 28.20 | ||||
| 24 | 5303209082 | Shelf,cantilever,full Width,wire,white |
|
$ 173.41 | |||||
| 25 | 5303007603 | Cover-crisper Pan |
|
- | |||||
| 26 | 5303290369 | Pan-crisper, 14.35`` Wide |
|
- | |||||
| 27 | 5303205987 | Support-crisper Cvr, Adjustable |
|
$ 48.41 | |||||
| 28 | 3201150 | Cap-protector |
|
$ 4.57 | |||||
| 30 | 08009763 | Cover-meat Pan |
|
$ 102.27 | |||||
| 31 | 5303297512 | Pan-meat |
|
- | |||||
| 59 | 240442708 | Screw-hinge/mullion , 10-32 X 5/8 (Replaces: 218188000) |
|
$ 8.34 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 11A | 5303288243 | Shelf-freezer, Fixed/flat, Full Width, Wire |
|
- | |||||
| 17A | 5308016567 | Nut-anchor (non-illustrated) |
|
- | |||||
| 21A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 23A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 26A | 5303290770 | Pan-crisper, 11.35`` Wide |
|
$ 172.62 | |||||
| 7A | 5303212518 | Bushing,snap-in,plastic |
|
- | |||||
| 7B | 5303001380 | Screw |
|
- | |||||
| 8A | 3001475 | Harness-wiring, Control/divider (non-illustrated) |
|
- |
