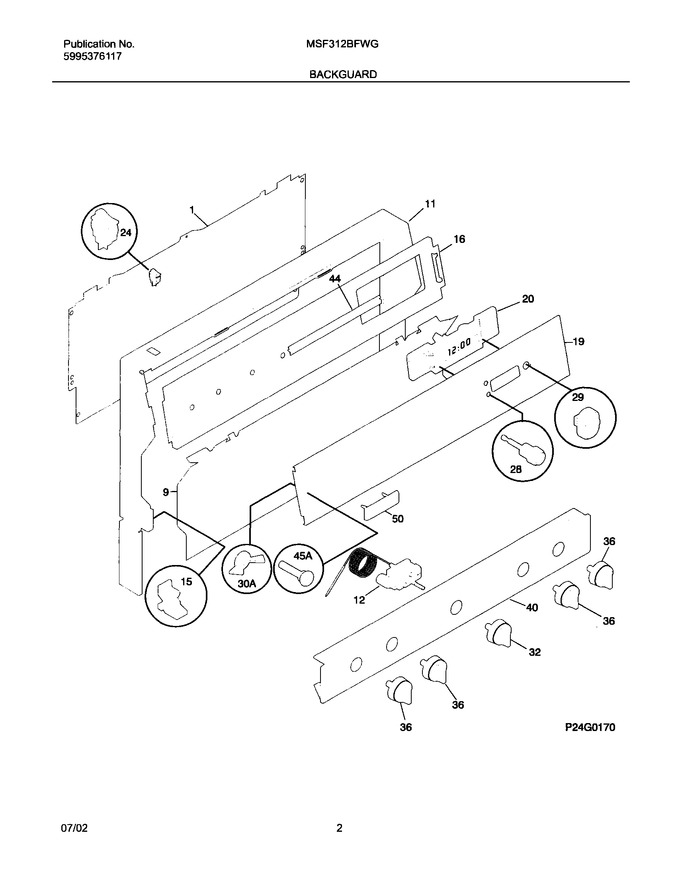

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303289640		Shield-backguard,rear Wall				$ 144.64
9	316043501		Trim-splasher,white		Appelez-nous	-
11	316083715		Trim,wrapper ,black		Appelez-nous	-
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	316042602		Plate, Instrument Mtg		Appelez-nous	-
19	316034126		Panel-backguard,black		Appelez-nous	-
28	5303272306		Button,clock Set ,black		Appelez-nous	-
29	5303272305		Button,clock/timer ,black				$ 38.80
32	316102304		Knob Thermostat,black				$ 71.47
35	3203077		End Cap,rh		Appelez-nous	-
36	316009008		Knob,top Valve ,black ,(4)				$ 54.86
40	319009214		Panel-manifold		Appelez-nous	-
42	316084300		Trim-vent		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
50	316096900		Bezel,nameplate ,black				$ 15.38
30A	316064300		Nut,nylon		Appelez-nous	-
35A	3203076		End Cap,lh		Appelez-nous	-
45A	316056902		Bolt,fastener ,nylon ,black		Appelez-nous	-
F12	5303935014		Thermostat,oven ,w/screws		Appelez-nous	-
F20	316096002		Clock/timer		Appelez-nous	-
F24	5304527841		Switch,oven Light ,black ,rocker   (Replaces: 316118100)			Immediately	$ 11.38
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303280590		Screw,thermostat ,(2)		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
