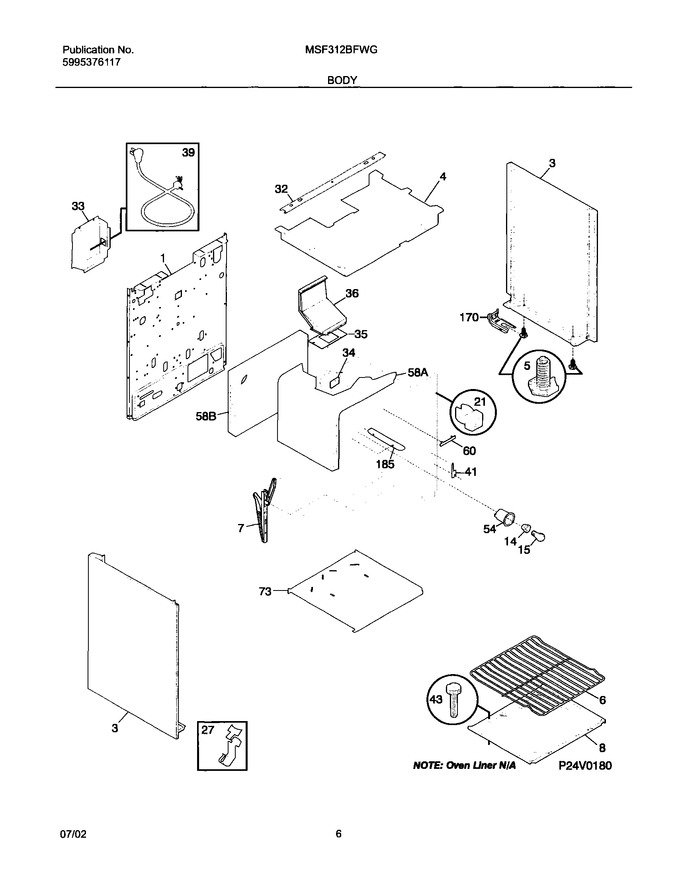

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316029416		Panel,main Back		Appelez-nous	-
3	316081035		Panel-bodyside,white ,lh		Appelez-nous	-
3	316081034		Panel-bodyside,white ,rh		Appelez-nous	-
4	316067206		Burner Box		Appelez-nous	-
5	316129200		Screw,leveling ,plastic ,with Stop				$ 10.92
6	316067902		Rack,oven			Immediately	$ 103.10
7	316007001		Hinge,oven Door ,(2)				$ 234.55
8	5303300701		Panel-oven Bottom		Appelez-nous	-
14	316116400		Receptacle,oven Light			Immediately	$ 56.10
21	3014099		Spacer,bodyside				$ 3.62
27	5303284616		Clip,thermo Bulb Mtg				$ 9.86
32	316107503		Channel,burner Support		Appelez-nous	-
33	316055601		Shield-spark Module		Appelez-nous	-
34	3018607		Plate,cover				$ 10.50
35	316542102		Gasket,flue   (Replaces: 316116600)				$ 12.13
36	3131931		Flue		Appelez-nous	-
41	3131570		Cover Hinge Cutout				$ 7.35
43	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
54	5303271606		Housing,oven Light		Appelez-nous	-
55	5304403185		Shield-flue		Appelez-nous	-
73	316109902		Base,low Broil				$ 131.25
170	316116000		Screw`concrete Tpg `1.75 Inch ,anti-tip Brkt				$ 12.89
170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
170	316112005		Anti-tip Kit,w/bracket,screw   (Replaces: 5303935180)			Immediately	$ 18.91
170	316112500		Template,anti-tip				$ 3.55
185	316112900		Shield,thermo Bulb		Appelez-nous	-
58A	3017142		Insulation, Oven Wrapper				$ 193.50
58B	3203541		Insulation, Oven Back		Appelez-nous	-
F15	5300067016		Light Bulb/lamp, Incand, Oven, 250 V		Appelez-nous	-
F39	316047600		Cord-electric Power		Appelez-nous	-
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	316064600		Support,oven Bottom				$ 18.95
NI	316001220		Wiring Harness,main		Appelez-nous	-
NI	316056500		Shield-wire		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	5303321321		Paint,touch-up ,black   (Replaces: 5303305345)			Immediately	$ 21.97
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
