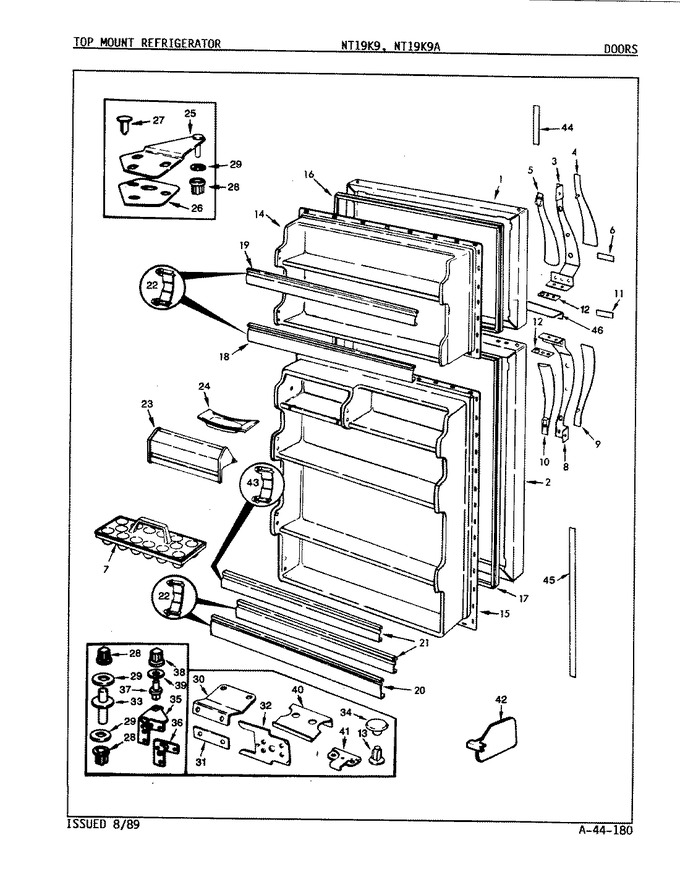

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60033-16-AM		Outer Panel		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	60032-54-AM		Outer Panel		Appelez-nous	-
3	66255-3		Door Handle		Appelez-nous	-
4	68016-5		Handle Insert, Front		Appelez-nous	-
4	68017-3		Insert, Vinyl Clad		Appelez-nous	-
5	9986-112		Screw		Appelez-nous	-
5	60445-4		Insert, Handle (back)		Appelez-nous	-
6	60603-14		Insert, Handle		Appelez-nous	-
7	60066-1		Tray, Egg		Appelez-nous	-
8	9986-122		Screw		Appelez-nous	-
8	66255-4		Door Handle		Appelez-nous	-
9	56209-3		Clip, Stop Screw		Appelez-nous	-
9	68016-6		Handle Insert, Front		Appelez-nous	-
9	60123-2		Clip, Stop Screw		Appelez-nous	-
10	60445-4		Insert, Handle (back)		Appelez-nous	-
11	60603-13		Insert, Handle		Appelez-nous	-
12	60456-1		Shim		Appelez-nous	-
13	55782-6		Plug Button (almond)		Appelez-nous	-
14	65928-5		Liner, Frz. Door		Appelez-nous	-
15	65275-5		Screw		Appelez-nous	-
15	66601-5		Inner Panel		Appelez-nous	-
16	66199-5		Gasket, Frz. Door		Appelez-nous	-
17	WP70048-3		Gasket, F.f. Door   (Replaces: 66199-6)				$ 283.11
18	WP61003045		Trim, Frz Dr Shelf   (Replaces: 68375-1)				$ 129.55
19	WP61003045		Trim, Freezer Shelf   (Replaces: 68375-4)				$ 129.55
20	WP61003045		Trim   (Replaces: 68375-5)				$ 129.55
21	WP61003045		Trim, Freezer Shelf   (Replaces: 68375-4)				$ 129.55
22	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
23	66184-365		Door, Dairy		Appelez-nous	-
23	66184-366		Door, Dairy		Appelez-nous	-
24	29936-2		Tray, Butter		Appelez-nous	-
25	53709-18		Door Hinge, Upper		Appelez-nous	-
26	65031-1		Shim, Upper Hinge		Appelez-nous	-
27	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
28	66036-1		Bushing,top/center Hinge		Appelez-nous	-
29	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
29	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
30	60031-2		Door Hinge, Center		Appelez-nous	-
31	60034-1		Spacer, Center Hinge		Appelez-nous	-
32	60622-1		Tapping Plate		Appelez-nous	-
32	WP3-24838-048		Screw   (Replaces: 9986-107)				$ 7.00
33	60035-4		Pin, Center Hinge		Appelez-nous	-
34	56186-6		Plug Button, (almond)		Appelez-nous	-
35	403062-5		Screw		Appelez-nous	-
35	60630-8		Door Hinge, Lower		Appelez-nous	-
36	60626-1		Shim, Lower Hinge		Appelez-nous	-
37	53672-1		Pin, Lower Hinge		Appelez-nous	-
38	66034-1		Bushing, Lower Hinge				$ 19.76
39	54233-2		Washer		Appelez-nous	-
40	60030-1		Door Stop		Appelez-nous	-
41	60419-1		Door Stop		Appelez-nous	-
41	9986-108		Screw		Appelez-nous	-
42	64097-11		Organizer, Shelf		Appelez-nous	-
43	65246-1		Retainer				$ 5.04
44	60453-22		Handle Trim Extension		Appelez-nous	-
45	60453-21		Handle Trim Extension		Appelez-nous	-
46	495042-900		Plug Button		Appelez-nous	-
