SELECT A DIAGRAM

01 - Chest Of Drawers


02 - Doors

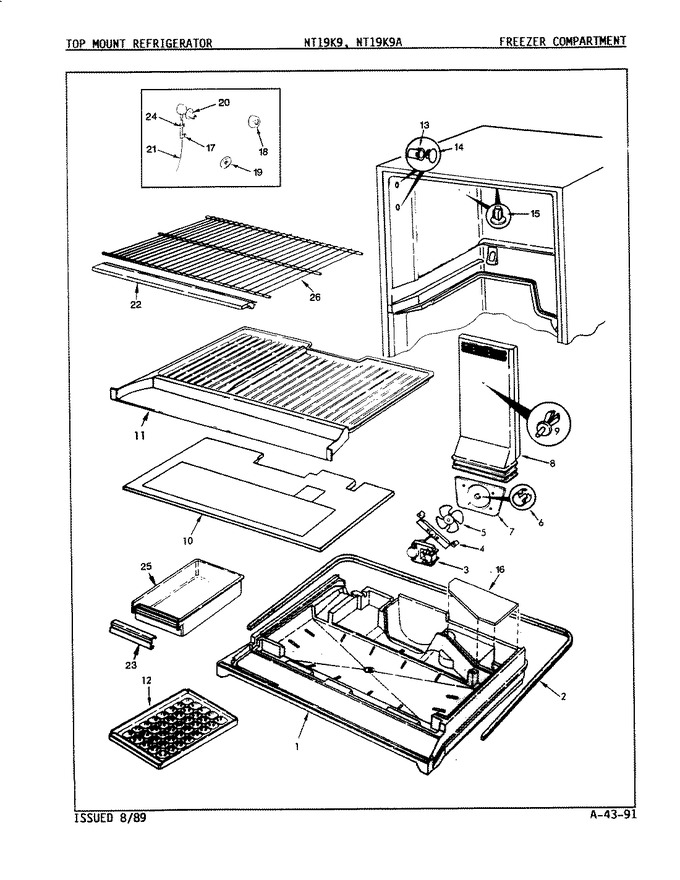

03 - Freezer Compartment


04 - Fresh Food Compartment


05 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	66606-1		Tray, Styrofoam Mullion		Appelez-nous	-
2	66325-5		Seal		Appelez-nous	-
3	54482-11		Motor		Appelez-nous	-
3	60565-1		Wire Harness		Appelez-nous	-
3	29675-30		Ground Wire		Appelez-nous	-
3	406062-1		Screw		Appelez-nous	-
4	400015-12		Screw		Appelez-nous	-
4	64856-1		Bracket, Fan Motor		Appelez-nous	-
5	53707-1		Blade, Evaporator Fan		Appelez-nous	-
6	420092-900		Washer, Spring		Appelez-nous	-
7	60608-2		Orifice, Fan Blade		Appelez-nous	-
8	66044-3		Tunnel, Air		Appelez-nous	-
9	66045-1		Pin, Air Tunnel Mtg.		Appelez-nous	-
10	66403-1		Cover, Evaporator		Appelez-nous	-
11	66479-1		Bottom, Frz.		Appelez-nous	-
12	WP61002140		Ice Cube Tray   (Replaces: 60112-1)				$ 18.23
13	60313-1		Cup, Shelf		Appelez-nous	-
14	60321-1		Plug		Appelez-nous	-
16	66480-1		Cover, Plenum		Appelez-nous	-
17	53616-8		Clamp, Tube		Appelez-nous	-
18	68187-1		Cap, Connector		Appelez-nous	-
19	68387-1		Cap, Grommet		Appelez-nous	-
20	68307-1		Grommet, Water Entry		Appelez-nous	-
21	WPB5705307		Tubing, Valve To Grommet   (Replaces: 67579-7)				$ 11.19
22	68136-23		Trim, Frz. Shelf		Appelez-nous	-
23	60132-100		Trim, Handle Pan		Appelez-nous	-
24	WPM0114003		Clamp, Spring   (Replaces: 60333-4)				$ 9.95
25	67557-1		Plug Button		Appelez-nous	-
25	60653-1		Pan, Ice		Appelez-nous	-
25	67054-1		Anchor Screw		Appelez-nous	-
26	66101-1		Stud, Shelf		Appelez-nous	-
26	60438-17		Shelf		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
