SELECT A DIAGRAM

01 - Chest Of Drawers

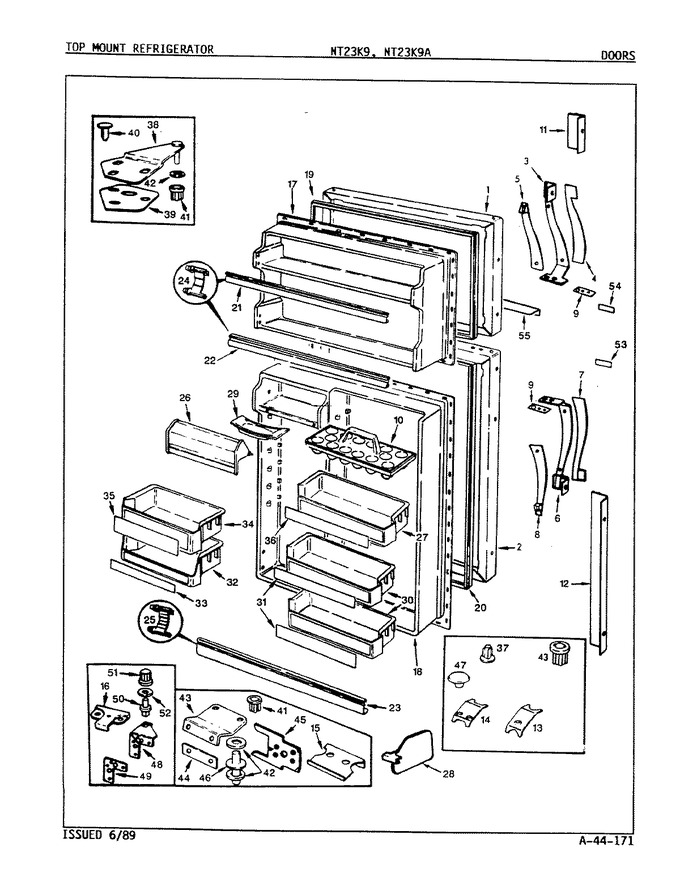

02 - Doors


03 - Freezer Compartment


04 - Fresh Food Compartment


05 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60033-12-WW		Outer Panel		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	60032-58-WW		Outer Panel		Appelez-nous	-
3	68017-2		Insert, Vinyl Clad		Appelez-nous	-
3	66255-3		Door Handle		Appelez-nous	-
4	68016-3		Handle Insert, Front		Appelez-nous	-
5	60445-3		Insert, Handle (back)		Appelez-nous	-
5	9986-112		Screw		Appelez-nous	-
6	68017-2		Insert, Vinyl Clad		Appelez-nous	-
6	66255-4		Door Handle		Appelez-nous	-
7	68016-4		Insert		Appelez-nous	-
8	60445-3		Insert, Handle (back)		Appelez-nous	-
9	60456-1		Shim		Appelez-nous	-
10	60066-1		Tray, Egg		Appelez-nous	-
11	60453-20		Trim, Handle Extension		Appelez-nous	-
12	60453-19		Trim Extension		Appelez-nous	-
13	56209-3		Clip, Stop Screw		Appelez-nous	-
14	9986-122		Screw		Appelez-nous	-
14	60123-2		Clip, Stop Screw		Appelez-nous	-
15	60030-1		Door Stop		Appelez-nous	-
16	9986-108		Screw		Appelez-nous	-
16	60419-1		Door Stop		Appelez-nous	-
17	65936-4		Liner, Door		Appelez-nous	-
18	66526-3		Inner Panel		Appelez-nous	-
18	65275-5		Screw		Appelez-nous	-
19	66199-7		Gasket, Door		Appelez-nous	-
20	66199-8		Gasket, Door		Appelez-nous	-
21	WP61003045		Trim   (Replaces: 68375-6)				$ 129.55
22	WP61003045		Trim   (Replaces: 68375-6)				$ 129.55
23	68376-4		Trim		Appelez-nous	-
24	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
25	65246-1		Retainer				$ 5.04
26	66184-367		Door, Dairy		Appelez-nous	-
26	66184-365		Door, Dairy		Appelez-nous	-
27	60037-53		Pick-off Shelf		Appelez-nous	-
28	66645-6		Organizer Package		Appelez-nous	-
29	29936-2		Tray, Butter		Appelez-nous	-
30	60037-54		Pick-off Shelf		Appelez-nous	-
31	68130-63		Trim, Pick-off Shelf		Appelez-nous	-
32	60037-51		Pick-off Shelf		Appelez-nous	-
33	68130-58		Insert, Pickoff Shelf		Appelez-nous	-
34	60037-52		Pick-off Shelf		Appelez-nous	-
35	68130-61		Trim, Pick-off Shelf		Appelez-nous	-
36	68130-59		Trim Pick-off Shelf		Appelez-nous	-
37	55782-1		Plug Button		Appelez-nous	-
38	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
38	53709-18		Door Hinge, Upper		Appelez-nous	-
39	65031-1		Shim, Upper Hinge		Appelez-nous	-
40	56144-13		Plug Button, Upper Hinge (wht)		Appelez-nous	-
41	66036-1		Bushing,top/center Hinge		Appelez-nous	-
42	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
42	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
43	60031-2		Door Hinge, Center		Appelez-nous	-
44	60034-1		Spacer, Center Hinge		Appelez-nous	-
45	WP3-24838-048		Screw   (Replaces: 9986-107)				$ 7.00
45	60622-1		Tapping Plate		Appelez-nous	-
46	60035-4		Pin, Center Hinge		Appelez-nous	-
47	56186-10		Plug Button, (white)		Appelez-nous	-
48	60630-8		Door Hinge, Lower		Appelez-nous	-
48	403062-5		Screw		Appelez-nous	-
49	60626-1		Shim, Lower Hinge		Appelez-nous	-
50	53672-1		Pin, Lower Hinge		Appelez-nous	-
51	66034-1		Bushing, Lower Hinge				$ 19.76
52	54233-2		Washer		Appelez-nous	-
53	60603-13		Insert, Handle		Appelez-nous	-
54	60603-14		Insert, Handle		Appelez-nous	-
55	66651-3		Trim, Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
