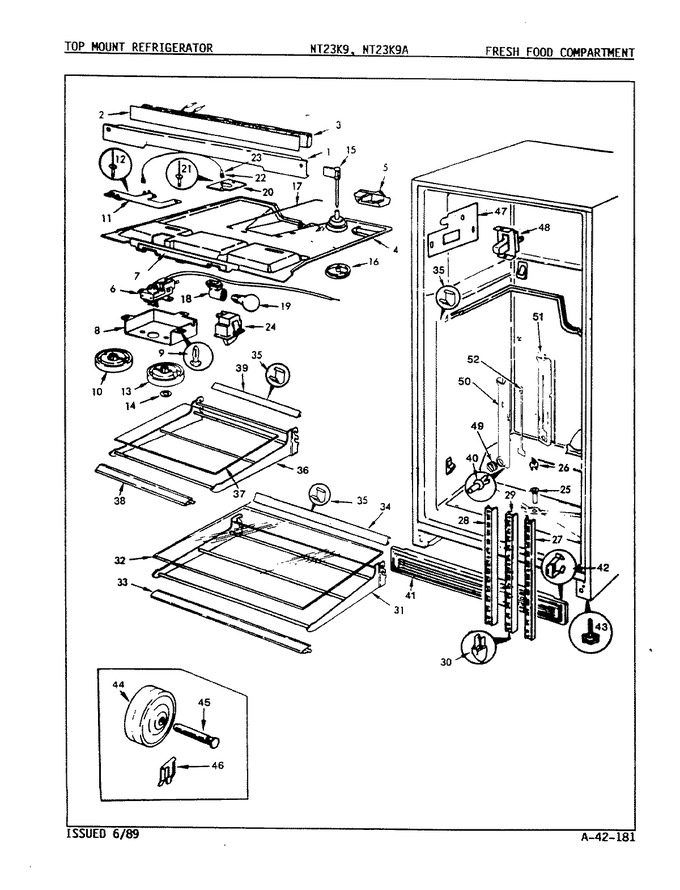

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9986-117		Screw		Appelez-nous	-
1	65797-3-WW		Divider, Mullion (wht)		Appelez-nous	-
2	60105-9		Heater Wire		Appelez-nous	-
3	60560-2		Wire Harness		Appelez-nous	-
3	60140-3		Insulation		Appelez-nous	-
4	60085-56		Top, F.f. Compartment		Appelez-nous	-
5	60120-2		Deflector		Appelez-nous	-
6	WP68601-6		Control, Temperature   (Replaces: 66545-1)			Immediately	$ 233.80
6	406013-1		Screw		Appelez-nous	-
7	60571-59		Insert, Trim Escutcheon		Appelez-nous	-
8	60083-1		Cover, Temperature Control		Appelez-nous	-
9	28013-2		Rivet, Air Tunnel		Appelez-nous	-
10	68303-3		Knob, Control		Appelez-nous	-
11	60147-1		Bracket, Control		Appelez-nous	-
12	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
13	68303-4		Knob, Control Frz		Appelez-nous	-
14	420092-900		Washer, Spring		Appelez-nous	-
15	68419-1		Damper, Frz Control		Appelez-nous	-
16	60082-3		Crank, Frzr Control		Appelez-nous	-
17	60078-4		Rod, Frzr Control		Appelez-nous	-
18	60577-1		Socket, Light		Appelez-nous	-
19	40A15		Bulb, Light (40 Watt)   (Replaces: 31956)			Immediately	$ 1.98
20	60147-2		Bracket, Light Socket		Appelez-nous	-
21	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
22	29675-22		Ground Wire		Appelez-nous	-
23	29675-28		Ground Wire		Appelez-nous	-
24	W11384469		Switch, Light   (Replaces: 55732-1)			Immediately	$ 33.51
25	54531-8		Grommet		Appelez-nous	-
26	400037-28		Screw		Appelez-nous	-
26	65039-1		Cap, Drain Tube		Appelez-nous	-
27	68238-1		Rail, Cantilever Shelf		Appelez-nous	-
28	68238-2		Rail, Cantilever Shelf		Appelez-nous	-
29	68238-3		Rail, Cantilever Shelf		Appelez-nous	-
30	60340-1		End Cap, Center Rail		Appelez-nous	-
31	60570-26		Frame, Shelf		Appelez-nous	-
31	60570-32		Frame, Shelf		Appelez-nous	-
32	66604-26		Glass, Cantilever Shelf		Appelez-nous	-
33	68136-36		Trim, Cnatilever Shelf		Appelez-nous	-
34	65276-27		Trim, Rear-full		Appelez-nous	-
35	66333-1		Clip, Shelf Trim		Appelez-nous	-
36	60570-20		Frame, Shelf		Appelez-nous	-
37	66604-27		Glass, Shelf		Appelez-nous	-
38	68136-26		Trim, Cantilever Shelf		Appelez-nous	-
39	65276-36		Trim, Rear-1/2 Shelf		Appelez-nous	-
41	60138-8		Kickplate		Appelez-nous	-
41	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
42	60100-1		Clip, Kickplate				$ 5.85
43	W11117769		Leg, Leveling   (Replaces: 6012-8)			Immediately	$ 16.61
44	29834-2		Wheel		Appelez-nous	-
45	29835-2		Pin, Wheel		Appelez-nous	-
46	60216-1		Clip		Appelez-nous	-
47	60583-1		Bracket, Switch		Appelez-nous	-
48	9986-117		Screw		Appelez-nous	-
48	60585-1		Switch, Mullion Heater		Appelez-nous	-
49	68282-1		Bellows, Air Tunnel		Appelez-nous	-
50	68285-3		Cover, Air Tunnel		Appelez-nous	-
51	68289-2		Insulation, Air Tunnel		Appelez-nous	-
52	W11233072		Screw   (Replaces: 400015-28)			Immediately	$ 12.62
52	68290-3		Damper, Air Tunnel		Appelez-nous	-
