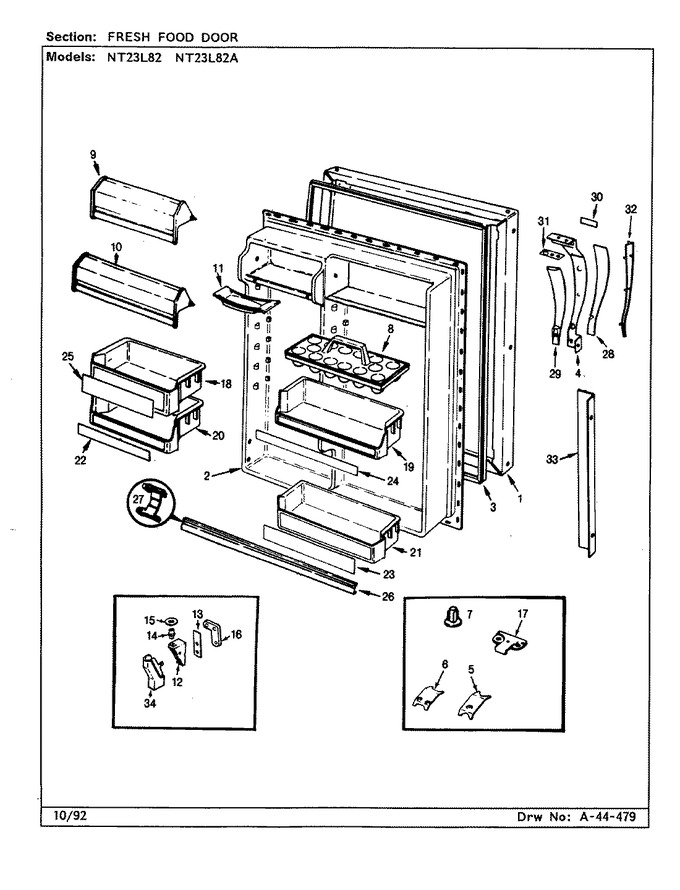

NT23L82A (BOM: CF99A) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	RA95056-1	Door Insulation Kit	Appelez-nous	-
1	68475-1-AM	Panel, F.f. Door (alm)	Appelez-nous	-
2	68721-1	Inner Panel	Appelez-nous	-
2	65275-5	Screw	Appelez-nous	-
4	66255-4	Door Handle	Appelez-nous	-
4	65275-57	Screw	Appelez-nous	-
5	56209-3	Clip, Stop Screw	Appelez-nous	-
6	60123-2	Clip, Stop Screw	Appelez-nous	-
7	55782-6	Plug Button (almond)	Appelez-nous	-
8	60066-1	Tray, Egg	Appelez-nous	-
9	66184-365	Door, Dairy	Appelez-nous	-
10	66184-367	Door, Dairy	Appelez-nous	-
11	29936-2	Tray, Butter	Appelez-nous	-
12	65275-51	Screw, Lower Hinge	Appelez-nous	-
12	68975-2	Hinge, Lower	Appelez-nous	-
13	69031-3	Shim	Appelez-nous	-
14	68977-1	Pin, Hinge	Appelez-nous	-
15	67483-3	Washer, Lower Hinge (Replaces: 67483-2)		Immediately	$ 45.86
16	67874-1	Tapping Plate, Lower Hinge	Appelez-nous	-
17	68987-1	Stop, Door	Appelez-nous	-
17	65275-48	Screw	Appelez-nous	-
18	60037-51	Pick-off Shelf	Appelez-nous	-
19	60037-53	Pick-off Shelf	Appelez-nous	-
20	60037-52	Pick-off Shelf	Appelez-nous	-
21	60037-54	Pick-off Shelf	Appelez-nous	-
22	68130-59	Trim Pick-off Shelf	Appelez-nous	-
23	68130-63	Trim, Pick-off Shelf	Appelez-nous	-
24	68130-61	Trim, Pick-off Shelf	Appelez-nous	-
25	68130-58	Insert, Pickoff Shelf	Appelez-nous	-
26	WP61003045	Trim, Shelf (Replaces: 68375-21)			$ 129.55
27	WP65245-1	Retainer, Shelf Trim (Replaces: 65245-1)			$ 9.39
28	68016-6	Handle Insert, Front	Appelez-nous	-
29	60445-4	Insert, Handle (back)	Appelez-nous	-
30	60603-14	Insert, Handle	Appelez-nous	-
31	65275-53	Screw	Appelez-nous	-
31	68776-1	Shim Handle----na	Appelez-nous	-
32	68017-3	Insert, Vinyl Clad	Appelez-nous	-
33	60453-21	Handle Trim Extension	Appelez-nous	-
34	68978-1	Cover, Lower Hinge (blk)	Appelez-nous	-
