SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit


06 - Shelves & Accessories


07 - Unit Compartment & System

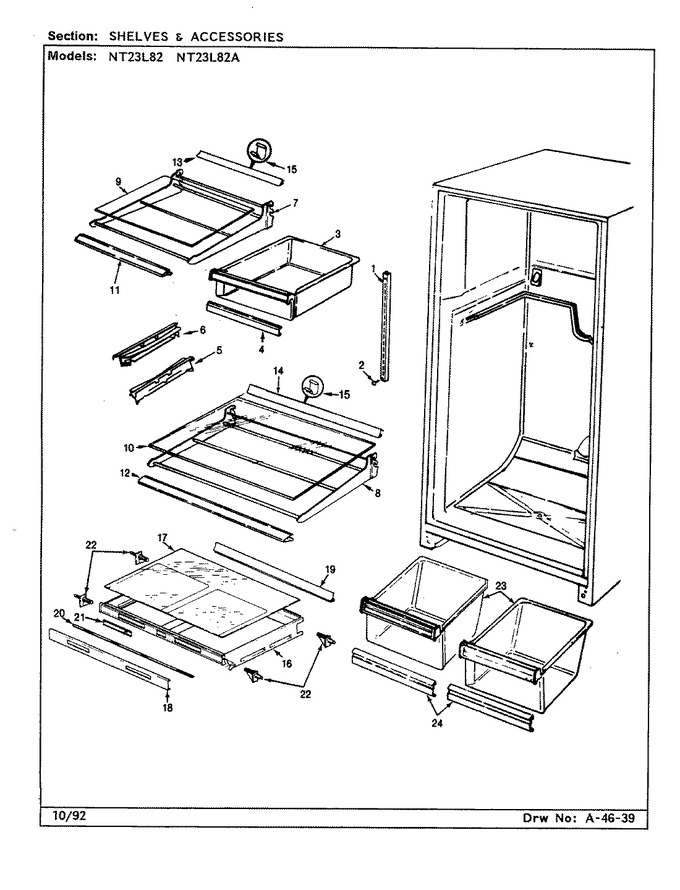

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60096-7		Rail, Shelf Support (lt)		Appelez-nous	-
1	60096-8		Rail, Shelf Support (rt)		Appelez-nous	-
1	60096-9		Rail, Shelf Support (center)		Appelez-nous	-
2	400037-28		Screw		Appelez-nous	-
3	66524-22		Pan, Meat		Appelez-nous	-
4	66230-13		Trim		Appelez-nous	-
5	66814-2		Rail, Meat Pan (rt)		Appelez-nous	-
6	66813-2		Slide Rail,meat & Deli Pan		Appelez-nous	-
7	60570-41		Frame, Shelf		Appelez-nous	-
8	60570-48		Frame, Shelf		Appelez-nous	-
9	66604-27		Glass, Shelf		Appelez-nous	-
9	66604-35		Shelf, Meat		Appelez-nous	-
10	66604-26		Glass, Cantilever Shelf		Appelez-nous	-
11	68136-49		Shelf Trim		Appelez-nous	-
12	68136-53		Trim, Full Shelf (front)		Appelez-nous	-
13	65276-36		Trim, Rear-1/2 Shelf		Appelez-nous	-
14	65276-27		Trim, Rear-full		Appelez-nous	-
15	66333-1		Clip, Shelf Trim		Appelez-nous	-
16	69057-3		Shelf, Crisper		Appelez-nous	-
17	68743-15		Shelf, Crisper		Appelez-nous	-
18	68744-5		Trim		Appelez-nous	-
19	68798-2		Trim		Appelez-nous	-
20	68797-2		Seal		Appelez-nous	-
21	69542-1		Slide, Control		Appelez-nous	-
22	68836-1		Stud, Crisper Support		Appelez-nous	-
23	68223-515		Pan, Crisper		Appelez-nous	-
24	66230-15		Trim		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
