SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door

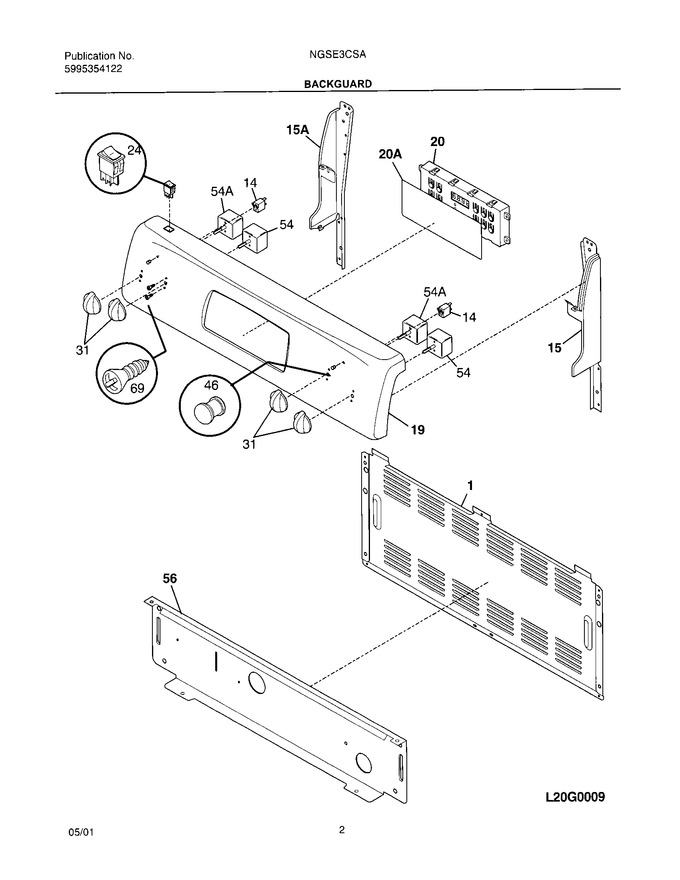

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316239900		Shield,backguard ,rear Wall				$ 93.03
14	316022503		Light/lamp,indicator ,surface ,250 V			Immediately	$ 70.16
15	316220202		Support,backguard ,white ,rh		Appelez-nous	-
15	316220203		Support,backguard ,white ,lh		Appelez-nous	-
19	316232634		Panel,backguard ,white		Appelez-nous	-
20	316220804		Overlay,clock ,white			Immediately	$ 42.53
20	316222902		Clock/timer,electronic		Appelez-nous	-
24	5304527842		Switch-oven Light,rocker ,white   (Replaces: 316246000)			Immediately	$ 16.13
31	316223000		Knob,control ,white			Immediately	$ 72.80
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	5303935086		Switch,infinite ,small Element   (Replaces: 316021500)			Immediately	$ 51.95
54	316436001		Switch,infinite ,large Element   (Replaces: 316021501)			Immediately	$ 51.68
56	316234007		Shield-backguard,white ,inner		Appelez-nous	-
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.12
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316248900		Spacer,shield ,rear Wall		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
